| Available Models |

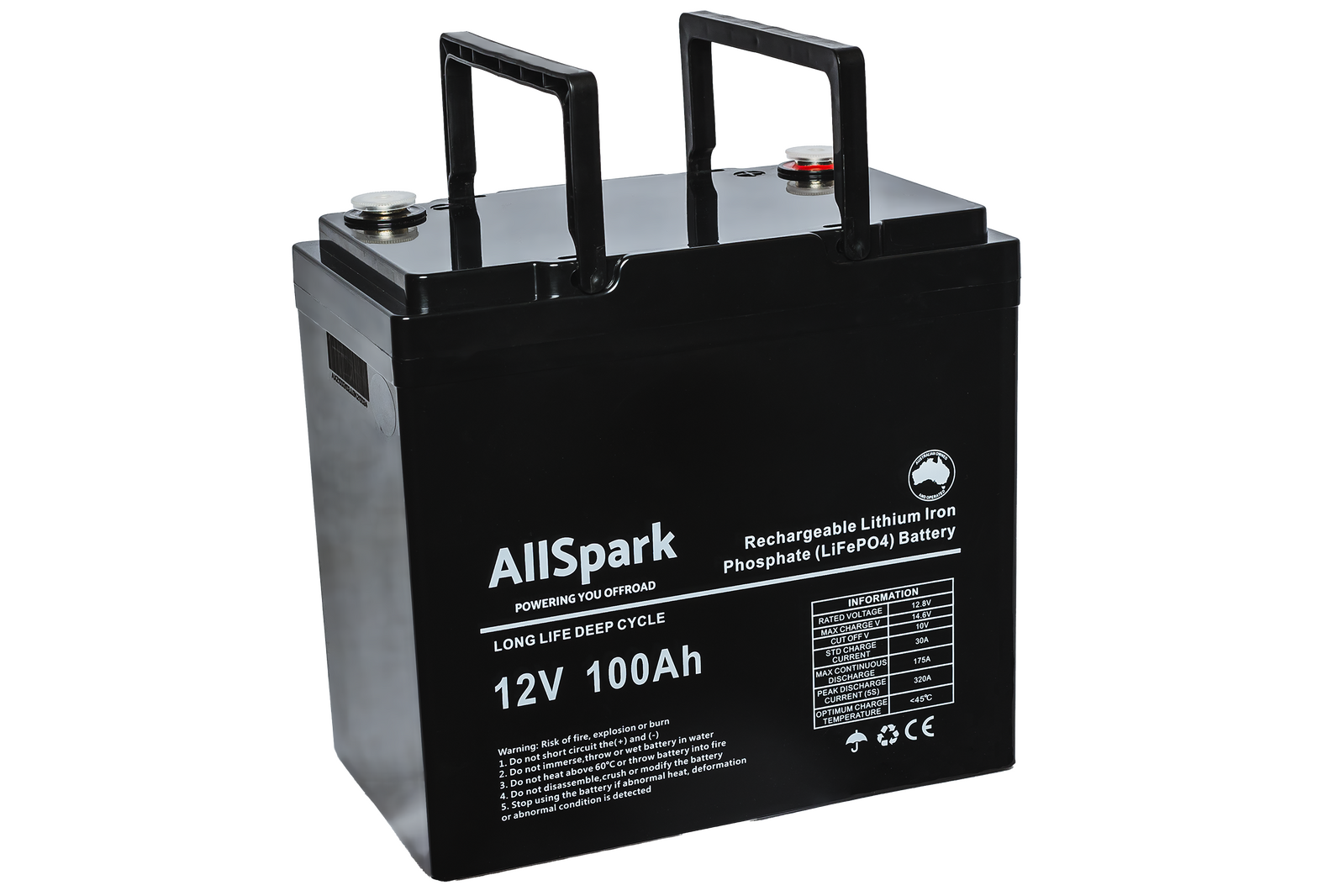

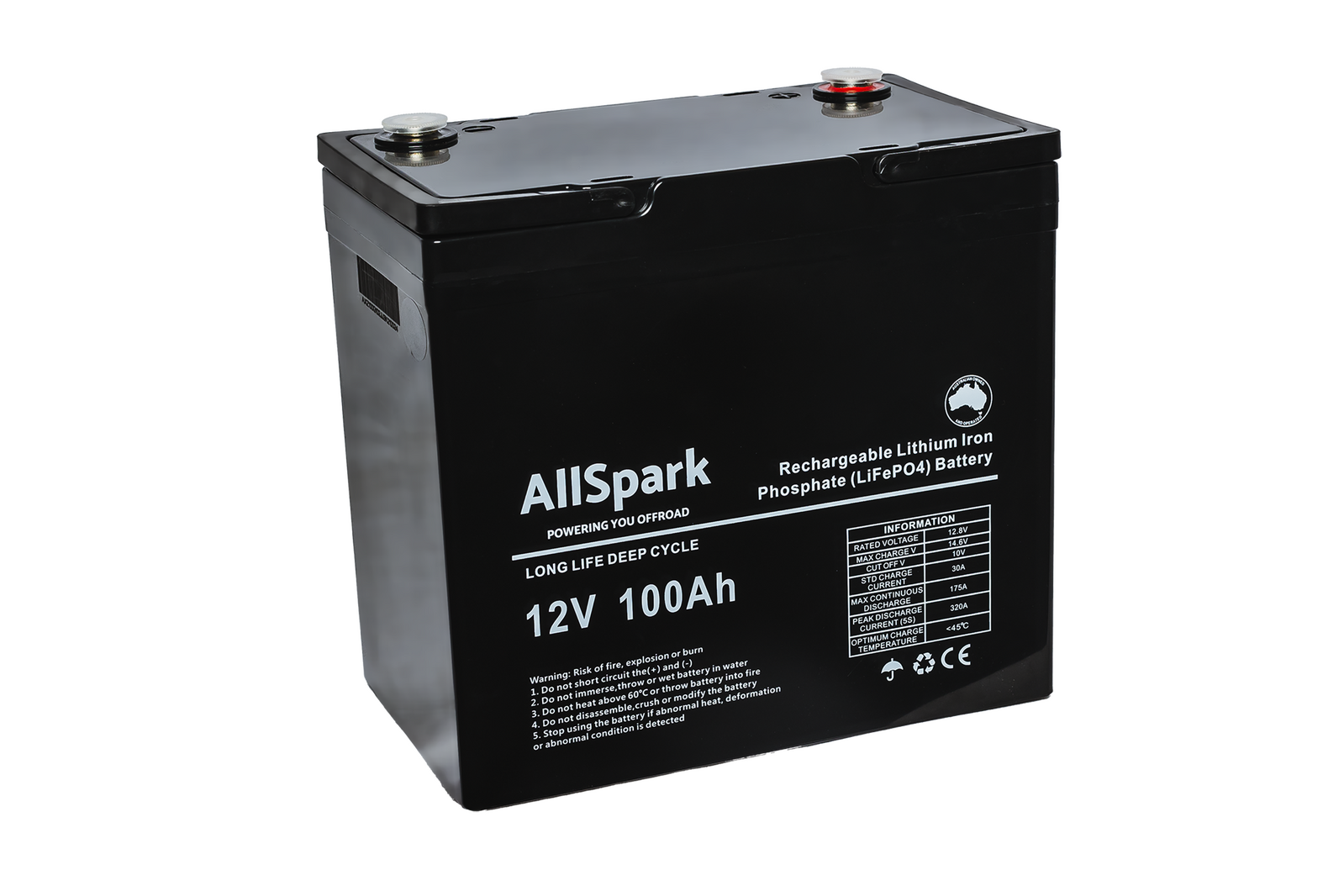

AS-10012BATLI175320G2 (12.8V 100Ah)AS-15012BATLI175320 (12.8V 150Ah)AS-20012BATLI200500G2 (12.8V 200Ah)AS-25012BATLI200500 (12.8V 250Ah)AS-30012BATLI300600 (12.8V 300Ah)AS-12024BATLI175320 (25.6V 120Ah)AS-20024BATLI200500 (25.6V 200Ah) |
| Capacity Range |
100-300 Amp Hours (C5) |
| Watt Hours |
1,280-5,120 Wh |
| Rated Voltage Options |
12.8V / 25.6V |
| Maximum Charge Voltage |
14.6V / 29.2V |
| Float Voltage |
13.6V / 27.2V |
| Low Voltage Cutoff |
10V / 20V |
| Maximum Series Voltage |
24V / 48V |
| Rapid Charge Current |
100-200A (1C) for 30 mins |
| Recommended Charge Current |
20-150A (varies by model) |
| Charge Profile |
CC/CV |
| Maximum Inverter Size |
2000-4000W (model dependent) |
| Maximum Continuous Discharge |
175-300A |
| Peak Discharge |
320-600A (10 seconds) |
| 80% Depth of Discharge |
> 3200+ cycles (85% residual capacity) |
| 60% Depth of Discharge |
> 4200+ cycles |
| 40% Depth of Discharge |
> 5000+ cycles |
| Optimum Charging Temperature |
< 45°C |
| Operating Temperature Range |
-20°C to +60°C |
| Storage Temperature Range |
-40°C to +125°C |
| Case Material |
ABS Plastic |
| Dimensions Range |
229-520mm (L) x 138-265mm (W) x 208-247mm (H) (varies by model) |
| Weight Range |
9.5-42kg |
| IP Rating |
IP65 |
| Cell Type |
Prismatic |
| Cell Configurations |
4S1P, 4S2P, 8S1P (model dependent) |
| Cell Capacity |
3.2V @ 50-300Ah |
| Cell Casing |
Nickel Plated steel |
| Cell Balancing |
3.65V ±0.025V, 35mA ±5mA |
| Over Discharge Protection |
2.5V ±0.025V, releases at 10.5V+ & 1A+ |
| Over Charge Protection |
3.75V ±0.025V, 1-1.6s delay, releases at 3.6V ±0.0625V |
| Over Current Protection |
200-330A (10s delay), 320-500A (5-10s delay) |
| Short Circuit Protection |
200-400µs detection delay, auto-release on load removal |
| Internal Resistance |
≤20mΩ |
| Shipping Weight |
10.15kg |
| Shipping Dimensions |
295mm (W) x 205mm (H) x 285mm (L) |
| Shipping Volume |
0.017235375m³ |
| Brand |
AllSpark |
| Barcode |
0745178224659 |
