3mm Single Core Blue Auto Cable

$1.00

DESCRIPTION

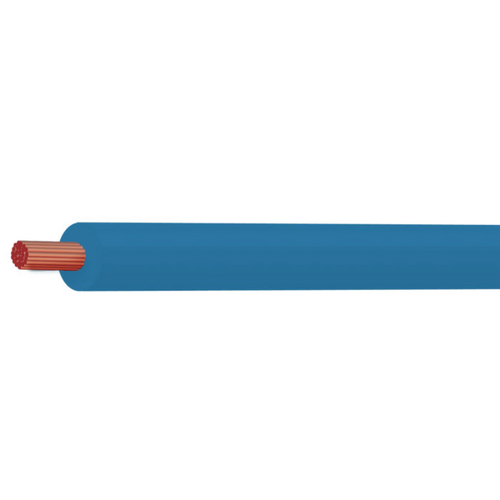

Tycab 3mm Single Core Blue Auto Cable

Click on Specifications Tab to see full cable specs

FEATURES

Applications - Battery and Starter Cable
Produced from the highest quality Oxygen Free Plain Copper Wire in Australia
3mm to 6mm auto cables - single red or black or twin core
8B&S to 4B&S in Single core Red or Black and Twin core options
2B&S to 000B&S in Single core Red or Black
V90 PVC Insulation to AX/NZS 3808
Sold by the meter (bulk rolls also available - contact us for pricing)

SPECIFICATIONS

CABLE, CONDUITS AND LUG SIZING CHART

AWG/B&S	Twin Core					Single Core					Copper Diameter (mm) per core	Surface Area (mm²) per core	Lug size (mm²)
	Current Rating (Amps)	Circuit Protection Max (Amps)	Conduit Size (mm)	Heat Shrink (mm)		Current Rating (Amps)	Circuit Protection Max (Amps)	Conduit Size (mm)	Heat Shrink (mm)
	Current Rating (Amps)	Circuit Protection Max (Amps)	Conduit Size (mm)	Without Conduit	With Conduit	Current Rating (Amps)	Circuit Protection Max (Amps)	Conduit Size (mm)	Without Conduit	With Conduit
2mm Auto Industry Equivalent	10	7.5	5	5	10	N/A					1.1	0.56	Red crimps
3mm Auto Industry Equivalent	16	10	5	5	10	20	15	5	2.5	10	1.40	1.13	Red/Blue crimps
4mm Auto Industry Equivalent	22	15	7	7	10	28	25	5	2.5	10	1.30	1.84	Blue crimps
6mm Auto Industry Equivalent	38	30	10	10	13	48	40	7	5	10	3.10	4.59	Yellow crimp/6mm lug
8 B&S	59	50	13	13	20	74	60	7	7	10	3.70	7.71	10
6 B&S	82	70	16	16	25	103	80	7	10	10	5.00	13.50	16
4 B&S	108	100	20	20	25	135	100	10	10	13	6.10	20.26	25
2 B&S	Single core only					188	150	13	13	20	7.90	32.07	35
0 B&S						246	200	13	16	20	9.30	49.00	50
00 B&S						292	250	16	16	25	11.10	64.15	70
000 B&S						335	300	16	20	25	12.40	83.19	95
This cable chart is provided for information purposes only. It is based on the published information for Tycab Australia Automotive cables which we use soley.
