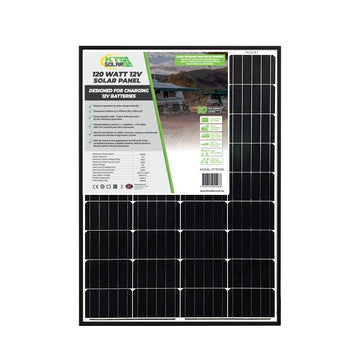

KT Solar 120W 12V Monocrystalline Solar Panel

KT Solar 120W 12V Monocrystalline Solar Panel KT Solar

KT Solar 120W 12V Monocrystalline Solar Panel

SKU KT70728

$199.00

Weight: 8.5 kg
Panel Dimensions: 1195 × 541 × 30 mm
Frame Material: Anodised Aluminium Alloy

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

Single-cell monocrystalline silicon construction for best-in-class conversion efficiency
120W peak power output rated at Standard Test Conditions (STC: 1000W/m², 25°C, AM1.5)
Nominal system voltage of 12V — compatible with standard caravan and RV battery banks
Tempered, low-iron toughened glass face with anti-reflective coating resists impact and UV degradation
Anodised aluminium alloy frame provides lightweight structural rigidity and corrosion resistance
IP65-rated weatherproof junction box protects internal connections from dust, rain, and humidity
MC4-compatible output connectors for tool-free connection to solar regulators and extension cables
Pre-drilled mounting holes on aluminium frame for easy rooftop or bracket mounting
Long-term performance — monocrystalline cells maintain stable output over 25+ year lifespan

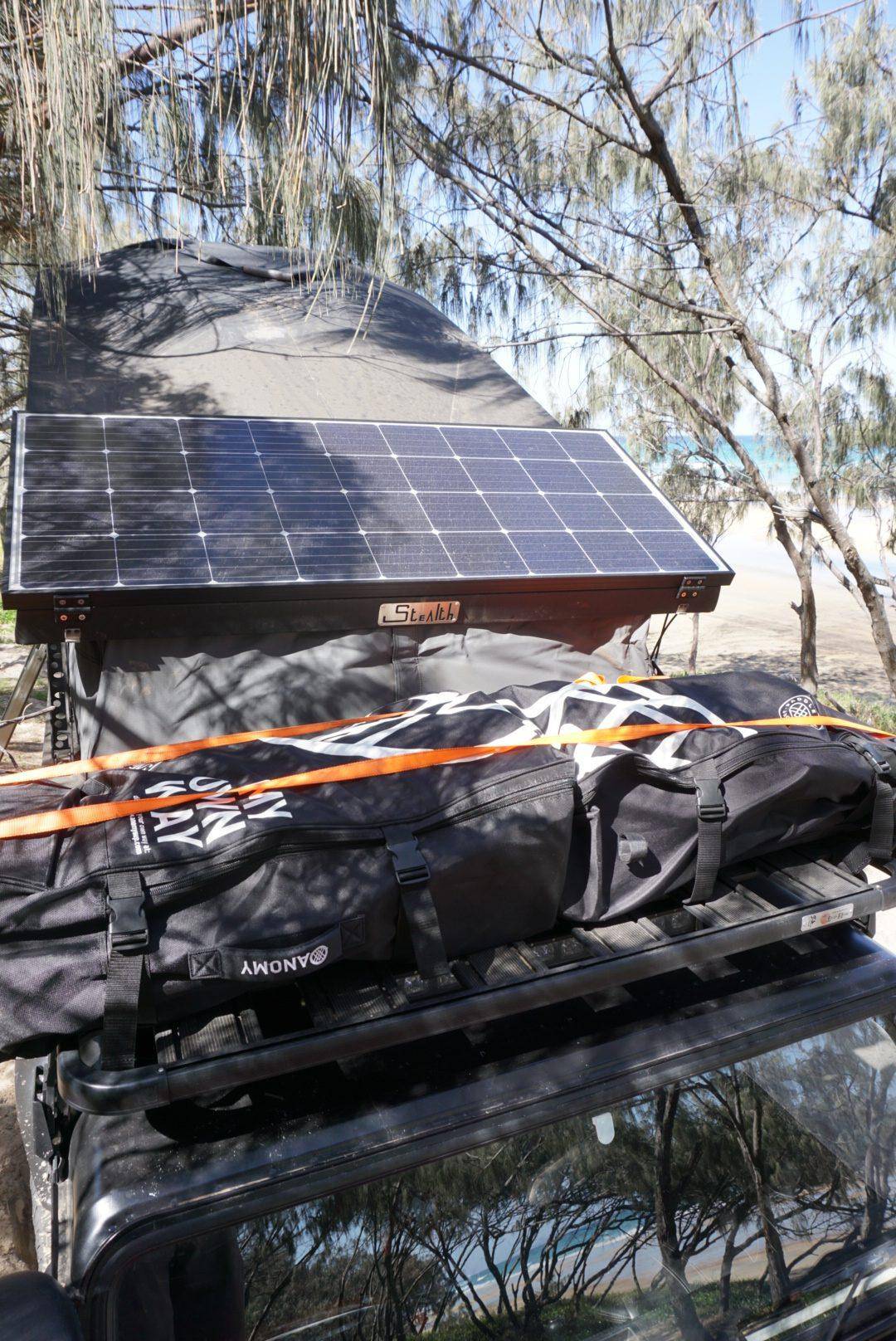

Suitable for permanent roof-mount on caravans, campervans, motorhomes, or portable flat-panel use

Overview

The KT Solar 120W 12V Monocrystalline Solar Panel (KT70728) delivers high-efficiency solar charging for caravans, motorhomes, camper trailers, and off-grid setups across Australia. Built with single-cell monocrystalline silicon cells — the most efficient solar cell technology available — this panel achieves superior energy conversion even in the variable light conditions common on Australian touring routes. The anodised aluminium frame and tempered glass face are engineered to withstand the harshest outdoor conditions, from the blazing outback sun to coastal salt air, ensuring long-term reliable power generation on every adventure.

Designed specifically for the demands of Australian caravanners and 4WD travellers, this 120W panel is an ideal choice for keeping your 12V house batteries topped up while free-camping, bush camping, or on extended off-road trips where mains power simply isn't available. It pairs seamlessly with most MPPT and PWM solar regulators and produces enough daily output to run lighting, a 12V fridge, USB charging, and other caravan or RV essentials. Whether you're roof-mounting on a caravan or laying flat on a camp table, the pre-drilled mounting holes and junction box with MC4 connectors make for a straightforward DIY installation.

Key Features

High-efficiency monocrystalline silicon cells for maximum power output per square metre
Rated 120W peak output at 12V — ideal for caravan, RV, and off-grid battery charging
Anodised aluminium alloy frame with IP65-rated junction box for all-weather durability
Compatible with standard MPPT and PWM solar charge controllers via MC4 connectors
Pre-drilled mounting holes for straightforward rooftop or flat-surface installation

Delivery, returns & warranty

Shipping & Returns

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

12-month manufacturer warranty against defects in materials and workmanship.

Customer reviews

No reviews for the KT Solar 120W 12V Monocrystalline Solar Panel yet. Be the first.

Specifications

SKU / Model Number	KT70728
Brand	KT Solar
Peak Power Output (Pmax)	120W
Cell Type	Monocrystalline Silicon (Single Cell)
System Voltage	12V
Open Circuit Voltage (Voc)	21.6V
Maximum Power Voltage (Vmp)	18.0V
Short Circuit Current (Isc)	7.33A
Maximum Power Current (Imp)	6.67A
Panel Dimensions	1195 × 541 × 30 mm (L × W × H)
Weight	8.5 kg
Frame Material	Anodised Aluminium Alloy
Front Glass	3.2mm Tempered Low-Iron Glass with Anti-Reflective Coating
Junction Box Rating	IP65 Weatherproof
Output Connectors	MC4 Compatible
