135W Solar Panel Glass AllSpark

Name: 135W Solar Panel Glass AllSpark
Brand: AllSpark
SKU: AS-135SPGLG2
Price: 219.0 AUD
Availability: InStock

135W Solar Panel Glass AllSpark

$219.00

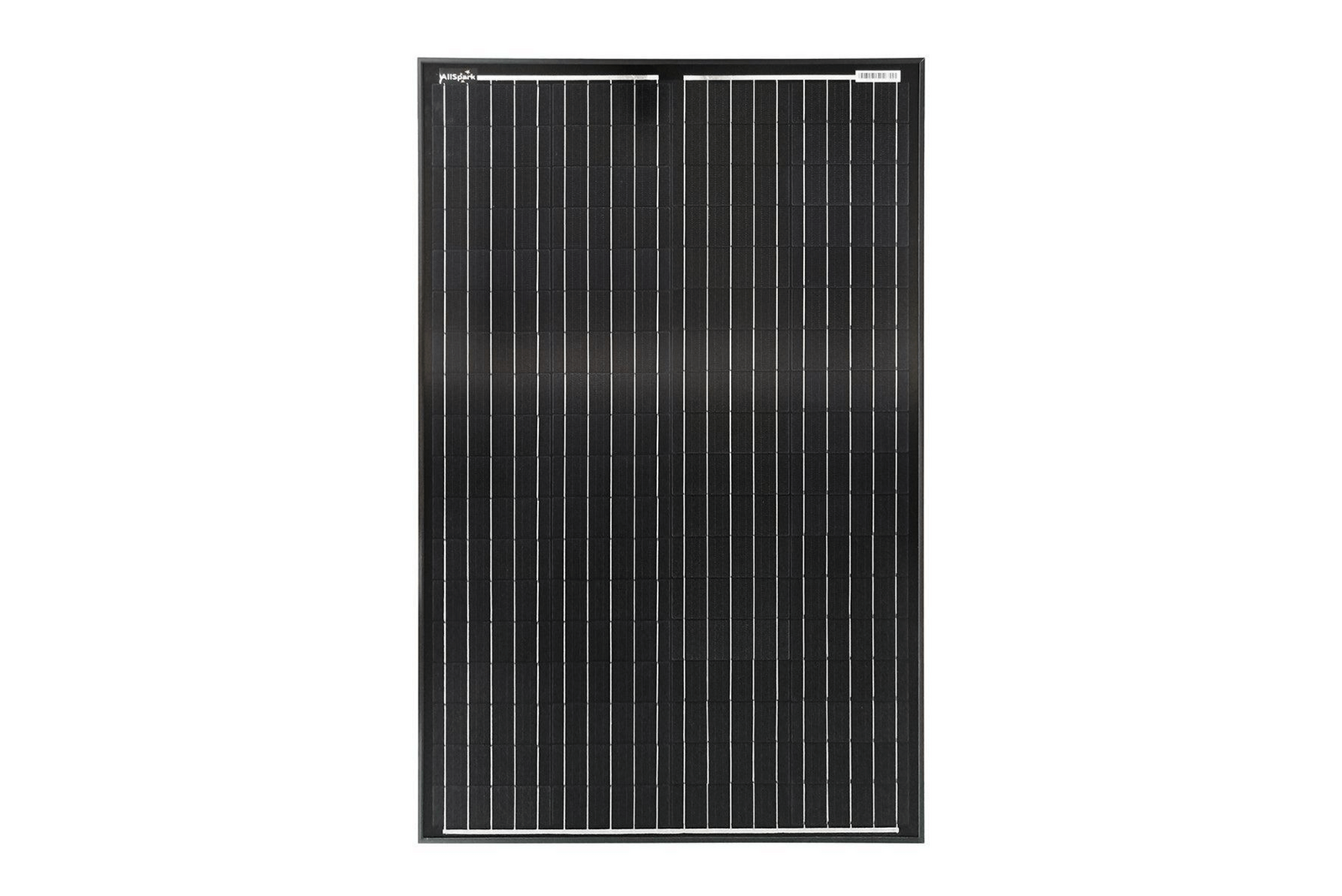

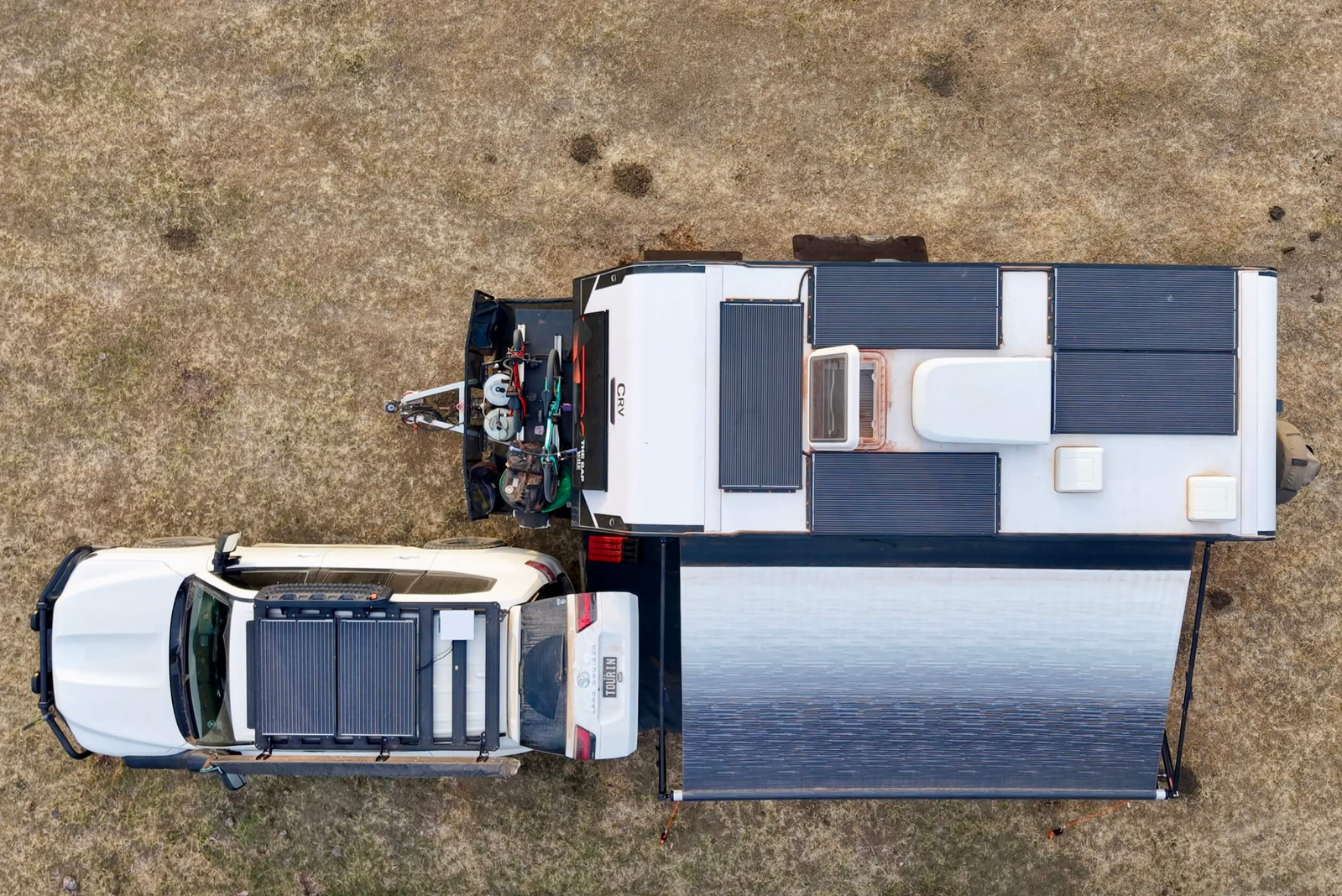

A 135W monocrystalline glass panel with 22.8% cell efficiency, built for a permanent roof install on a caravan, camper or canopy. It runs Vmp 20.5V at Imp 6.59A, with Voc 24.0V and Isc 6.91A.

Use the Isc figure when sizing fuses, cable and controller inputs — that is the number that matters for protection, not the wattage on the box. The panel carries a 10 year warranty against a 25 year service life.

Features

+

135W monocrystalline glass panel
22.8% cell efficiency
Vmp 20.5V, Imp 6.59A, Voc 24.0V, Isc 6.91A

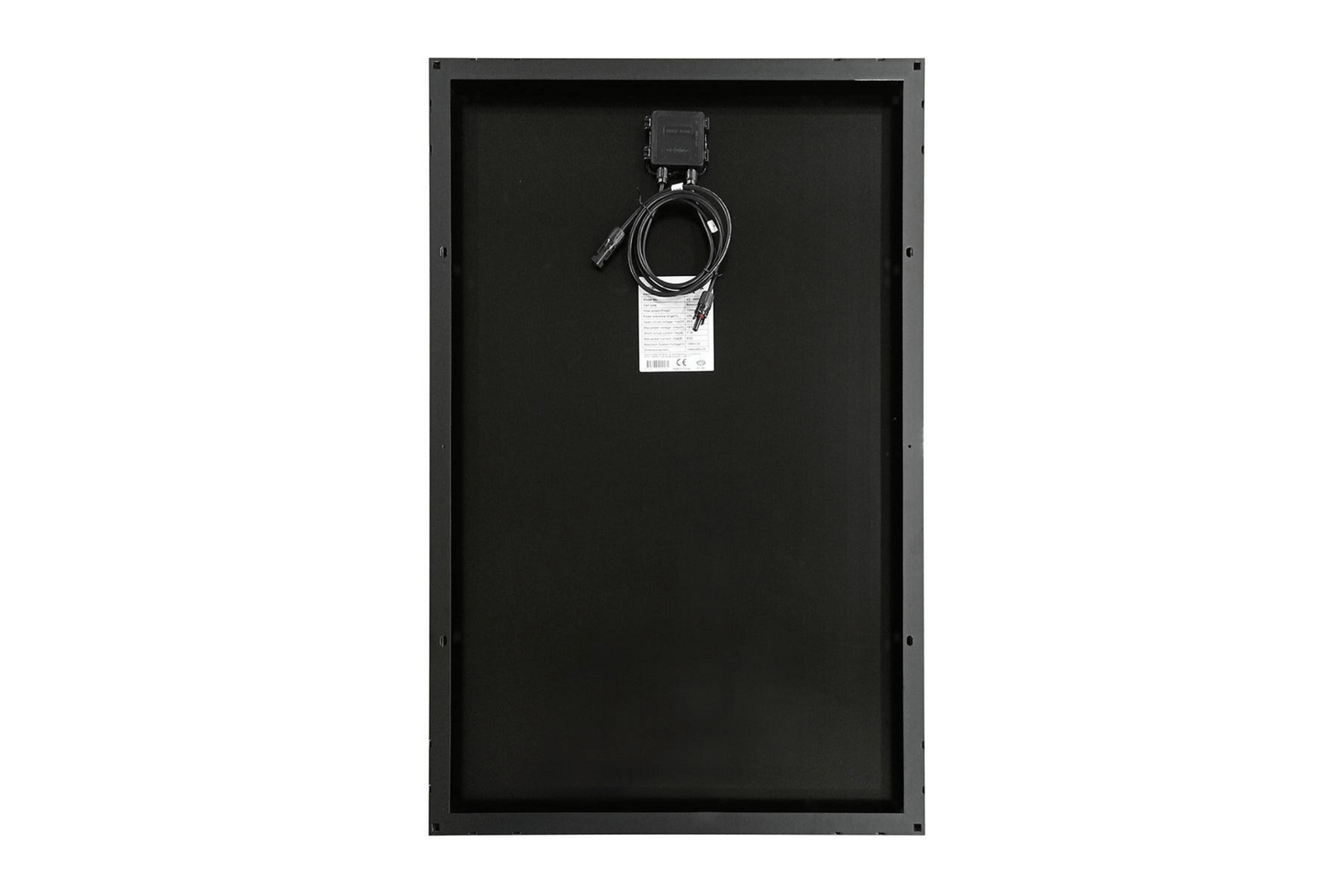

2 × diodes fitted, 900mm of 4mm² cable with MC4-compatible connectors
IP65 rated, −40°C to +85°C operating range
Certified CE, RoHS, FCC, TUV and UL
10 year warranty, 25 year service life

Specifications

+

Maximum power (Pmax)	135W
Voltage at Pmax (Vmp)	20.5V
Current at Pmax (Imp)	6.59A
Open-circuit voltage (Voc)	24.0V
Short-circuit current (Isc)	6.91A
Cell efficiency	22.8%
Maximum system voltage	1000V DC (IEC)
Output power tolerance	±3%
Temperature coefficient — power	−0.38%/°C
Temperature coefficient — voltage	−0.36%/°C
Temperature coefficient — current	+0.07%/°C
Dimensions (L × W × H)	1040 × 680 × 35 mm
Weight	8.0 kg
Output cable	2 × diodes + 900mm / 4mm² + MC4 compatible
Operating temperature	−40°C to +85°C
IP rating	IP65
Certifications	CE, RoHS, FCC, TUV, UL
Warranty	10 years (25 year service life)
