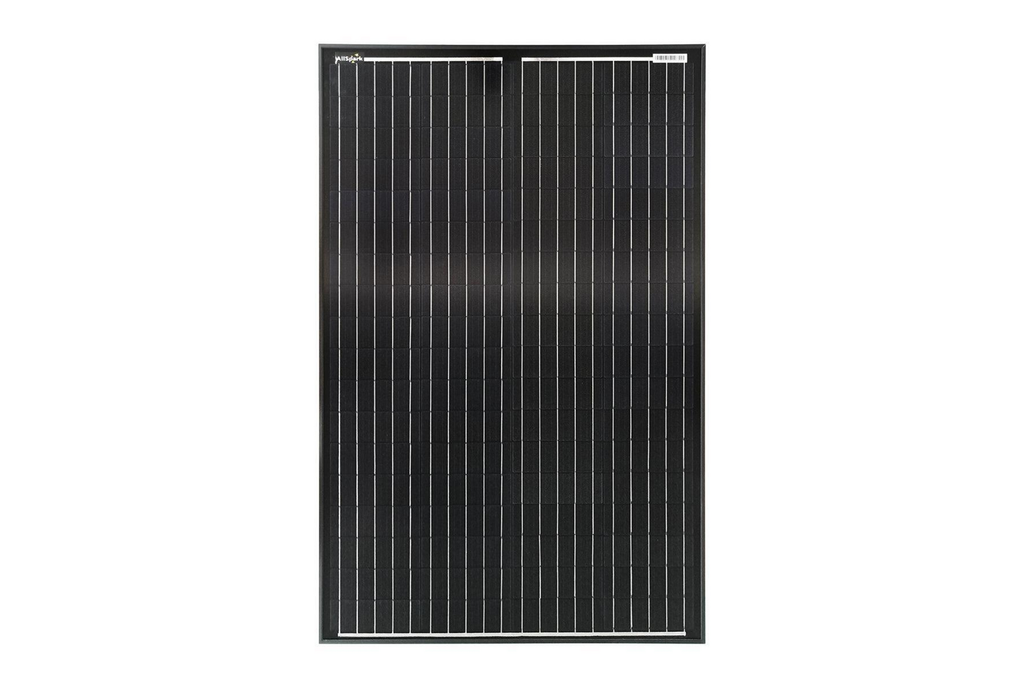

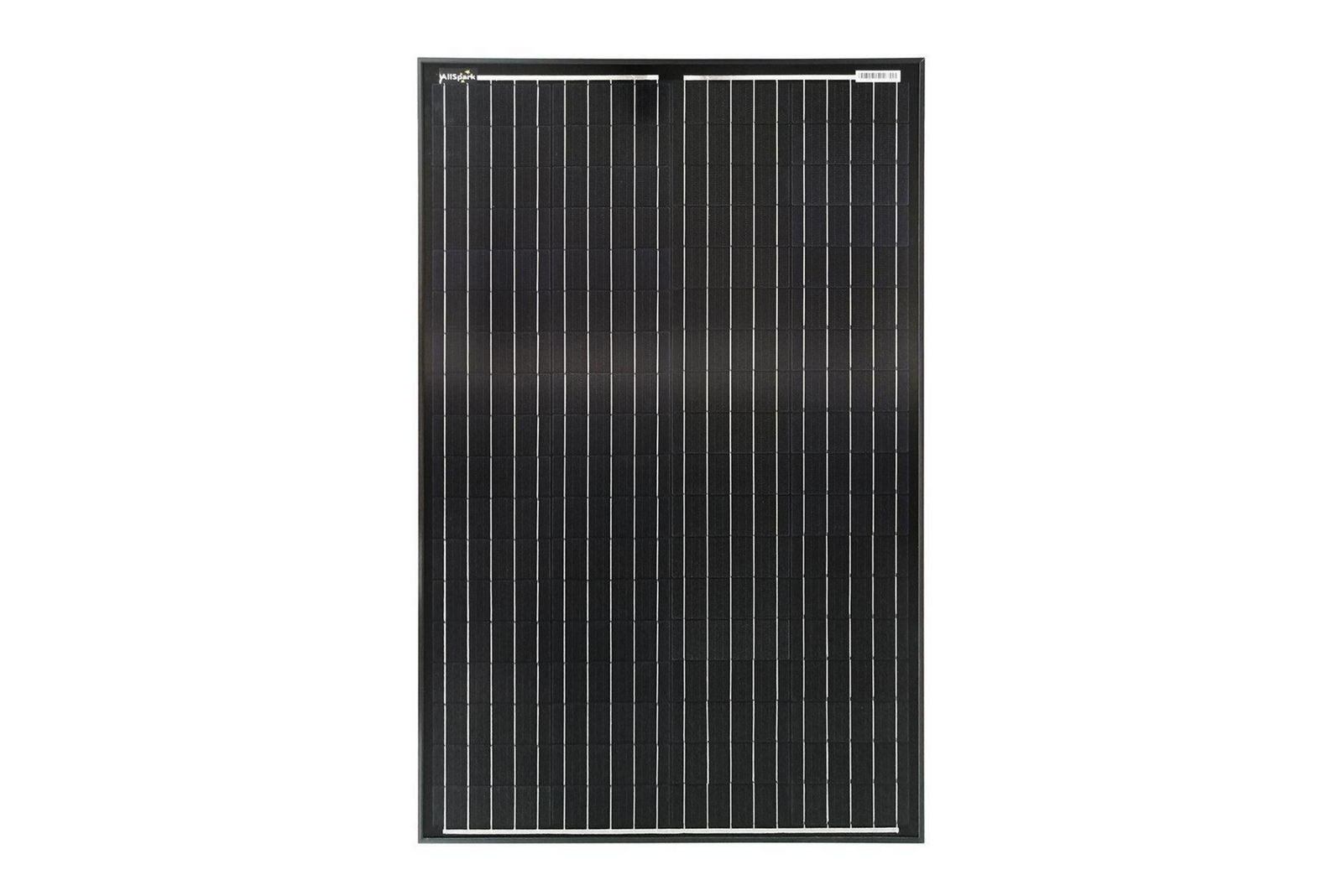

AllSpark 170W Monocrystalline Glass Solar Panel AllSpark

AllSpark 170W Monocrystalline Glass Solar Panel

SKU AS-170SPGL

$259.00

Weight: 8.4 kg
Dimensions (L × W × H): 1355 × 680 × 35 mm
Temperature coefficient — power: −0.38%/°C

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

170W monocrystalline glass panel
22.8% cell efficiency
Vmp 18.6V, Imp 9.14A, Voc 21.8V, Isc 9.60A

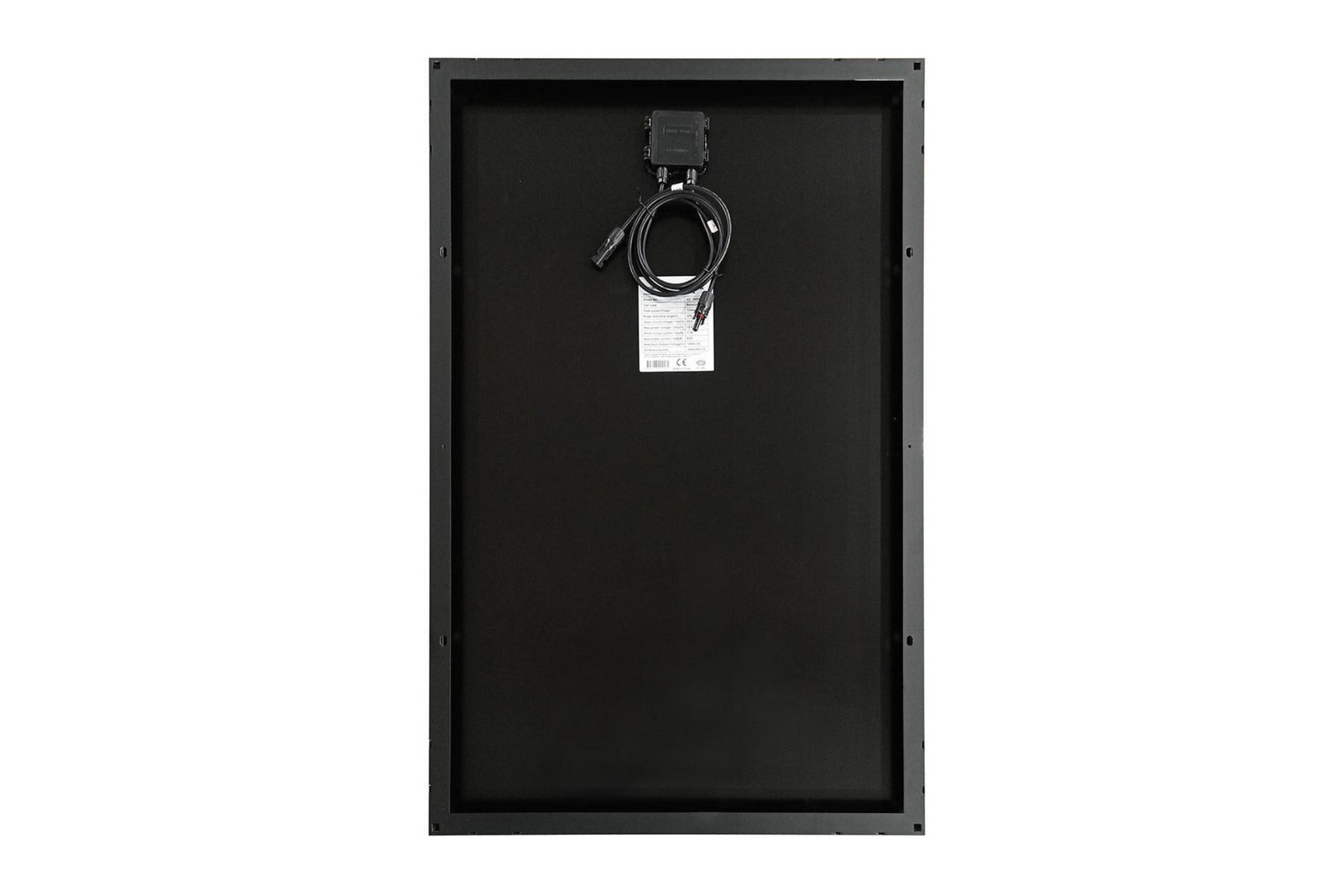

2 × diodes fitted, 900mm of 4mm² cable with MC4-compatible connectors
IP65 rated, −40°C to +85°C operating range
Certified CE, RoHS, FCC, TUV and UL
10 year warranty, 25 year service life

Overview

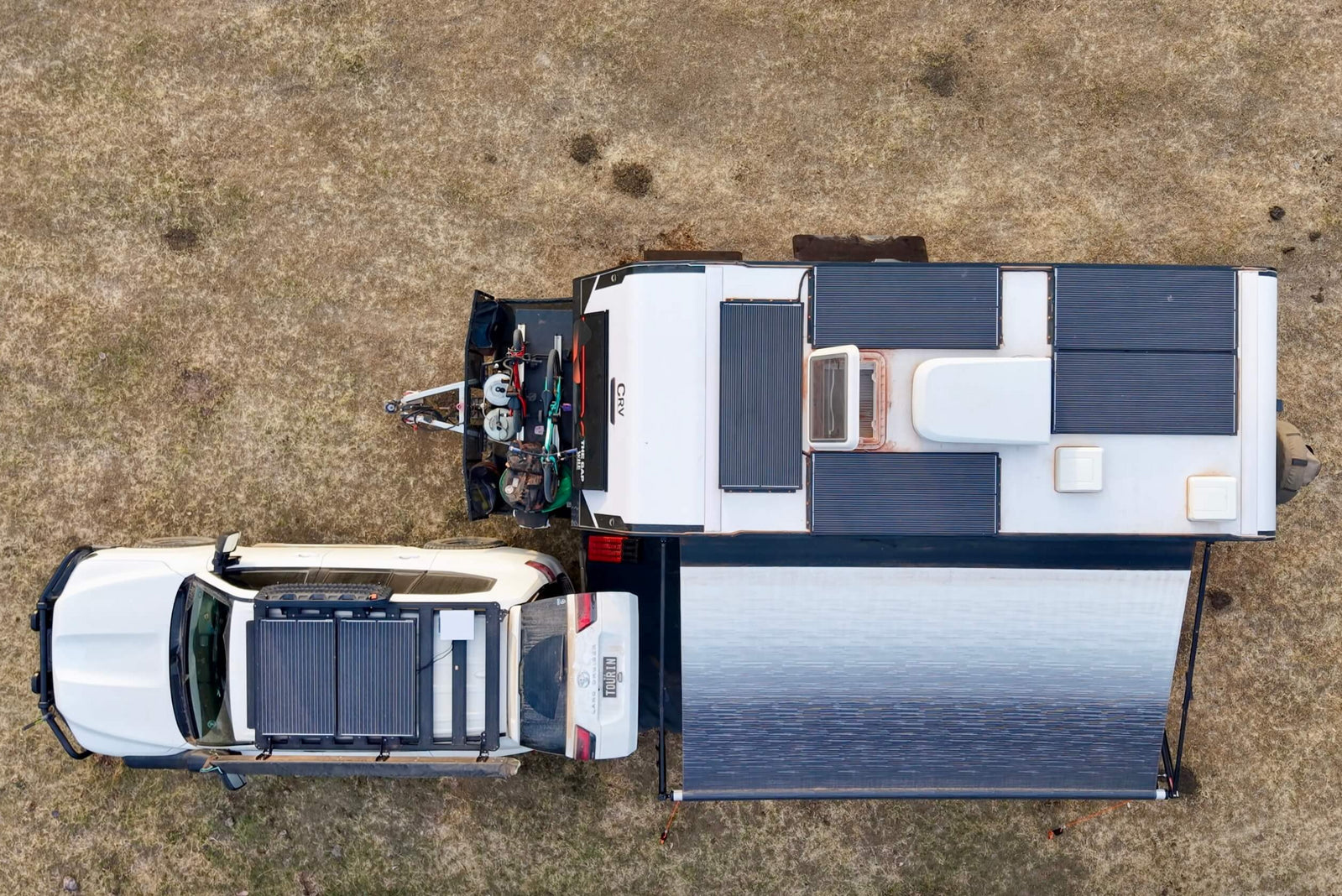

A 170W monocrystalline glass panel with 22.8% cell efficiency, built for a permanent roof install on a caravan, camper or canopy. It runs Vmp 18.6V at Imp 9.14A, with Voc 21.8V and Isc 9.60A.

Use the Isc figure when sizing fuses, cable and controller inputs — that is the number that matters for protection, not the wattage on the box. The panel carries a 10 year warranty against a 25 year service life.

Delivery, returns & warranty

Shipping & Returns

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

12-month manufacturer warranty against defects in materials and workmanship.

Specifications

Maximum power (Pmax)	170W
Voltage at Pmax (Vmp)	18.6V
Current at Pmax (Imp)	9.14A
Open-circuit voltage (Voc)	21.8V
Short-circuit current (Isc)	9.60A
Cell efficiency	22.8%
Maximum system voltage	1000V DC (IEC)
Output power tolerance	±3%
Temperature coefficient — power	−0.38%/°C
Temperature coefficient — voltage	−0.36%/°C
Temperature coefficient — current	+0.07%/°C
Dimensions (L × W × H)	1355 × 680 × 35 mm
Weight	8.4 kg
Output cable	2 × diodes + 900mm / 4mm² + MC4 compatible
Operating temperature	−40°C to +85°C
IP rating	IP65
Certifications	CE, RoHS, FCC, TUV, UL
Warranty	10 years (25 year service life)
