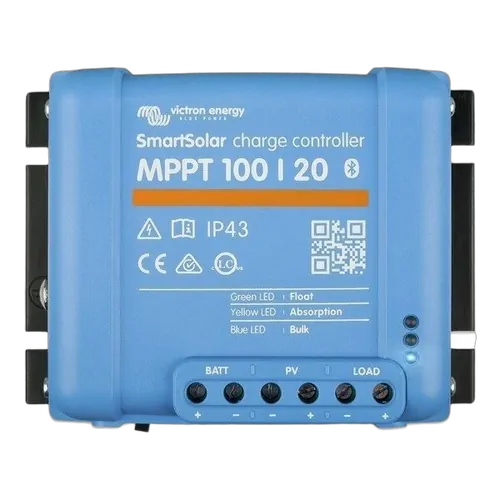

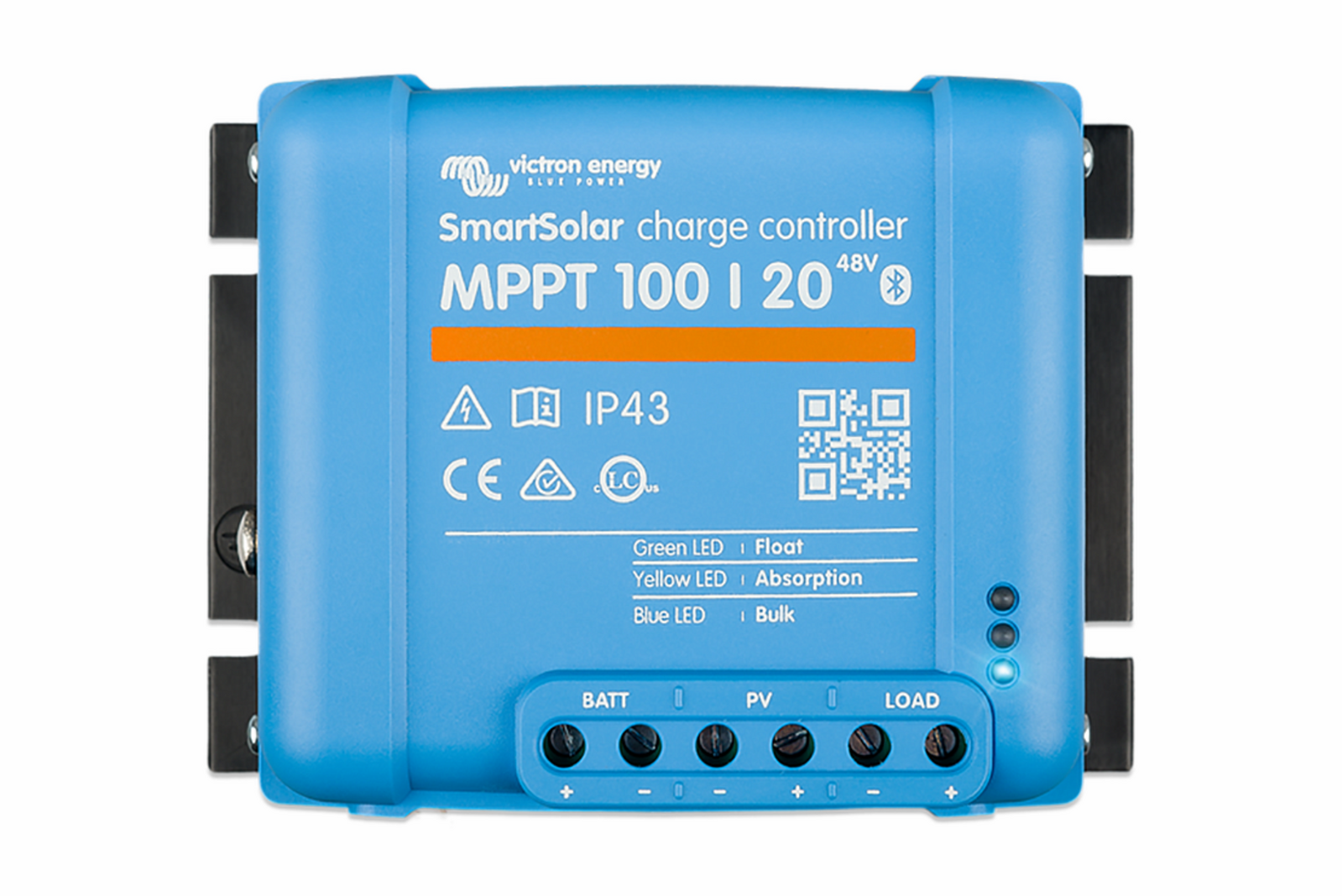

Victron Smart Solar MPPT Charge Controller 100/20 With Bluetooth 12-48V

Victron SmartSolar MPPT 100/20 Bluetooth Solar Charge Controller 12-48V Victron

Victron SmartSolar MPPT 100/20 Bluetooth Solar Charge Controller 12-48V

SKU SCC110020160R

$149.00

Weight: 0.83 kg
Dimensions (L × W × H): 130 × 186 × 70 mm
Operating Temperature: -30°C to +60°C

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

98% peak conversion efficiency using advanced MPPT algorithm for maximum energy harvest
Built-in Bluetooth for wireless monitoring and configuration via VictronConnect smartphone app
Supports 12V, 24V, and 48V battery systems with automatic voltage detection
Compatible with lithium (LiFePO4), AGM, gel, and flooded lead-acid battery types
SafetyShield+ protection: PV short-circuit, reverse polarity, reverse current, and over-temperature safeguards
Intelligent load output terminals with programmable disconnect voltage and BatteryLife algorithm
VE.Direct port for integration with Victron GX devices and VRM remote monitoring portal
Multiple SmartSolar MPPTs can synchronise via Bluetooth for coordinated charging stages
Temperature-compensated charging adapts charge voltage to ambient conditions automatically
Compact, naturally cooled aluminium enclosure rated for tough outdoor and vehicular installations

Overview

The Victron SmartSolar MPPT 100/20 is a premium solar charge controller engineered to squeeze every watt from your solar panels and deliver it safely to your batteries — at an industry-leading 98% conversion efficiency. With a maximum PV open-circuit voltage of 100V and a 20A charge current, it supports 12V, 24V, and 48V battery banks and works seamlessly with lithium (LiFePO4), AGM, gel, and flooded battery chemistries. Built-in Bluetooth via the VictronConnect app gives you real-time monitoring, instant configuration, and full system visibility right from your smartphone — no additional hardware required. Victron's SafetyShield+ technology provides comprehensive protection against PV short-circuits, reverse polarity, reverse current, and over-temperature conditions, all in a compact, naturally cooled enclosure built to handle the harshest Australian environments.

Purpose-built for Australian caravanners, 4WD tourers, and off-grid campers who demand reliable solar power on the road, the SmartSolar MPPT 100/20 is equally at home managing a rooftop solar setup on a caravan, powering a camper trailer's 12V accessories, or keeping batteries topped up in a remote off-road vehicle. The intelligent BatteryLife algorithm protects deep-cycle batteries from excessive discharge, while the load output terminals let you directly power 12V camp lights, fridge compressors, or other accessories with programmable disconnect voltage. Whether you're crossing the Nullarbor, setting up camp in the outback, or living off-grid in an RV or motorhome, this controller keeps your house battery healthy and your adventures running longer.

Key Features

98% peak conversion efficiency with natural convection cooling — no fan noise in camp
Bluetooth built-in: monitor and configure via free VictronConnect app on iOS and Android
Universal 12V/24V/48V auto-detect supports lithium, AGM, gel, and flooded batteries
SafetyShield+ protects against PV short-circuit, reverse polarity, and reverse current
Intelligent load output with BatteryLife algorithm to prevent deep battery discharge

Delivery, returns & warranty

Shipping & Returns

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

5-year manufacturer warranty against defects in materials and workmanship.

Specifications

Model	SmartSolar MPPT 100/20
SKU / Part Number	SCC110020160R
Maximum PV Open-Circuit Voltage	100V
Maximum Charge Current	20A
Battery Voltage	12V / 24V / 48V (auto-detect)
Peak Efficiency	98%
Self-Consumption	< 10 mA
Charge Algorithm	Multi-stage adaptive (Bulk / Absorption / Float / Equalisation)
Battery Types Supported	Lithium (LiFePO4), AGM, Gel, Flooded lead-acid
Load Output Current	20A (current-limited)
Connectivity	Bluetooth (built-in), VE.Direct port
Operating Temperature	-30°C to +60°C (power de-rated above 40°C)
Protection Rating	IP43
Dimensions (L × W × H)	130 × 186 × 70 mm
Weight	0.83 kg
