Unilug Two Up negative battery terminal for dual battery installations

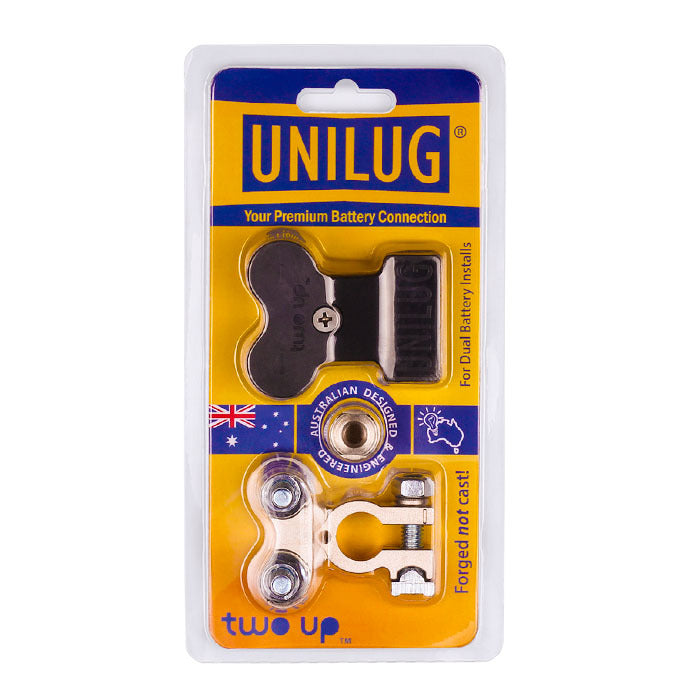

Unilug Two Up negative battery terminal kit Unilug

Unilug Two Up negative battery terminal kit

SKU UMAN-K-RP

$38.50

Weight: 170 g
Dimensions: Approx. 63 mm x 51 mm x 28 mm
Battery Lug Material: Forged JIS 3771 brass, satin nickel plated

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

Purpose designed for dual battery installations where factory leads must not be cut or modified
Forged JIS 3771 brass battery lug with satin nickel plating for strength and greater conductivity
Machined JIS C3604 brass adaptor post, satin nickel plated, with M8 x SAE taper to J1811
Factory strap-type battery terminal fits onto the tapered adaptor post
Additional M8 x 18L threaded termination post for auxiliary batteries and ancillary equipment
Design allows wiring to rotate through a 180° arc at either terminating post
Impact and temperature-resistant PA-6 (nylon) protective cover with SUS304 cover screw
Anti-rotating terminal clamp bolt and universal flanged hex nuts for a secure connection
Mating surfaces machined then satin nickel plated for superior electrical performance
Suits 4WD, caravan, motorhome, RV and boat dual battery systems; sold as a single negative kit

Overview

The Unilug Two Up Negative Terminal (UMAN-K-RP) lets you add a second battery to your 4WD, caravan or motorhome without cutting or modifying the factory battery leads. The factory strap-type terminal clamps onto a tapered M8 x SAE J1811 adaptor post, while the forged JIS 3771 brass lug gives you an extra M8 x 18L threaded post for your auxiliary battery, winch, fridge or ancillary wiring. Wiring can rotate through a 180° arc at either terminating post.

Built in Australia for Australian conditions, this negative kit suits dual battery installations in tourers, campervans, RVs and off-road rigs that cop corrugations, dust, heat and water crossings. It is a tidy solution for weekend campers wiring up a second battery, and for professional auto electricians fitting out a motorhome or 4WD tray build. The satin nickel-plated brass resists corrosion, and the impact- and temperature-resistant nylon cover keeps the connection protected on the road and at camp. Note: this listing is for one negative (black) terminal only.

Key Features

Fits over the factory negative terminal with no cutting or modification of the original battery leads
Forged (not cast) JIS 3771 brass lug with satin nickel plating for strength and conductivity
Adds an extra M8 x 18L threaded post for auxiliary batteries, winches, fridges and accessories
Wiring rotates through a 180° arc at either terminating post for tidy cable routing
Includes lug assembly, adaptor post and impact/temperature-resistant nylon protective cover

Delivery, returns & warranty

Shipping & Returns

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

12-month manufacturer warranty against defects in materials and workmanship.

Specifications

Brand	Unilug
Model / Part Number	UMAN-K-RP
Terminal Polarity	Negative (black)
Kit Contents	Lug assembly, adaptor post and protective cover
Battery Lug Material	Forged JIS 3771 brass, satin nickel plated
Adaptor Post Material	Machined JIS C3604 brass, satin nickel plated
Protective Cover Material	Impact/temperature resistant PA-6 (nylon)
Hardware	Cover screw SUS304; all other hardware zinc plated steel
Termination	M8 x 18L threaded post
Adaptor Post Taper	M8 x SAE taper to J1811
Cable Rotation	180° arc at either terminating post
Dimensions	Approx. 63 mm x 51 mm x 28 mm (per manufacturer datasheet)
Weight	170 g (negative kit, fitted with adaptor post and cover)
Quantity	1 x negative terminal kit
Designed By	Amelec, Western Australia
