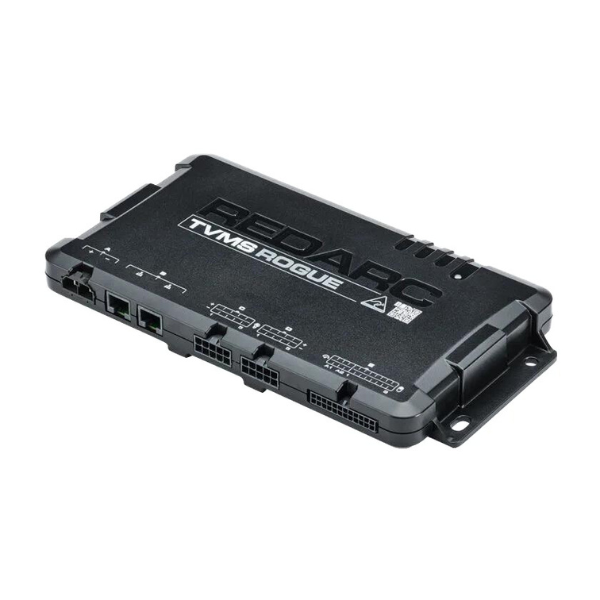

The REDARC TVMS Rogue Control Module (TVMS1240) is the heart of the award-winning RedVision Vehicle Management System — a compact, Australian-designed power distribution and control hub that gives caravan, camper, and 4WD owners unprecedented command over their onboard electrics. At just 25mm thick with built-in smart fuses, it delivers 10 independently dimmable 10A output channels and 8 physical switch inputs, letting you manage lights, fridges, fans, pumps, and inverters from a single, intelligent module. When paired with the RedVision screen and Manager30 battery management system (both sold separately), it delivers real-time state of charge, power input/output data, and ambient temperature monitoring — plus dual analogue inputs for tank level sensing compatible with most common tank sensors.

Purpose-built for Australian conditions and adventure lifestyles, the TVMS Rogue is the ideal solution for grey nomads, weekenders, and serious off-road tourers looking to simplify and automate their caravan or 4WD electrical setup. Whether you're free camping on outback tracks, parked up at a coastal campsite, or living out of a ute canopy on an extended road trip, the Rogue lets you control every circuit from the RedVision touchscreen or your iOS/Android smartphone via Bluetooth. Low-battery automation sheds non-essential loads to protect your batteries, and reed switches on doors can auto-trigger lighting circuits — the kind of smart, hands-free convenience that makes life on the road genuinely easier. Designed, tested, and manufactured in Australia, the TVMS Rogue is backed by REDARC's REDNetwork certified installer network.

Key Features

10 independently dimmable 10A output channels for full control of lights, fans, fridges, pumps, and inverters
Only 25mm thick with built-in smart fuses — compact enough for tight caravan and 4WD installations
Connects to up to 8 physical switches for room-by-room or door-trigger lighting circuits
2 shared analogue inputs for tank level monitoring (water, grey, black) and ambient temperature sensing
Bluetooth-enabled iOS and Android app control via the RedVision system — monitor and automate from your smartphone

Features

+

10 independently dimmable 10A output channels to control lights, fans, fridges, pumps, and inverters
Ultra-slim 25mm profile with in-built smart fuses for compact, protected installation
Connects to up to 8 physical switches for multi-room or door-reed-switch triggered lighting circuits
2 shared analogue inputs support tank level monitoring (compatible with most common tank sensors) and ambient temperature
Real-time state of charge, power input/output, and temperature monitoring when paired with RedVision screen and Manager30 BMS
Full Bluetooth smartphone control via iOS and Android through the RedVision app
Automation functions including one-touch load shedding to protect batteries when charge is low
Compatible with the RedVision modular ecosystem — scalable to the COMBO system (up to 20 channels) as your rig grows
Designed, tested, and manufactured in Australia — backed by REDARC's REDNetwork certified installer network
Works with 12V DC systems across caravans, camper trailers, RVs, motorhomes, and 4WD canopies

Specifications

+

SKU / Model Number	TVMS1240
System Voltage	12V DC
Output Channels	10 × 10A dimmable outputs
Output Channel Rating	10A per channel
Switch Inputs	8 physical switch inputs
Analogue Inputs	2 shared analogue inputs (tank level / temperature)
Tank Monitoring	Up to 2 tanks via shared analogue inputs
Temperature Monitoring	Ambient temperature via shared analogue inputs
Module Thickness	25mm
Fuse Type	In-built smart fuses
Connectivity	Bluetooth (iOS and Android via RedVision app)
Compatible Screen	RedVision Display (sold separately)
Compatible BMS	REDARC Manager30 (sold separately)
Country of Origin	Australia (designed, tested, and manufactured)
Compatible Applications	Caravan, camper trailer, 4WD, RV, motorhome, van
