DESCRIPTION

SPECIFICATIONS

CABLE, CONDUITS AND LUG SIZING CHART

AWG/B&S	Twin Core					Single Core					Copper Diameter (mm) per core	Surface Area (mm²) per core	Lug size (mm²)
	Current Rating (Amps)	Circuit Protection Max (Amps)	Conduit Size (mm)	Heat Shrink (mm)		Current Rating (Amps)	Circuit Protection Max (Amps)	Conduit Size (mm)	Heat Shrink (mm)
	Current Rating (Amps)	Circuit Protection Max (Amps)	Conduit Size (mm)	Without Conduit	With Conduit	Current Rating (Amps)	Circuit Protection Max (Amps)	Conduit Size (mm)	Without Conduit	With Conduit
2mm Auto Industry Equivalent	12	7.5	5	5	10	N/A					1.1	0.56	Red crimps
3mm Auto Industry Equivalent	16	10	5	5	10	20	15	5	2.5	10	1.40	1.13	Red/Blue crimps
4mm Auto Industry Equivalent	22	15	7	7	10	28	25	5	2.5	10	1.30	1.84	Blue crimps
6mm Auto Industry Equivalent	38	30	10	10	13	48	40	7	5	10	3.10	4.59	Yellow crimp/6mm lug
8 B&S	59	50	13	13	20	74	60	7	7	10	3.70	7.71	10
6 B&S	82	70	16	16	25	103	80	7	10	10	5.00	13.50	16
4 B&S	108	100	20	20	25	135	100	10	10	13	6.10	20.26	25
2 B&S	Single core only					188	150	13	13	20	7.90	32.07	35
0 B&S						246	200	13	16	20	9.30	49.00	50
00 B&S						292	250	16	16	25	11.10	64.15	70
000 B&S						335	300	16	20	25	12.40	83.19	95
This cable chart is provided for information purposes only. It is based on the published information for Tycab Australia Automotive cables which we use soley.

Features

+

Shipping & Returns

+

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

Warranty & Returns

Limited 12 Month Manufacturer Warranty

If you experience issues with your gear, please contact us for support.

What’s Covered?

Manufacturing defects
Faults in materials or workmanship

What’s Not Covered?

Damage caused by misuse, neglect, or improper use
Incidents occurring during delivery
Normal wear and tear from usage

How to Initiate a Warranty Claim

If you need to file a warranty claim, please follow these steps:

Contact us via email or the via the contact us
Provide the following details:
- Order ID
- Detailed description of the issue
- Images/videos clearly showcasing the fault (ensure they meet the recommended format and size for optimal review)
Our team will assess your claim and get back to you as soon as possible.

Note: Do not open a PayPal dispute, as this may delay the resolution process. Please follow the official claim process for quicker results.

⚠ Important Note:
We recommend testing your purchased product within one year of purchase. We cannot help process warranty claims beyond this period.

For full details, please refer to our other policies:

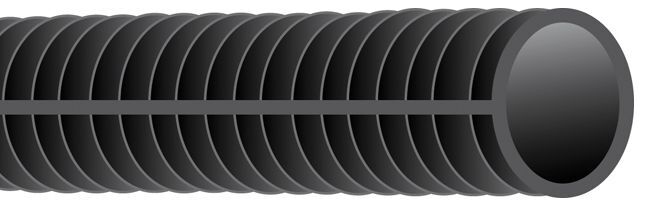

Corrugated Split Tubing 7mm
