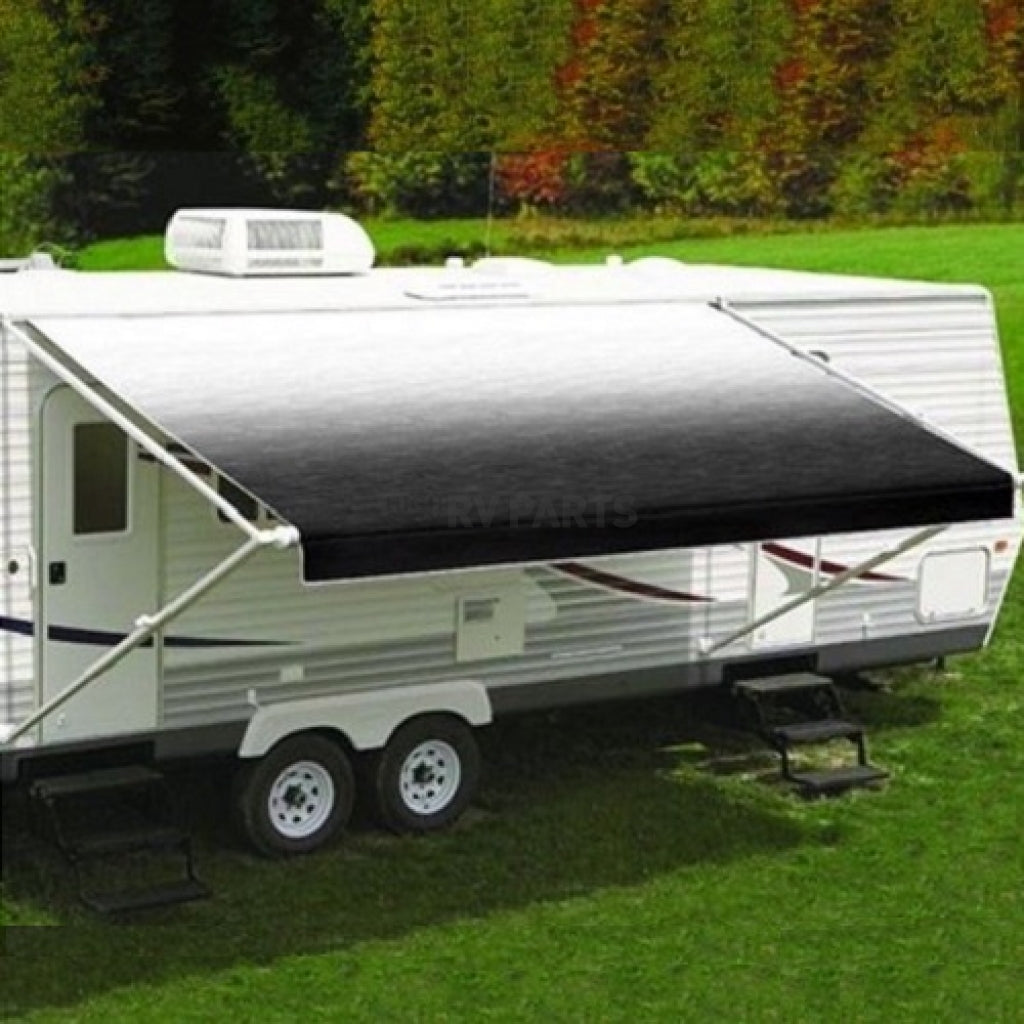

Carefree Freedom 12V Motorised 4.5M Black Box Awning - Silver Shale Fade

$3,699.00

The Carefree Freedom wall-mount awning is a fully self-contained motorised box awning that deploys at the push of a button, automatically extending its articulated support arms as the canopy rolls out. The 4.5 m version delivers 2.44 m (8 ft) of lateral projection — enough to shade the full side of most caravans and motorhomes — while the sealed cassette case keeps the fabric fully enclosed when stowed.

The 12V motor (15A draw) runs directly from your house battery with a built-in manual override crank for power-free operation if needed. Flip-lock adjustable support legs can be set vertical, angled to the RV base, or tiered for slide-outs. The black aluminium cassette gives a clean, modern appearance. Part number: 351776DJVTM.

Features

+

12V electric push-button operation — deploys and retracts without leaving the vehicle
Built-in manual override crank — fully operable without 12V power
2.44 m (8 ft) projection — shades the full side of most caravans and motorhomes
Sealed cassette case fully encloses fabric when retracted — no cover or manual roll required
Flip-lock adjustable support legs: vertical, angled to RV base, or tiered for slide-outs
Self-aligning articulated arms deploy automatically as canopy extends
Black powder-coated aluminium cassette — suits both white and dark vehicle colours
12V, 15A motor draw; complete kit includes all mounting hardware and electronics
1-year manufacturer's warranty

Specifications

+

Part Number	351776DJVTM
Awning Width	4.5 m
Fabric Width	Approx. 4.32 m
Projection	2.44 m (8 ft)
Lead Rail Drop (adjustable)	305–915 mm (12"–36")
Case Depth	145 mm
Case Height	91 mm
Case Colour	Black aluminium
Motor	12V integrated; manual override crank included
Power Draw	12V, 15A
Weight (approx.)	35–37 kg
Mounting Type	Wall mount
Warranty	1 year
