Key features
- Anderson plug rated to 50A continuous current — UL silver-coated copper contacts
- Dual USB-A quick-charge sockets, 4.8A combined output
- 12V cigarette socket for standard 12V ciga accessories
- Black flush-mount panel for clean surface installation
- Supplied with PVC surface-mounting plate
- UV-stabilised PVC housing for heavy-duty outdoor durability
- Short-circuit-resistant and fire-safe socket design
- Tinned copper inserts for reliable conductivity and corrosion resistance
- Robust end plate construction built to withstand vibration and the elements
Overview

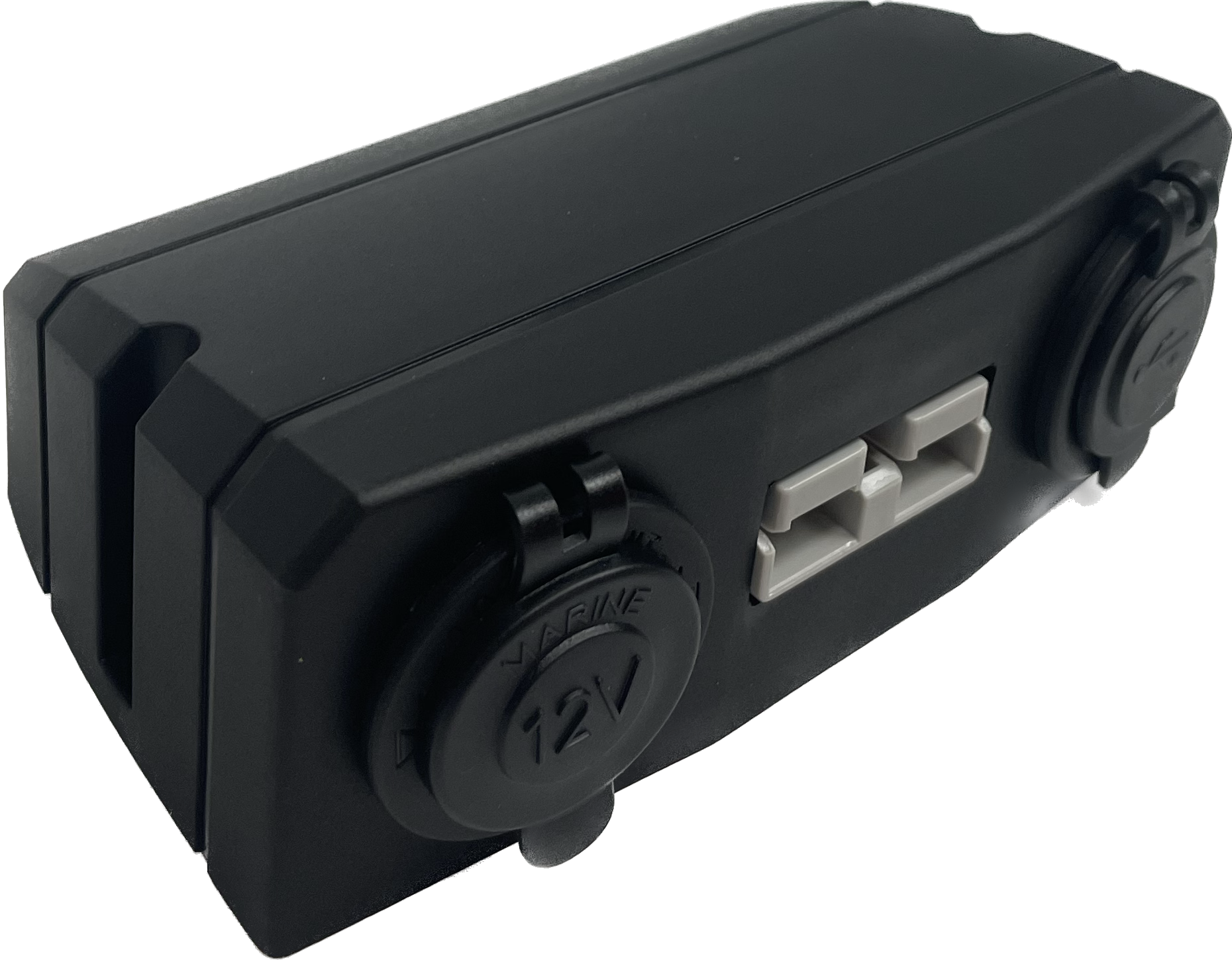

The Baintech Surface Mount Anderson/Ciga/USB Panel is a purpose-built, all-in-one power panel that combines a 50A continuous-rated Anderson plug — fitted with UL-grade silver-coated copper contacts — alongside a 12V cigarette socket and dual USB-A ports delivering 4.8A quick-charge output. The UV-stabilised PVC housing and robust end plate design ensure the panel stands up to the vibration, heat and moisture cycles that caravans, camper trailers and 4WD builds routinely demand, while the tinned copper inserts and short-circuit-resistant socket design keep occupants and equipment safe.
Designed for campers, overlanders and caravan owners who need a reliable, consolidated charging hub without running separate wiring for each accessory type, this flush-mount panel installs cleanly onto any flat surface via the included PVC surface-mounting plate. Whether you are topping up devices at camp, running a 12V fridge lead-in or connecting a portable power station via an Anderson plug, this panel handles heavy-duty daily use without the socket failures or fire risks associated with cheaper alternatives.
- Anderson plug rated to 50A continuous current with UL silver-coated copper contacts
- Dual USB-A sockets with combined 4.8A quick-charge output
- 12V cigarette (ciga) socket for standard 12V accessories
- Black flush-mount design for a clean, integrated finish
- Supplied with PVC surface-mounting plate for easy installation
- UV-stabilised PVC housing engineered for heavy-duty outdoor use
- Short-circuit and fire-resistant socket geometry for safe operation
- Tinned copper inserts for superior conductivity and corrosion resistance
Specifications
| Anderson Plug Rating | 50A continuous current |
|---|---|
| Anderson Contact Material | UL silver-coated copper |
| USB Output | Dual USB-A, 4.8A combined quick charge |
| 12V Socket Type | Cigarette (ciga) socket |
| Mount Style | Flush / surface mount |
| Housing Material | UV-stabilised PVC |
| Insert Material | Tinned copper |
| Included Accessories | PVC surface-mounting plate |
| Colour | Black |
| Suitable For | Caravans, camper trailers, 4WD, marine and off-grid applications |
| Supplier SKU | BTAnderson/Ciga/USB |
Delivery, returns & warranty
Warranty Details
+
Warranty Details
+
- 12-month manufacturer warranty from Bainbridge Technologies.
-
