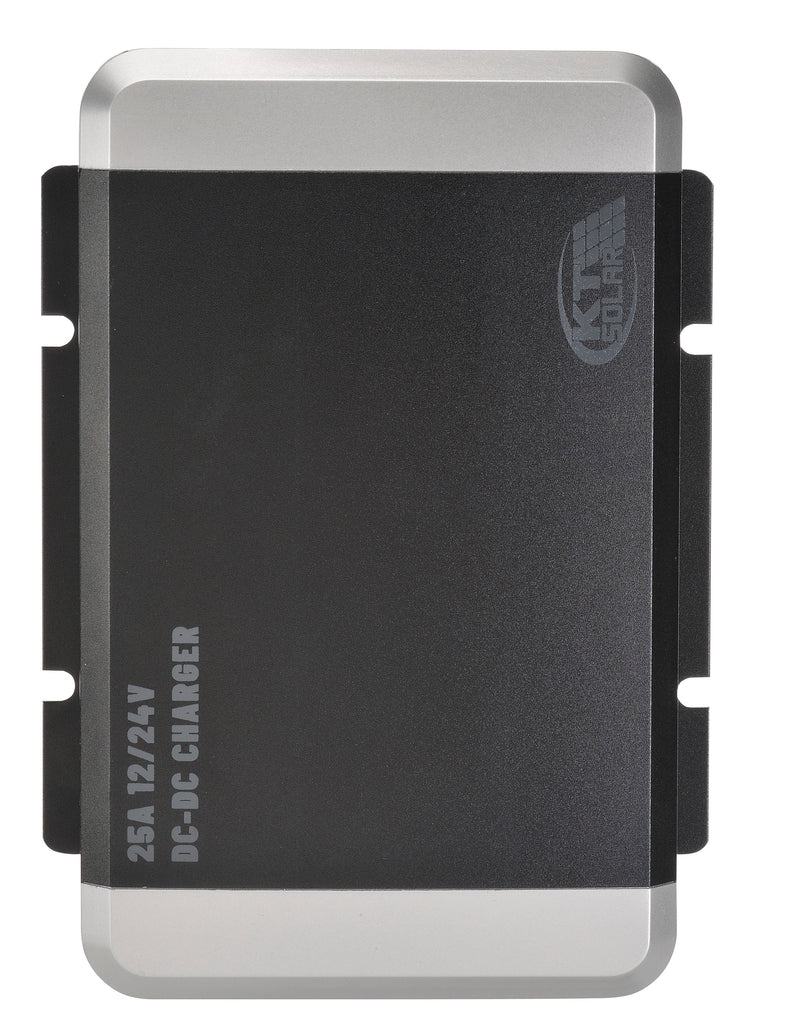

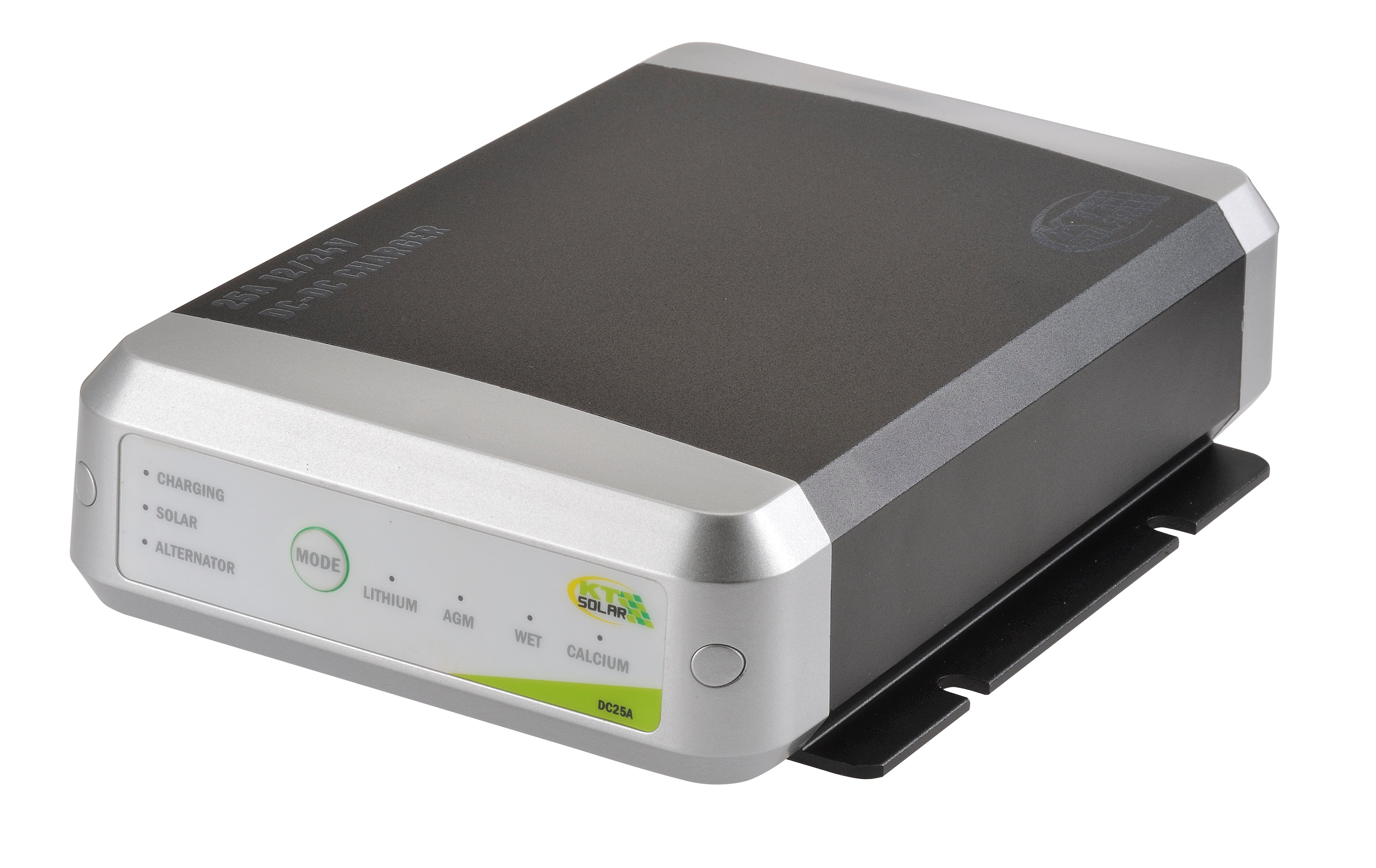

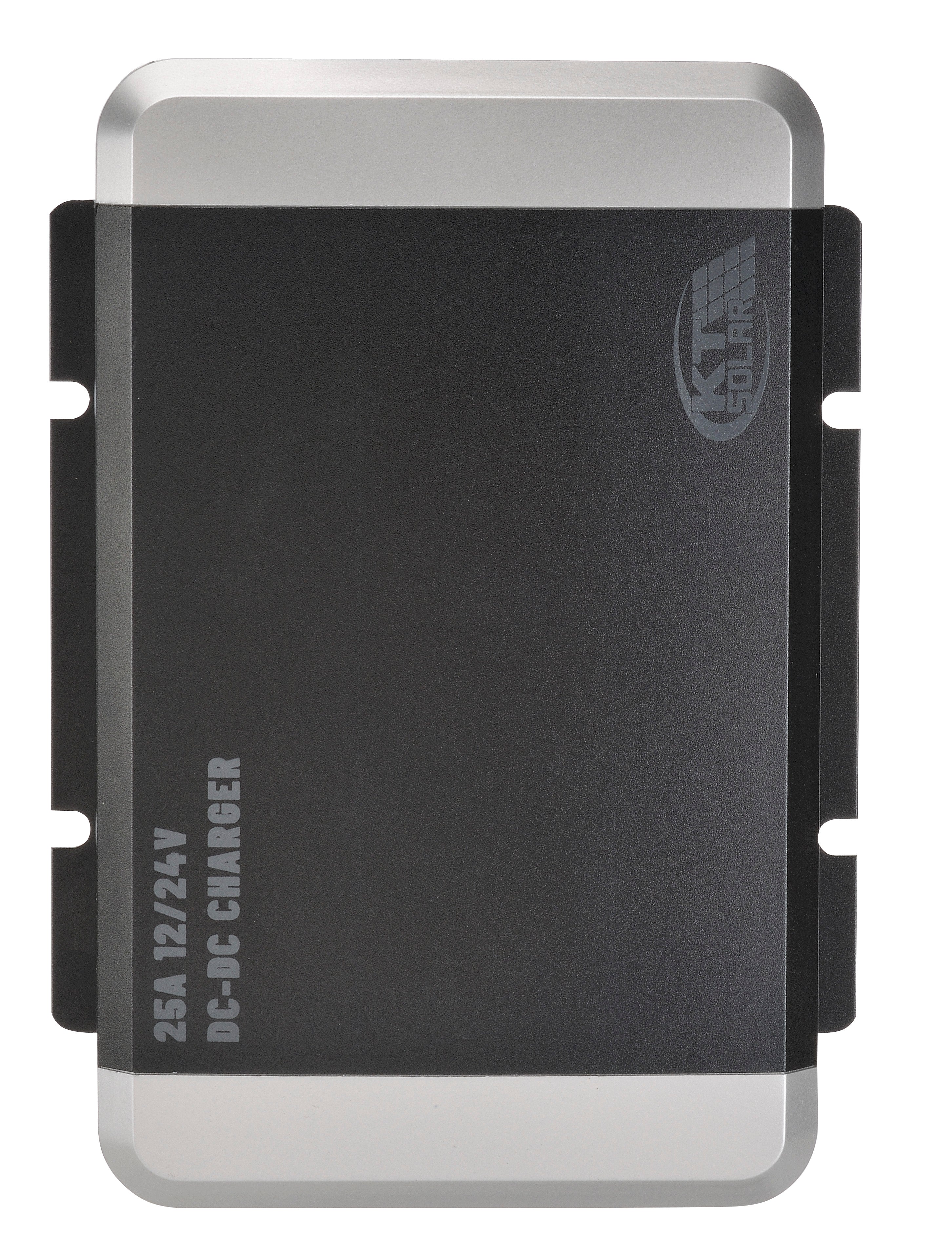

25A DC-DC Battery Charger with Inbuilt MPPT Solar

25A DC-DC Battery Charger with Inbuilt MPPT Solar KT Solar

25A DC-DC Battery Charger with Inbuilt MPPT Solar

SKU KSDC25A

$349.00

Weight: 1.4 kg
Dimensions (L × W × H): 235 × 155 × 65 mm
Operating Temperature: -20°C to +60°C

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

25A DC-DC output charges auxiliary battery with a multi-stage algorithm (bulk, absorption, float) regardless of alternator voltage
Inbuilt 20A MPPT solar regulator accepts direct solar panel input up to 50V open-circuit voltage
Compatible with LiFePO4, AGM, gel, calcium, and flooded lead-acid battery chemistries — selectable via mode switch
Wide input voltage range of 9–32V DC accommodates smart alternators, EFB and AGM start batteries in modern vehicles
Dual-input intelligence prioritises and combines DC-DC and solar inputs simultaneously for maximum charge rate
Automatic temperature compensation adjusts charge voltage to protect batteries in extreme Australian conditions
Compact, fan-cooled aluminium enclosure with IP22 protection rating suits under-bonnet and enclosed-compartment mounting

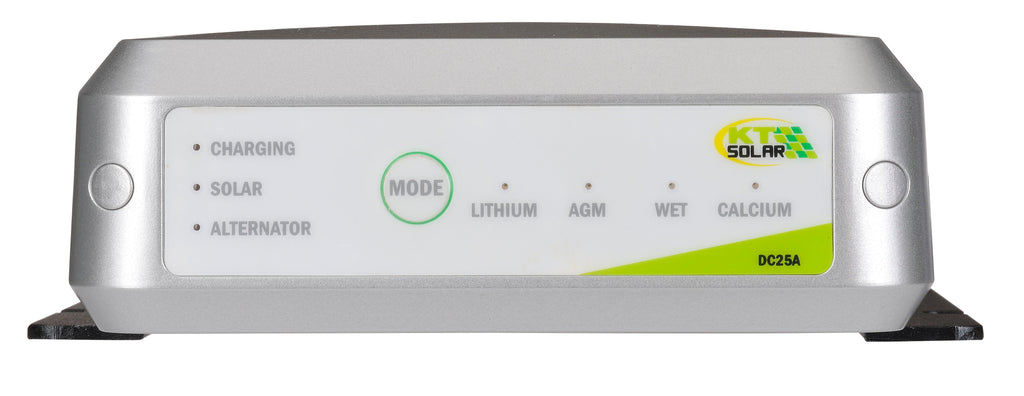

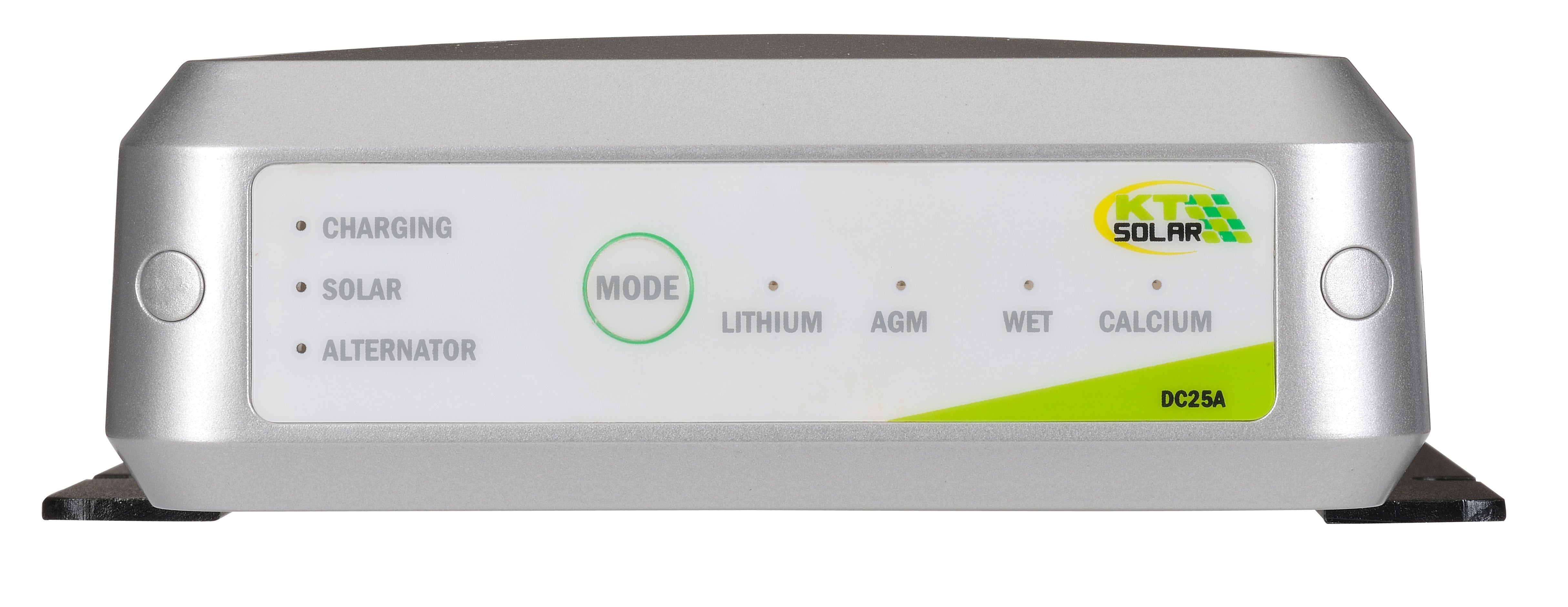

LED indicator array displays charging stage, input source activity, and fault status at a glance
Reverse polarity protection, over-temperature shutdown, and short-circuit protection on all ports

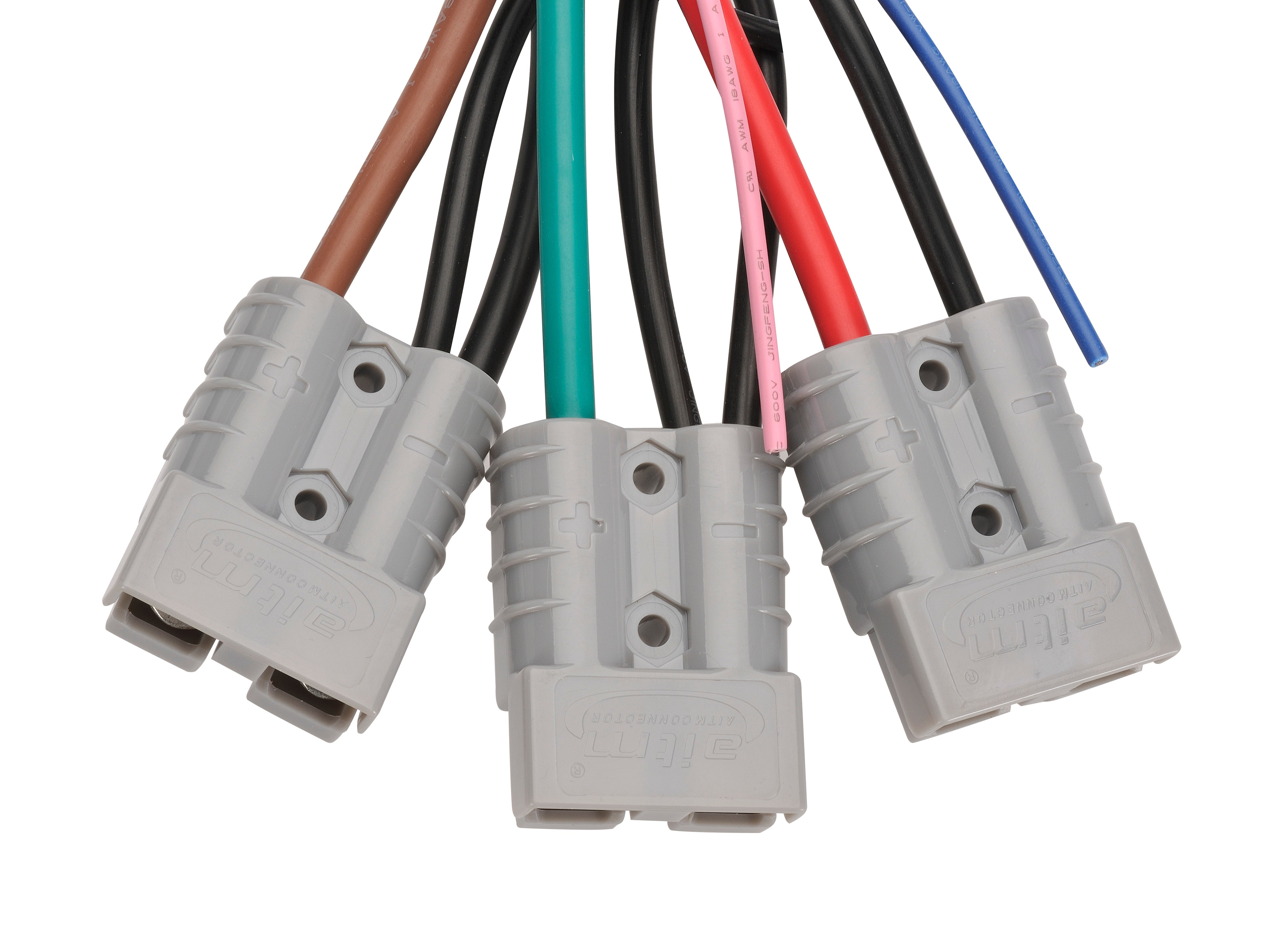

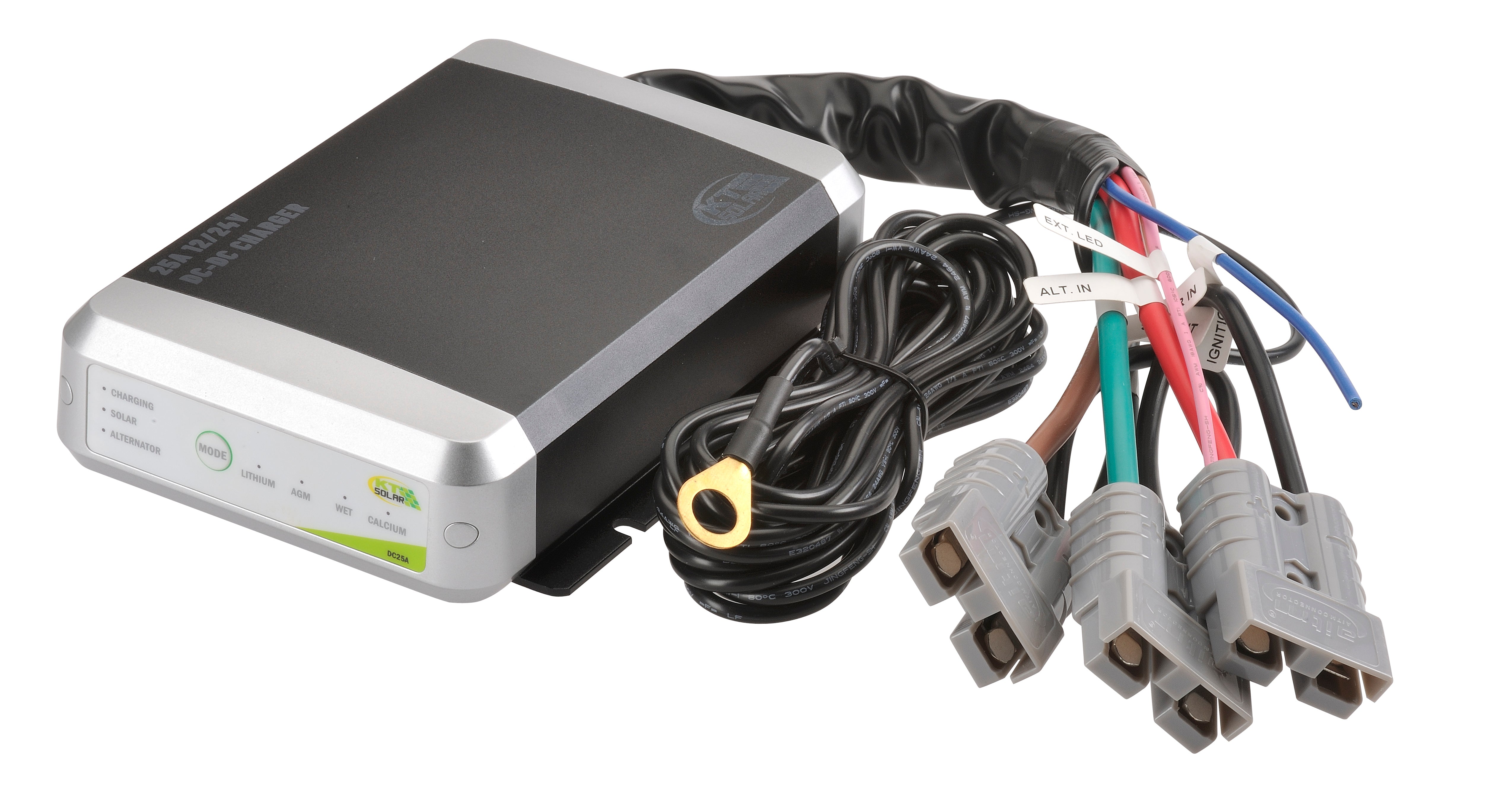

Supplied with mounting hardware and connection leads — ready to install straight out of the box

Overview

The KT Solar KSDC25A is a 25A DC-DC battery charger with an inbuilt 20A MPPT solar regulator, purpose-built for 12V dual-battery systems in caravans, camper trailers, 4WDs, and motorhomes. Unlike basic voltage-sensing isolators, the KSDC25A employs a true multi-stage charging algorithm — bulk, absorption, and float — to deliver a full, correctly profiled charge to your auxiliary battery regardless of your vehicle's alternator type. Its wide 9–32V DC input range fully supports modern smart alternators, EFB, and AGM start batteries, while the inbuilt MPPT solar input accepts panels up to 50V open-circuit voltage and harvests up to 95% conversion efficiency for maximum solar yield.

Whether you're running a lithium LiFePO4 drop-in, an AGM deep-cycle, or a traditional flooded lead-acid battery, the KSDC25A's selectable battery chemistry profiles ensure every setup gets the correct charge voltages and temperatures. Dual-input intelligence lets the unit draw from your alternator and solar panels simultaneously, giving you the fastest possible recharge during long touring days on Australian outback tracks, coastal caravan parks, or remote free-camping spots. Automatic temperature compensation protects your batteries through Australia's extreme seasonal conditions, while the compact, fan-cooled IP22 aluminium enclosure fits neatly under the bonnet, in a caravan tunnel boot, or inside a camper trailer's battery compartment.

Key Features

25A DC-DC output with true multi-stage charging (bulk, absorption, float) for a full, correctly profiled auxiliary battery charge
Inbuilt 20A MPPT solar regulator accepts panels up to 50V OCV with up to 95% conversion efficiency
Selectable profiles for LiFePO4, AGM, Gel, Calcium, and flooded lead-acid battery chemistries
Dual-input intelligence combines DC-DC and solar inputs simultaneously for maximum recharge speed
Wide 9–32V DC input supports modern smart alternators, EFB, and AGM start batteries in current-generation vehicles

Delivery, returns & warranty

Shipping & Returns

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

2-year manufacturer warranty against defects in materials and workmanship.

Customer reviews

No reviews for the 25A DC-DC Battery Charger with Inbuilt MPPT Solar yet. Be the first.

Specifications

Model	KSDC25A
DC-DC Output Current	25A
MPPT Solar Input Current	20A
DC Input Voltage Range	9V – 32V DC
Solar Panel Input Voltage (OCV max)	50V DC
Output Voltage	12V (selectable charge profile)
Battery Chemistry Compatibility	LiFePO4, AGM, Gel, Calcium, Flooded Lead-Acid
Charging Stages	Multi-stage: Bulk, Absorption, Float
Efficiency	Up to 95%
Operating Temperature	-20°C to +60°C
Protection Features	Reverse polarity, over-temperature, short-circuit, over-voltage
Enclosure Rating	IP22 — fan cooled, aluminium housing
Dimensions (L × W × H)	235 × 155 × 65 mm
Weight	1.4 kg
Warranty	2 years
