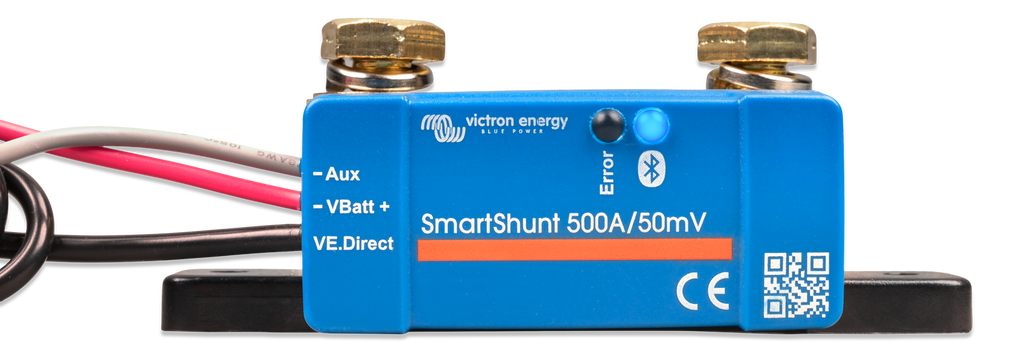

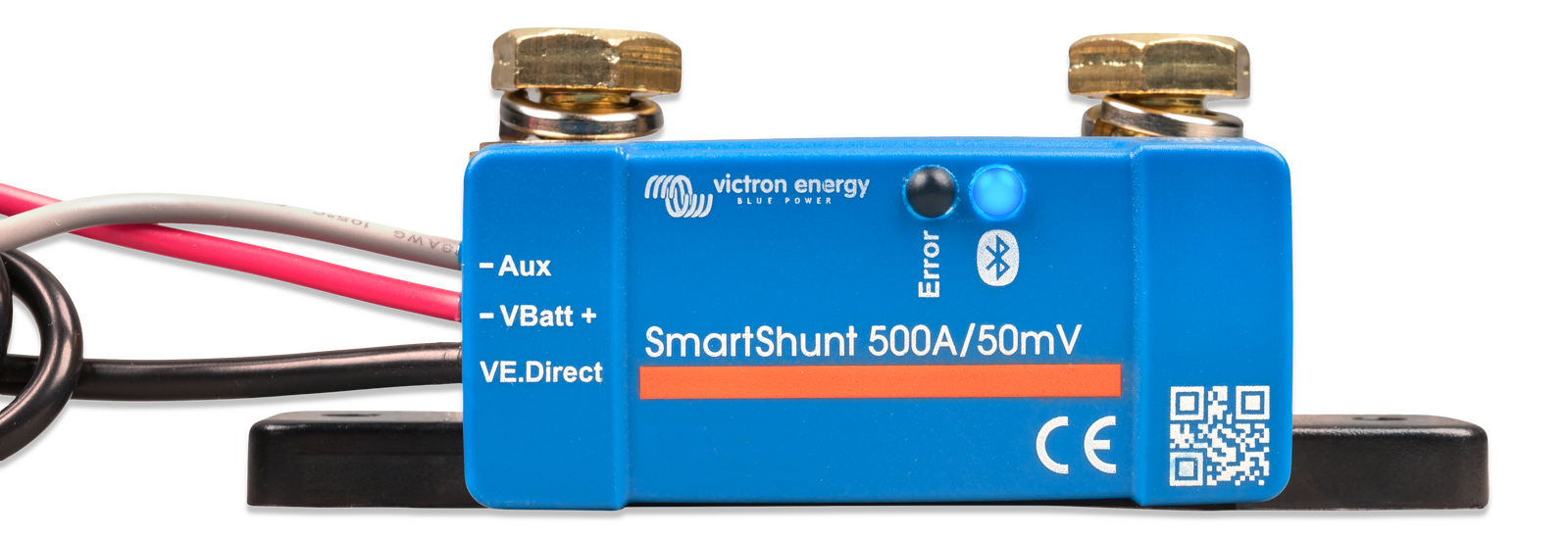

Victron Smart Shunt 500A Battery Monitor with Bluetooth IP65 Waterproof

Victron SmartShunt 500A Battery Monitor with Bluetooth IP65 Victron

Victron SmartShunt 500A Battery Monitor with Bluetooth IP65

SKU SHU065150050

$169.00

Weight: 0.27 kg
Dimensions (L × W × H): 113 × 66 × 40 mm
Operating Temperature: -40°C to +50°C

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

99.6% measurement accuracy for state of charge, voltage, current, amp hours consumed, and time remaining
IP65 water and dust resistance rating — suitable for exposed or engine-bay installations
Integrated Bluetooth 4.0 for wireless communication with the VictronConnect smartphone app (iOS and Android)
Compatible battery chemistries: Lithium Iron Phosphate (LiFePO4), AGM, gel, and flooded lead-acid
VE.Direct communication port for integration with Victron GX devices, Color Control GX, and VRM remote portal
AUX input supports monitoring of starter battery voltage, battery bank midpoint, or external temperature sensor
VE.Smart Networking wirelessly shares battery voltage, current, and temperature with compatible Victron chargers and MPPT solar controllers
SafetyShield+ battery protection features with configurable alarm notifications for low state of charge and other thresholds
30-day battery history log accessible in the VictronConnect app — no additional hardware required
Suitable for 12V and 24V DC systems; shunt rated at 500A continuous / 65mV drop

Overview

The Victron SmartShunt 500A IP65 is a professional-grade intelligent battery monitor that gives you total visibility over your 12V or 24V battery system — all from your smartphone via the free VictronConnect app over Bluetooth. Delivering 99.6% measurement accuracy, it tracks state of charge, voltage, current (up to 500A), amp hours consumed, time remaining, number of charge cycles, and deepest discharge in real time. The IP65-rated enclosure provides full water and dust resistance, making it one of the toughest battery monitors available for demanding environments. With a built-in VE.Direct port, it integrates seamlessly into a broader Victron system for remote monitoring via the VRM portal — no display screen required, keeping installations clean and clutter-free.

Designed for Australian caravanners, campers, and 4WD enthusiasts who depend on reliable battery management off-grid, the Victron SmartShunt 500A IP65 is ideal for monitoring lithium (LiFePO4), AGM, and flooded lead-acid battery banks in caravans, motorhomes, campervans, and RV setups. Whether you're running a solar-charged lithium bank on a long-haul outback trip, managing twin battery systems in a 4WD, or keeping tabs on your caravan's house battery over the weekend, the SmartShunt delivers the confidence of knowing exactly how much power you have left. The optional AUX input lets you monitor a second battery (starter battery voltage or battery bank balance), and VE.Smart Networking wirelessly shares battery data with connected Victron chargers to extend battery life and optimise charging efficiency on the road.

99.6% measurement accuracy across state of charge, voltage, current, and amp hours
IP65-rated enclosure — fully dust-tight and water-resistant for harsh outdoor conditions
Built-in Bluetooth for wireless monitoring via the free VictronConnect smartphone app
Supports lithium (LiFePO4), AGM, gel, and flooded lead-acid battery chemistries
VE.Direct port for integration with Victron GX devices and remote VRM portal access
AUX input to monitor starter battery voltage or secondary battery bank balance
VE.Smart Networking shares live battery data wirelessly with Victron chargers and solar controllers
Minimal wiring installation — no display unit required, keeping battery compartments clean

Key Features

99.6% measurement accuracy — tracks state of charge, voltage, current, amp hours, cycles, and time remaining
IP65-rated — fully waterproof and dustproof for caravan, RV, and off-road installations
Built-in Bluetooth with free VictronConnect app — no dedicated display unit required
Compatible with lithium LiFePO4, AGM, gel, and flooded lead-acid battery chemistries
VE.Direct port + VE.Smart Networking for full Victron ecosystem integration and remote VRM monitoring

Delivery, returns & warranty

Shipping & Returns

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

Warranty & Returns

Limited 12 Month Manufacturer Warranty

If you experience issues with your gear, please contact us for support.

What’s Covered?

Manufacturing defects
Faults in materials or workmanship

What’s Not Covered?

Damage caused by misuse, neglect, or improper use
Incidents occurring during delivery
Normal wear and tear from usage

How to Initiate a Warranty Claim

If you need to file a warranty claim, please follow these steps:

Contact us via email or the via the contact us
Provide the following details:
- Order ID
- Detailed description of the issue
- Images/videos clearly showcasing the fault (ensure they meet the recommended format and size for optimal review)
Our team will assess your claim and get back to you as soon as possible.

Note: Do not open a PayPal dispute, as this may delay the resolution process. Please follow the official claim process for quicker results.

⚠ Important Note:
We recommend testing your purchased product within one year of purchase. We cannot help process warranty claims beyond this period.

For full details, please refer to our other policies:

Specifications

Model	SmartShunt 500A/65mV IP65
SKU / Part Number	SHU065150050
Current Rating	500A continuous
Shunt Voltage Drop	65mV at 500A
Voltage Range	6.5V – 70V DC (12V, 24V, 48V systems)
Measurement Accuracy	99.6%
Ingress Protection Rating	IP65 (water and dust resistant)
Wireless Connectivity	Bluetooth 4.0 (BLE) — VictronConnect app (iOS & Android)
Communication Port	VE.Direct
AUX Input	Starter battery voltage, midpoint monitoring, or temperature sensor
Compatible Battery Types	Lithium LiFePO4, AGM, Gel, Flooded Lead-Acid
Operating Temperature	-40°C to +50°C
Dimensions (L × W × H)	113 × 66 × 40 mm
Weight	0.27 kg
Country of Origin	Netherlands
