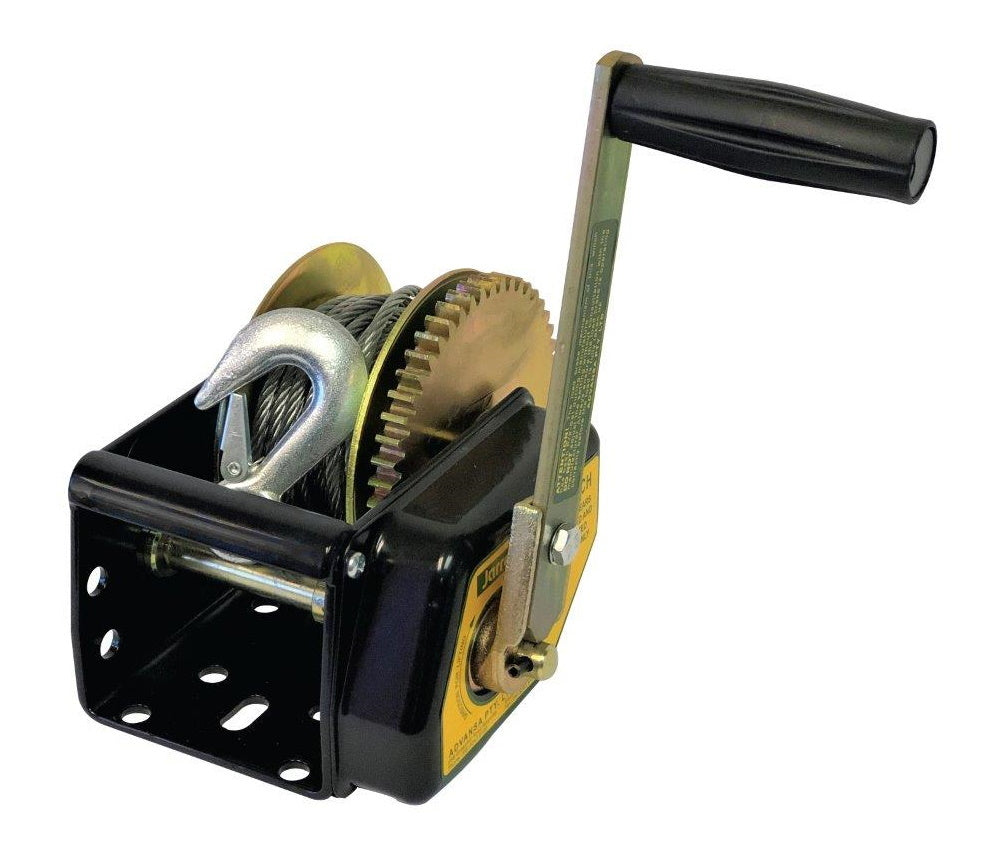

Jarrett 8000 Series Brake Winch 5:1 - 7.5m x 5mm Cable & Snap Hook - Winch rated at 300kg capacity.
Note: F18230 is used on 300kg Backsaver Crane – Product Code: F12643 Recommended for lifting applications. Self actuating brake requires a minimum of 18kg to operate safely. Winches are not intended for the movement of people. (PREVIOUSLY known as F10340) Both of the above photos are taken from different angles.
(WB-F18230)
Note: Common user problem with the 8000 Series range of winches is the brake mechanism does not work when first assembled. When packaged, the winch and handle are separate and need to be assembled as per the instructions included. Handle Assembly is: The handle adaptor is turned clockwise until the ratchet is engaged prior to attaching the handle and securing with screw.
8000 Series Brake Winch
Model: F18230 Gear Ratio: 5:1 Application: Lifting Rated Capacity: 300kg (2940N) Mass (Winch only): 6kg Type of Brake: Self Actuating Drum Diameter: 50mm Flange Diameter: 130mm Drum Width: 52mm Cable size: Ø5mm Maximum Cable Capacity: 15m x Ø5mm Max. Effort on handle at Rated Load: 26kg Cable Breaking Strain: 1855kg Cable (Galv) as supplied: 7.5m x Ø5mm Fastening Device: Snap Hook
F18230 is used on 300kg Backsaver Crane – Product Code: F12643 F18260 is used on 500kg Backsaver Crane – Product Code: F19001
