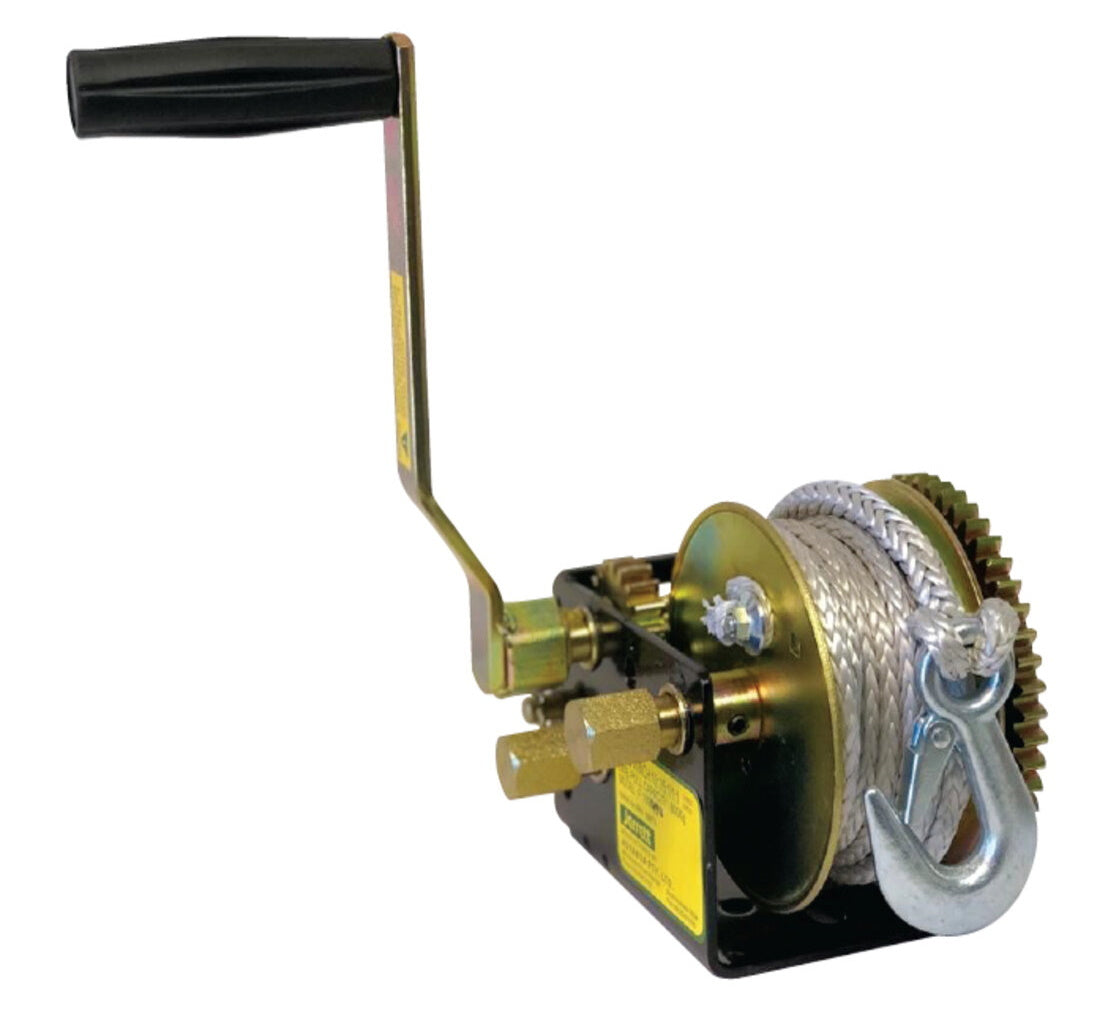

Jarrett Winch 3 Speed 10:1/5:1/1:1 (800kg) F10949-

This Jarret boat winch is a dependable top quality product tested by the South Australian Institute of Technology. All winch gearings are supported between sintered bronze bearings. Pinion gears and two way ratchet pawl are case hardened for long wear and all gears are machined not pressed. Complete with Dynex Fibre rope and snap hook.

The Dynex Fibre rope combines good strength retention with good flexibility and dynamic properties. Say good bye to metal splinters!

Winch

• Heavy duty 4mm winch body
• Steel bushes
• Machined gears
• Spare parts available
• Electroplated zinc cobalt handle
• Powder coated finish
• Detachable handle - Handle position interchangeable to change gear ratio

Fibre Rope is Dyneema (HMPE).

• Exceeds the strength of steel wire ropes of same diameter while floating on water
• Has low elongation properties
• Is extremely flexible, yielding easy handling in all respects
• Has good UV resistance and excellent resistance to chemicals

Note: This winch is not to be used for lifting.

This winch is recommended for any boat size over 6 metres.

Gear Ratios:
1:1- for fast retrieval of slack cable
for retrieval of the boat approx. two thirds up the trailer, when handle effort becomes uncomfortable, then use 10:1 ratio
to complete the retrieval of the boat.

Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers.
