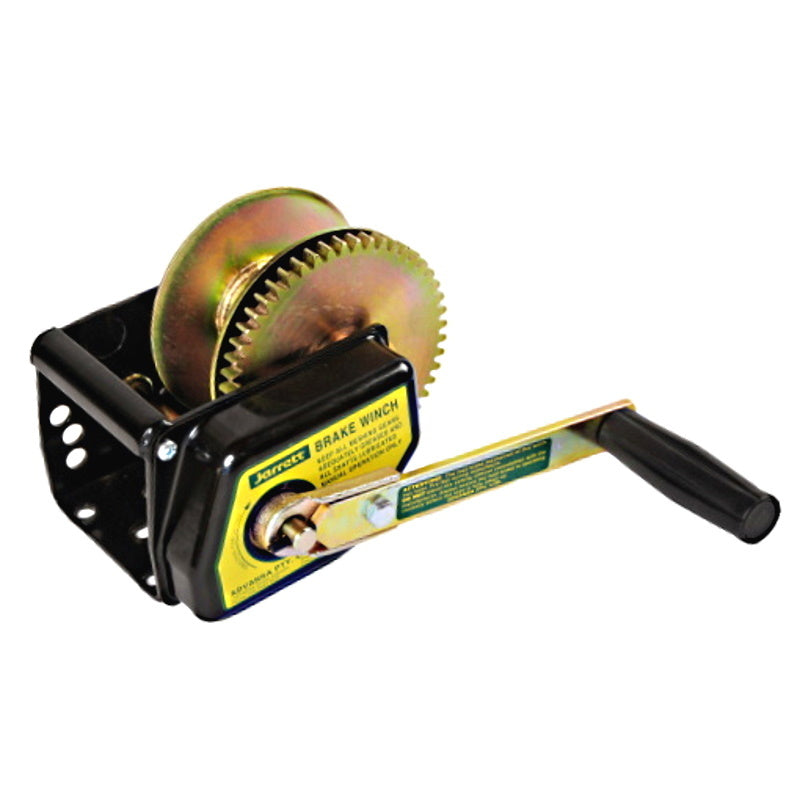

Jarrett 8000 Series Brake Winch 3:1 - No Cable - Winch rated at 200kg capacity.
Note: Webbing can be used on F18220 provided that a snap hook is used (not an āSā hook); and the winch is not used for lifting. Recommended for lifting applications. Self actuating brake requires a minimum of 18kg to operate safely. Winches are not intended for the movement of people.
(WB-F18220)
Note: Common user problem with the 8000 Series range of winches is the brake mechanism does not work when first assembled. When packaged, the winch and handle are separate and need to be assembled as per the instructions included. Handle Assembly is: The handle adaptor is turned clockwise until the ratchet is engaged prior to attaching the handle and securing with screw.
Ā
8000 Series Brake Winch
Model (Winch only) : F18220 Gear Ratio: 3:1 Application: Lifting Rated Capacity: 200kg (1960N) Mass (Winch only): 6kg Type of Brake: Self Actuating Drum Diameter: 50mm Flange Diameter: 130mm Drum Width: 52mm Maximum Cable Capacity: 15m x Ć5mm Maximum Fibre Rope Capacity: 12m x Ć6mm Max. Effort on handle at Rated Load: 22.8 kg
