Jarrett Brake Winch 15:1 (1250kg) F11650-Bare Jarrett

Jarrett Brake Winch 15:1 (1250kg) F11650-Bare

Name: Jarrett Brake Winch 15:1 (1250kg) F11650-Bare
Brand: Jarrett
SKU: WB-F11650
Price: 1053.29 AUD
Availability: InStock

SKU WB-F11650

$1,053.29

or pay now with

Questions? for expert advice, or read our buying guides

Overview

** Due to the weight of the winch, if not using 'In Store Pickup' **

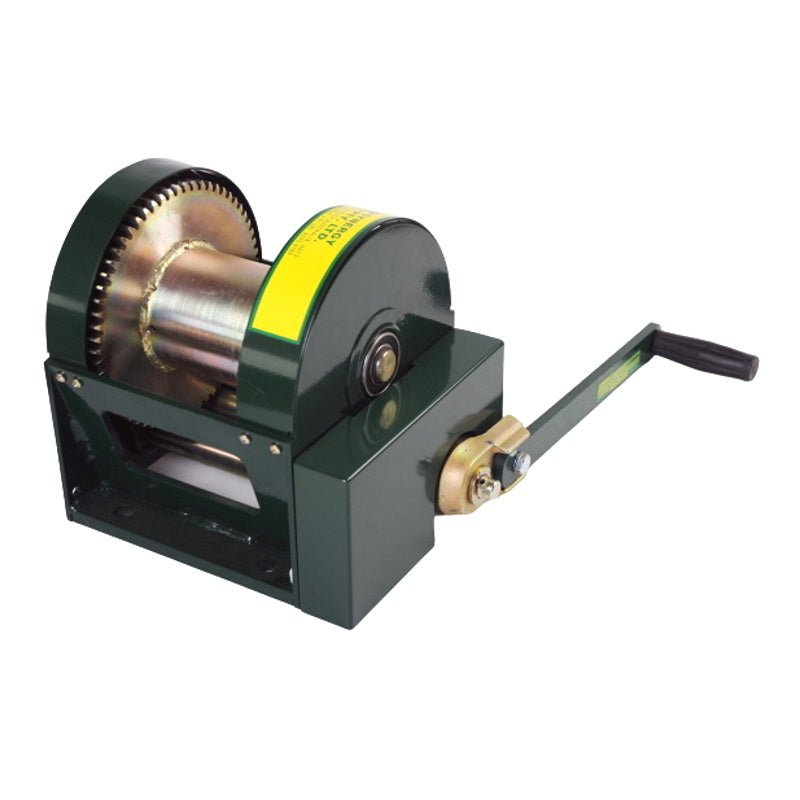

Jarrett 600 Series Brake Winch 15:1 (1250kg) - No Cable - Winch Only.

The Jarrett ‘600’ series large drum capacity load brake winch contains a self activated, dual friction mechanism that automatically locks the load in position when the handle is released. This allows the operator total control over the winch, whilst preventing accidental loss of load and at the same time eliminates the danger of free spinning handle.

(pdf link) if required, prior to purchase.

Heavy duty 4mm winch body
Steel bushes
Self actuating brake mechanism
Heavy duty friction disc pads
Spare parts available
Electroplated zinc cobalt, powder coated finish
Removable handle

Webbing cannot be used on this winch.

Self actuating brake requires a minimum of 18kg to operate safely.

These winches are recommended for lifting and pulling applications within the rated capacity. Suitable for rural and farming applications.

Winches are not intended for the movement of people.

** Due to the weight of the winch, if not using 'In Store Pickup' **

(WB-F11650)

600 Series Brake Winch

Model (Winch only): F11650
Gear Ratio: 15:1
Application: Lifting / Pulling
Rated Lifting Capacity: 1250kg (12250N)
Mass (Winch only): 26kg
Type of Brake: Self Actuating
Drum Diameter: 100mm
Flange Diameter: 180mm
Drum Width: 135mm
Maximum Cable Capacity (Ø 6mm) 45m not supplied
Maximum Cable Capacity (Ø 8mm) 22m not supplied
Maximum Cable Capacity (Ø 10mm) 15m not supplied
Max. Effort on handle at Rated Load: 22kg

Recommended minimum G2070 7/19 Galvanised steel core cable to be fitted to winch
Minimum cable size: Ø 8mm
Cable breaking strain: Ø 8mm - 3390kg
Ø 10mm - 5300kg
