Safe and Secure Diesel Storage

The quick, convenient way to extend your vehicles range without any major modifications or large expense!

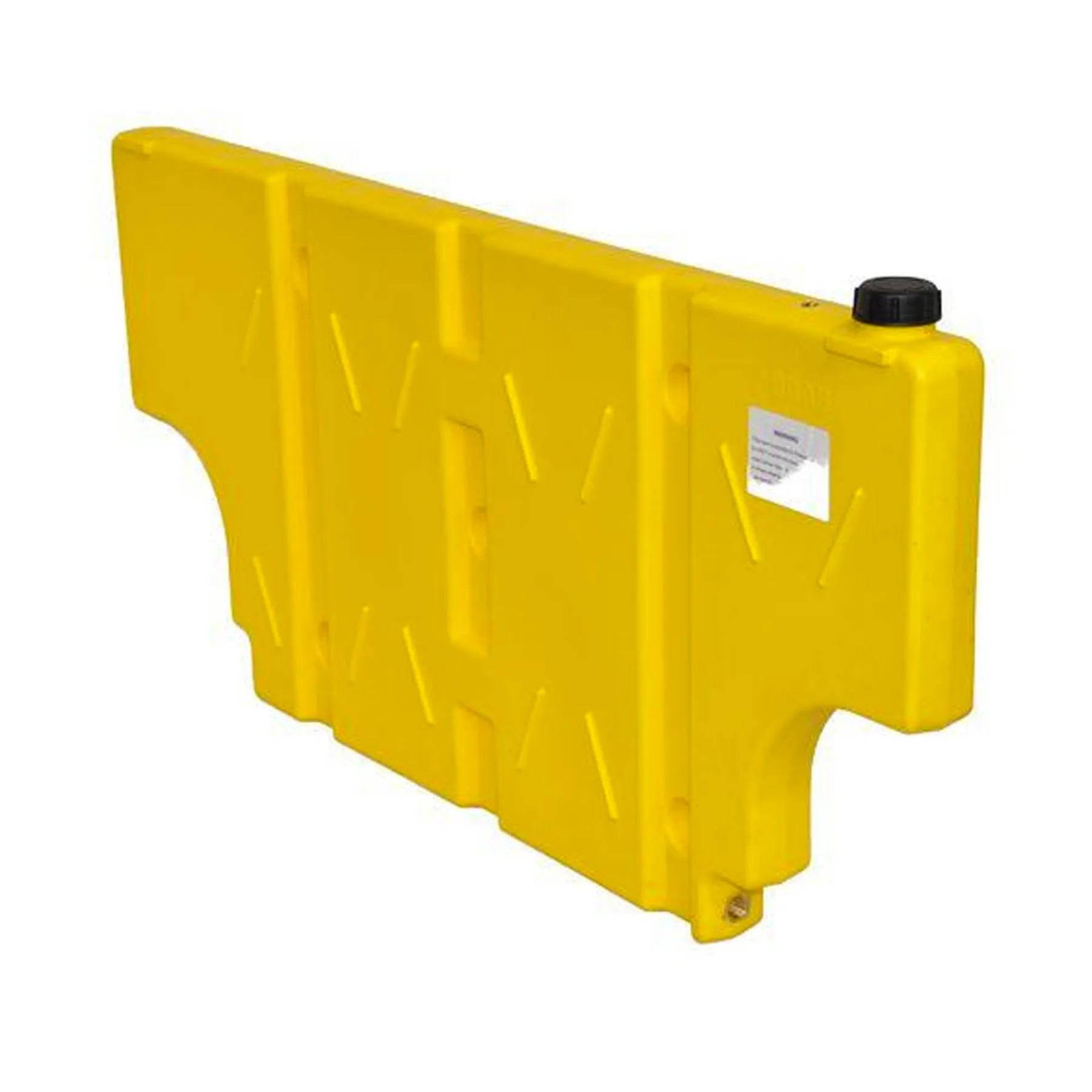

BOAB Poly Diesel Tanks are a ‘drop in’ installation with a simple gravity fuel feed. Poly Diesel Tank 42 Lt Vertical with wheel arch cut-outs. (Dual Cab ute or Wagon Mounting).

Durable and Reliable Fuel Storage

Keep your diesel fuel safe and secure with the 42 Litre Vertical Poly Diesel Tank by Boab. Constructed with high-density polyethylene, this tank is built to withstand harsh weather conditions and rough handling. It's also UV stabilized to prevent cracking and fading, ensuring long-lasting use.

Easy to Transport and Install

Vertical design with wheel arch cut-outs for use in most wagons and utes

The brass outlet fitting is 1/2″ BSPT female thread and a hose adaptor to suit 3/8″ (10mm) hose is included. At the top of the tank near the filler cap is a 1/4″ BSP brass insert and included with the tank is a vent and short hose kit. This allows the tank to breath and the short 500mm hose allows the vent to be fitted well above the top of tank.

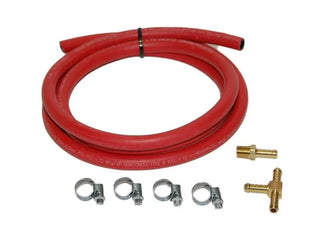

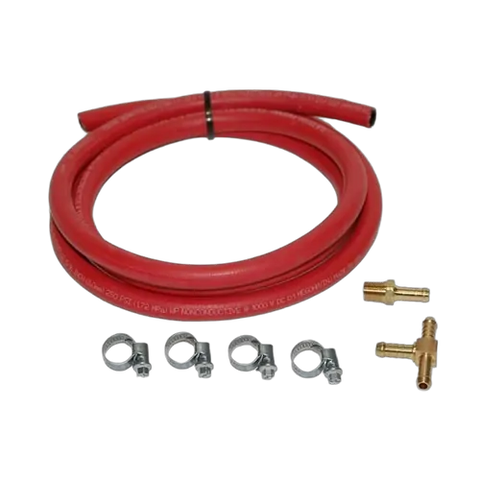

If mounting the tank inside a vehicle we highly recommend using our optional vent extension kit (Part Number: FTUVK) which can either extend the location of the standard vent or more preferably allow the tank to be connected to the vehicles main fuel tank ventilation system.

Features

• Vertical design with wheel arch cut-outs for use in most wagons and utes
• Screw cap filler
• 1/2” BSPT brass outlet in recess
• An additional small rebate contains the brass outlet
• UV Stabilised Material

Dimensions & Weight

• Height: 600mm
• Width: 75mm
• Length: 1295mm
• Cut out dimensions: 275mm height x 200mm width
• Total Weight: 7Kg
