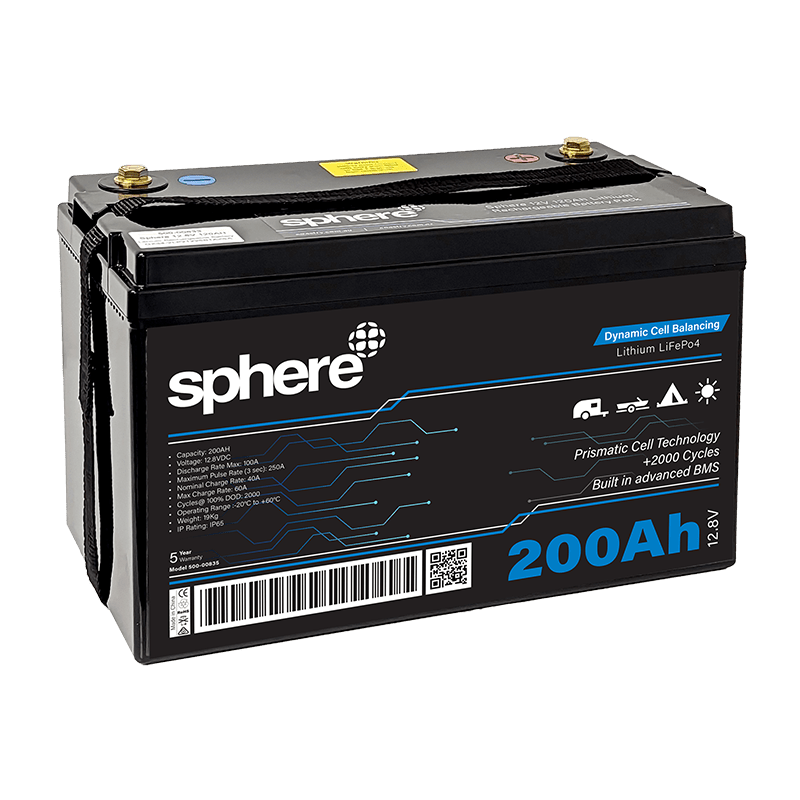

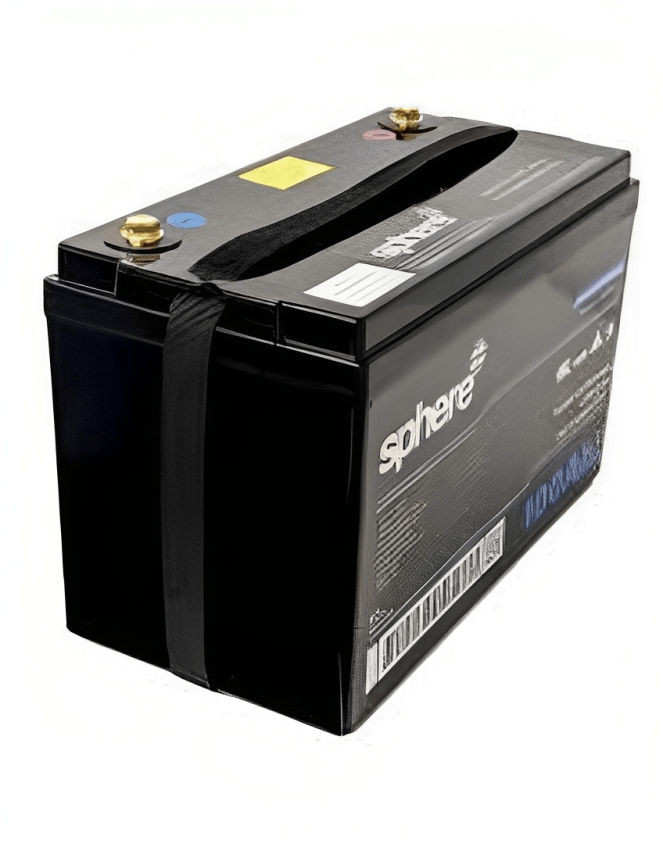

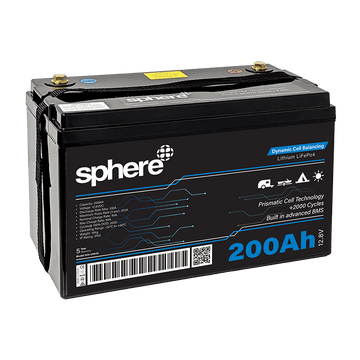

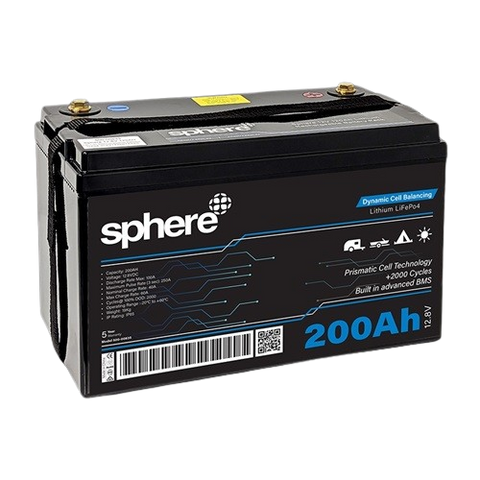

12V 200AH Lithium Rechargeable Prismatic Battery by Sphere

12V 200AH Lithium Rechargeable Prismatic Battery by Sphere

$2,249.00

The Sphere 12V 200AH Lithium LiFePO4 Prismatic Battery is built for serious off-grid power demands. Featuring advanced LiFePO4 prismatic cells and a 150A Battery Management System (BMS) with Dynamic Cell Balancing technology, it delivers consistent high-output energy with a rated discharge current of up to 250A peak. Rated at 2,000 cycles at 100% DoD and 4,000 cycles at 50% DoD, this battery offers exceptional longevity compared to traditional AGM alternatives — all in a heavy-duty ABS case with an IP65 water-ingress rating for confidence in harsh Australian conditions.

Purpose-built for caravan, RV, motorhome, 4WD, and off-road setups, this Sphere battery is the foundation of a capable 12V power system. Run your fridge, lights, CPAP, inverter, and camp accessories overnight without anxiety. Two batteries can be connected in series for a 24V system, or up to four connected in parallel for a 400AH bank — giving serious overlanders and caravanners the flexibility to scale their power setup to match their adventure. Maintenance-free by design and fitted with grab handles for easy handling, it's ready to install and go wherever your rig takes you across Australia.

Key Features

150A BMS with Dynamic Cell Balancing for safe, efficient power delivery
2,000 cycles at 100% DoD / 4,000 cycles at 50% DoD for outstanding longevity
IP65 water-ingress rating — tough enough for Australian outback and coastal conditions
Series (2 batteries, 24V) or parallel (up to 4 batteries, 400AH) configuration
High-discharge rated up to 250A peak with heavy-duty M8 terminals

Features

+

Lithium LiFePO4 prismatic cell chemistry for stable, safe energy storage
150A Battery Management System (BMS) with advanced protection circuits
Dynamic Cell Balancing technology for consistent cell performance across the battery life
2,000 cycles rated at 100% depth of discharge (DoD)
4,000 cycles rated at 50% depth of discharge (DoD)
IP65 water-ingress rating for all-weather durability
High-discharge current up to 250A peak
Connect up to 2 batteries in series for a 24V system
Connect up to 4 batteries in parallel for up to 400AH capacity
Heavy-duty ABS case with M8 terminals and integrated grab handle
Over-discharge, over-charge, short-circuit, and over-temperature protection via BMS
Maintenance-free — no watering, venting, or equalisation required
5-year manufacturer warranty

Specifications

+

Sphere 200AH
Model # 500-00835
Capacity 200AH
Voltage 12.8VDC
Discharge Rate Max 100A
Maximum Pulse Rate (3 sec) 250A
Nominal Charge Rate 40A
Max Charge Rate 60A
Cycles@ 100% DOD 2000
Operating Range -20°C to +60°C
Weight 19Kg

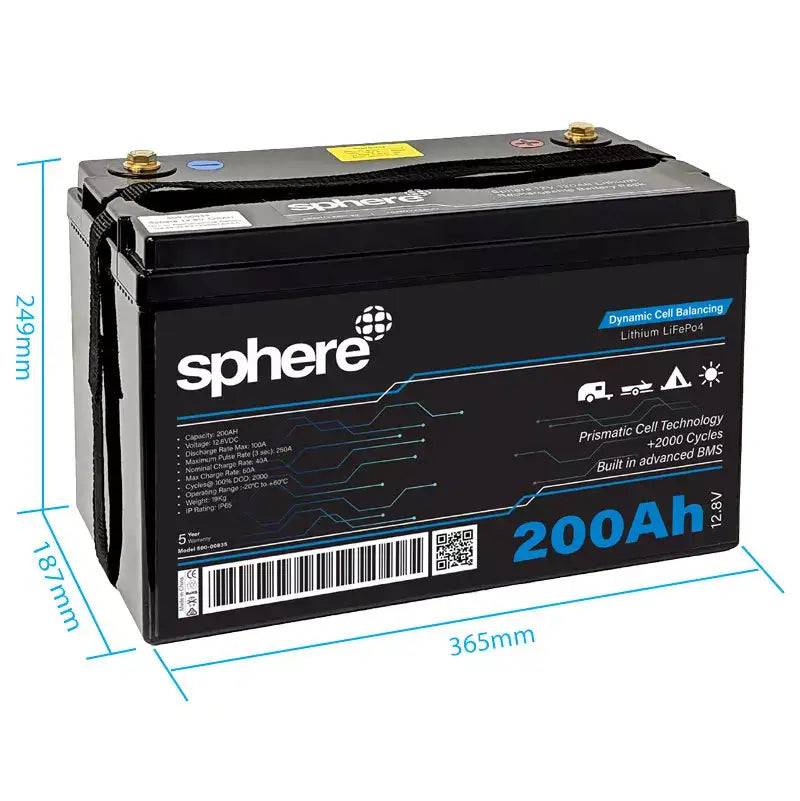

Dimensions mm (Excl Terminals) 365 x 187 x 249
IP Rating IP65
