X-Bull 12T Porta Power Hydraulic Kit – Body Repair Ram & Pump Set

X-Bull 12T Porta Power Hydraulic Kit – Body Repair Ram & Pump Set X-Bull

X-Bull 12T Porta Power Hydraulic Kit – Body Repair Ram & Pump Set

SKU V465-82027

$518.50

Maximum Capacity: 12 Tonnes
Ram Cylinder Material: Heat-treated steel with chrome-plated piston rod

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

12-tonne (120 kN) maximum hydraulic working load for heavy-duty body and frame repair

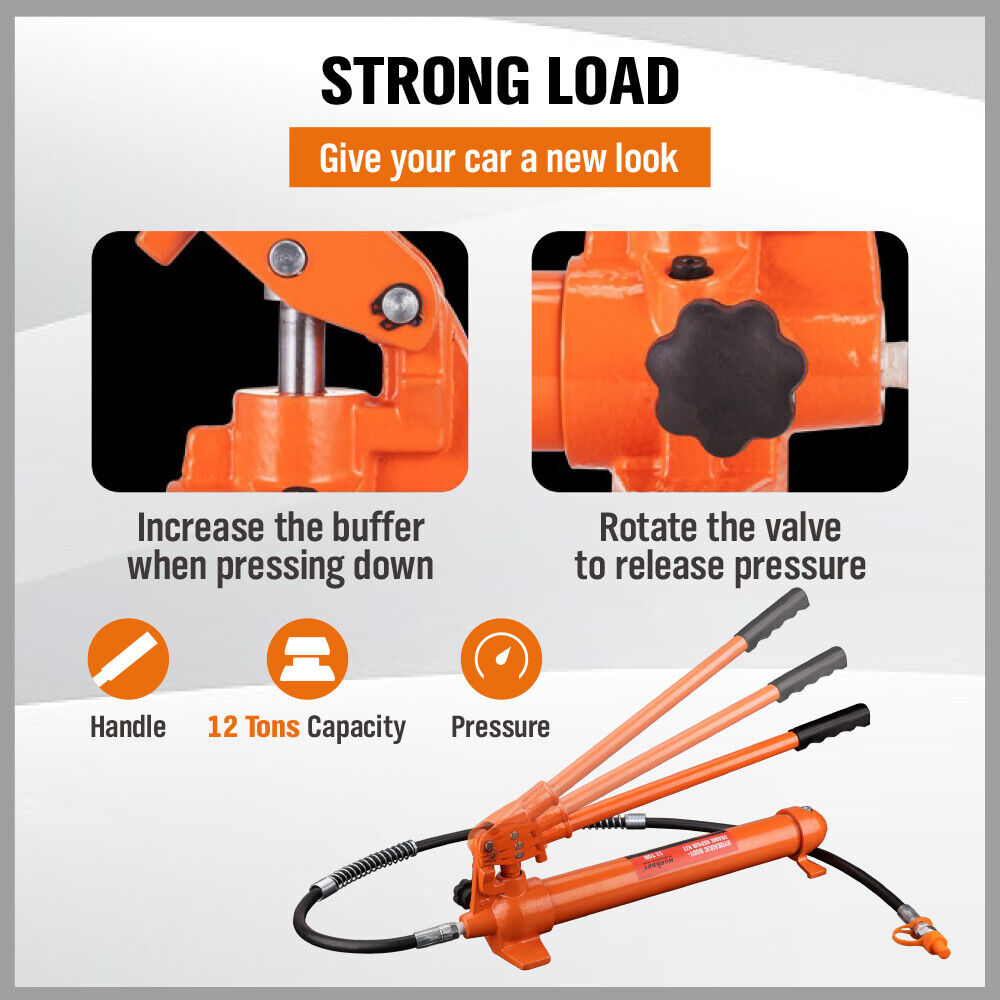

Single-acting hydraulic hand pump with built-in pressure relief valve for safe operation
1.8 m high-pressure braided oil hose with screw-type quick-release couplings

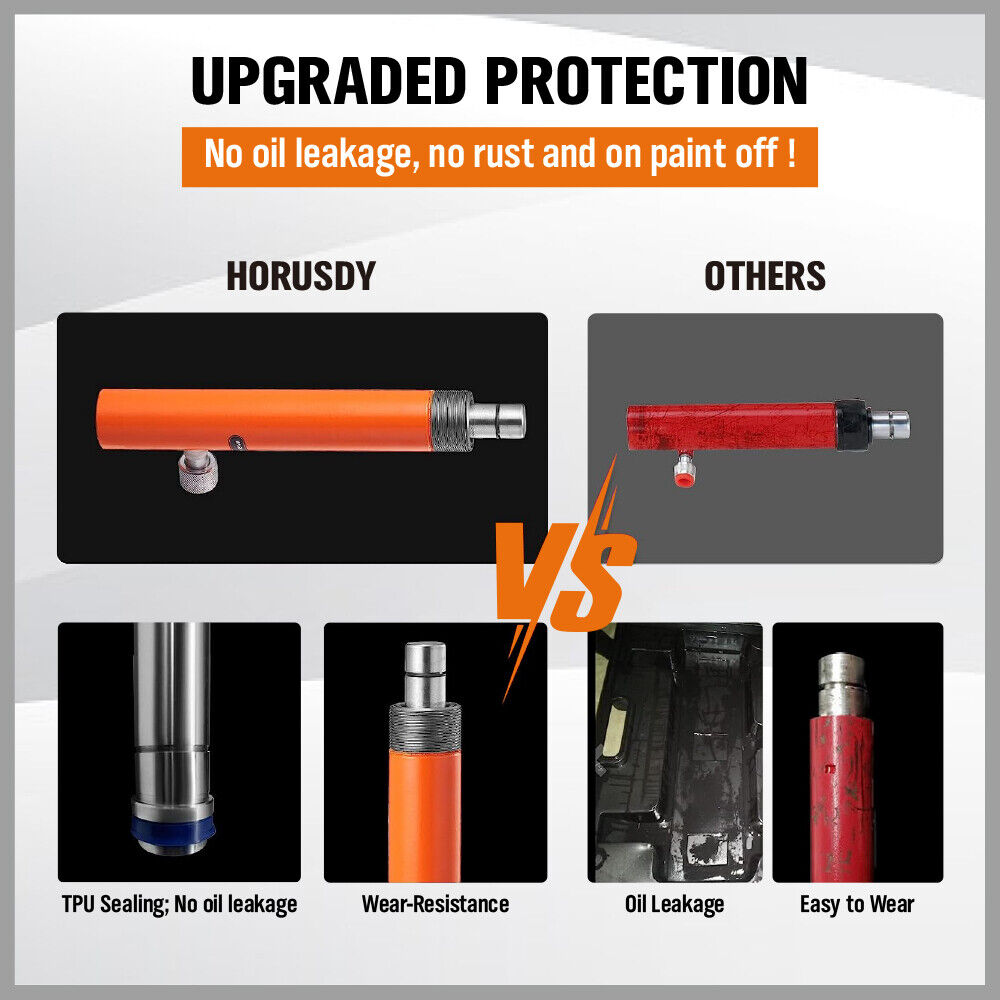

Heat-treated steel ram cylinder with chrome-plated piston rod for corrosion resistance

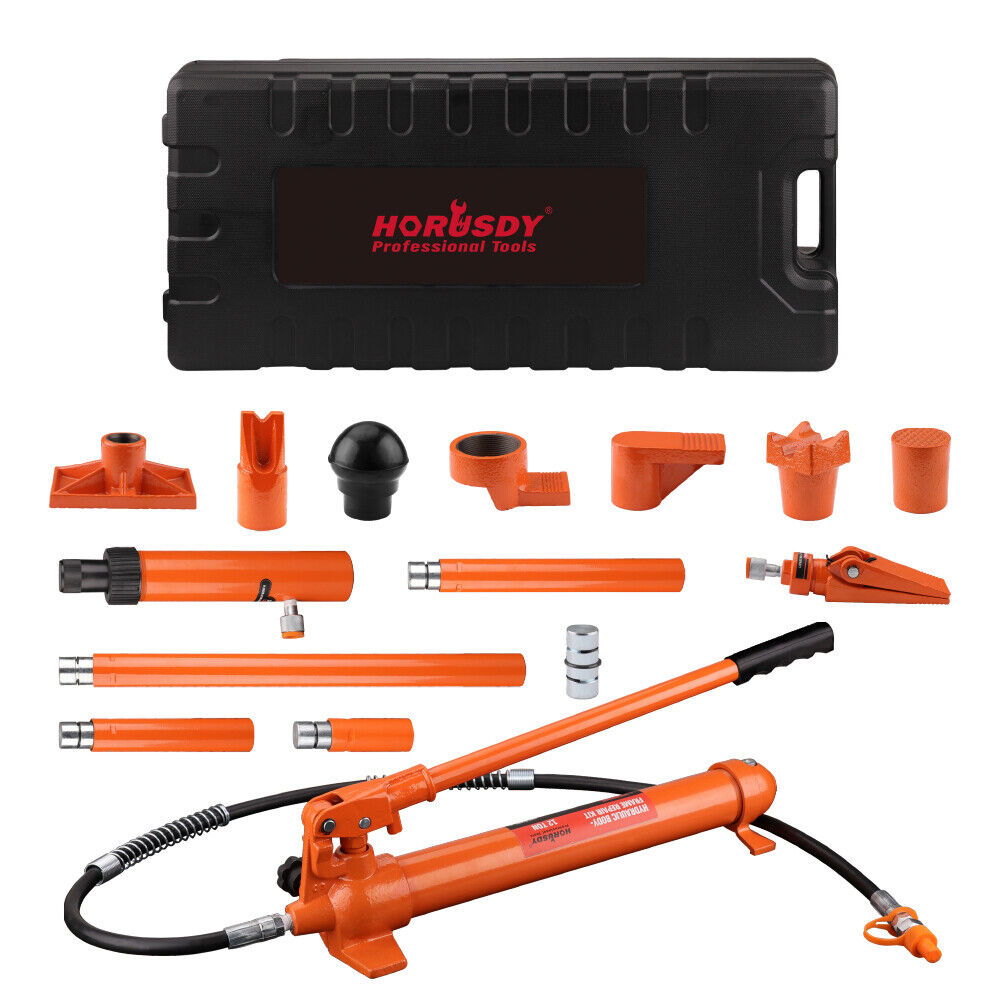

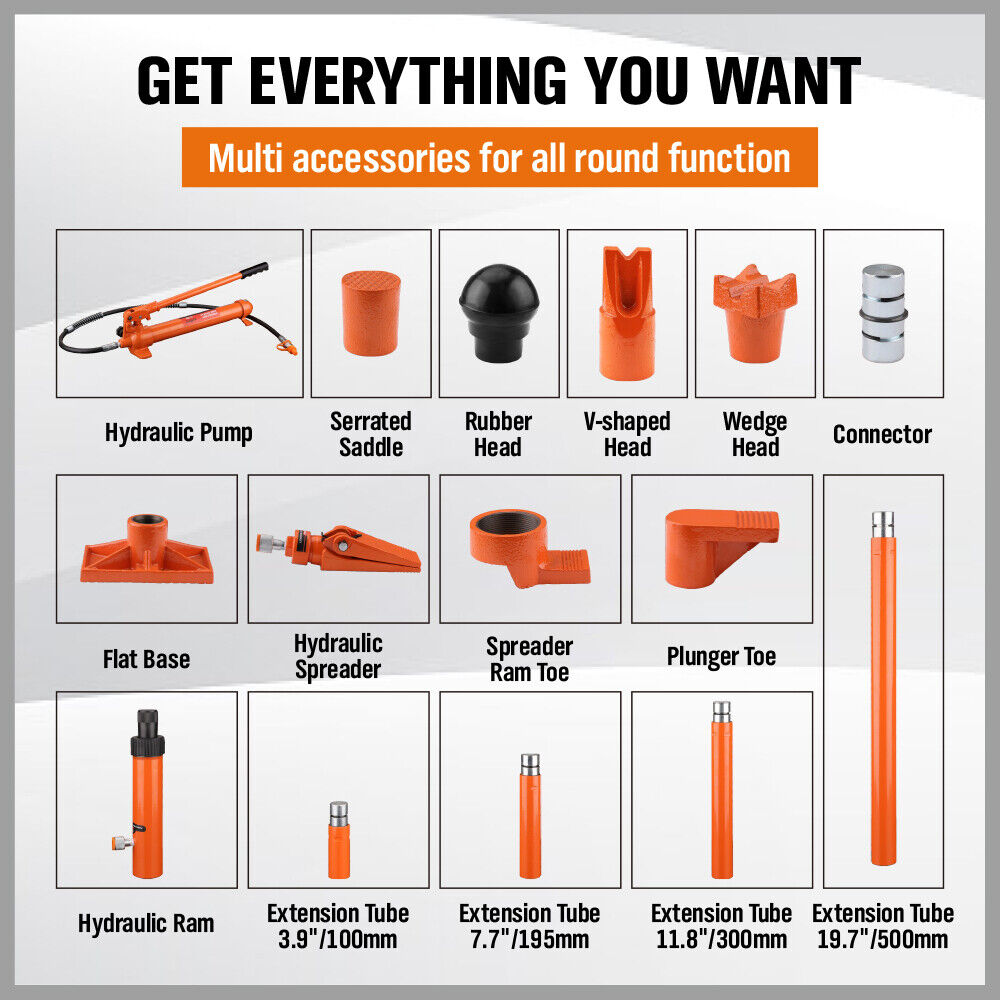

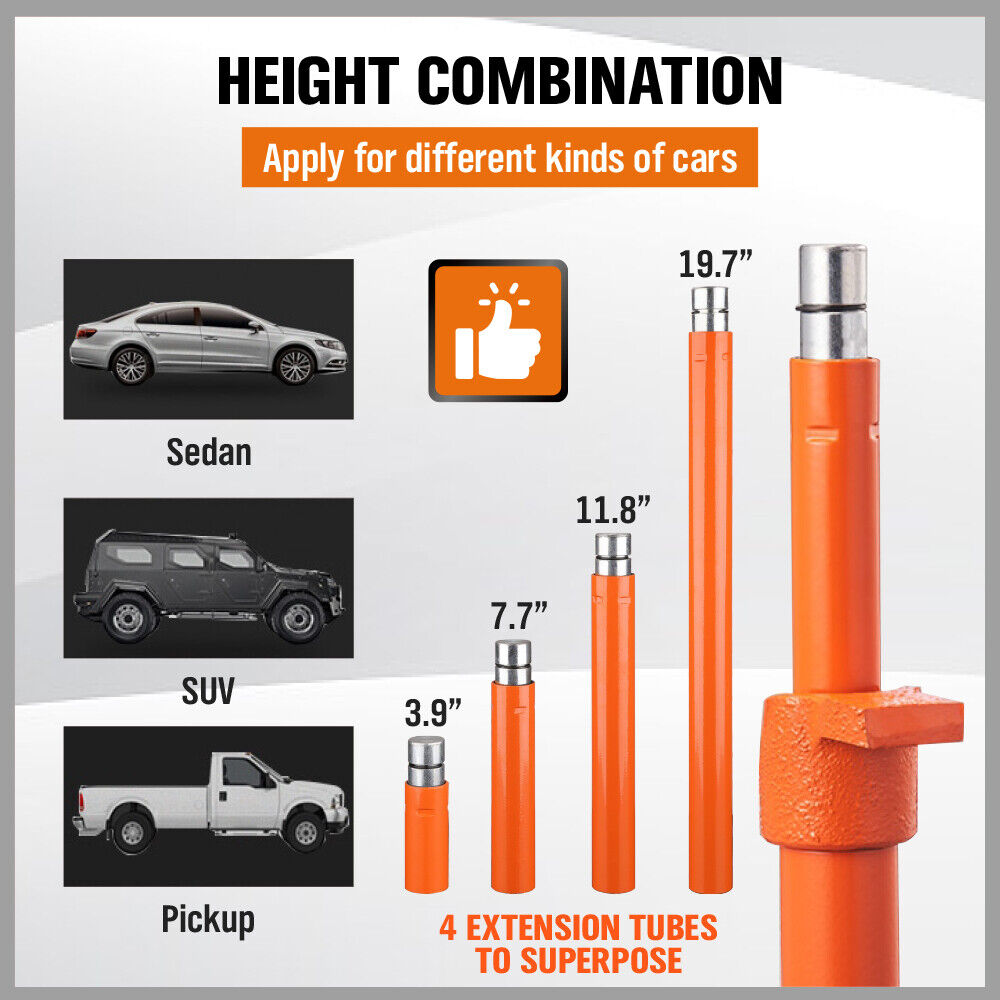

10-piece attachment set including toe rams, extension tubes, spreader plates, U-saddle, and base plate
Dual-function push and pull capability for versatile panel straightening and frame alignment

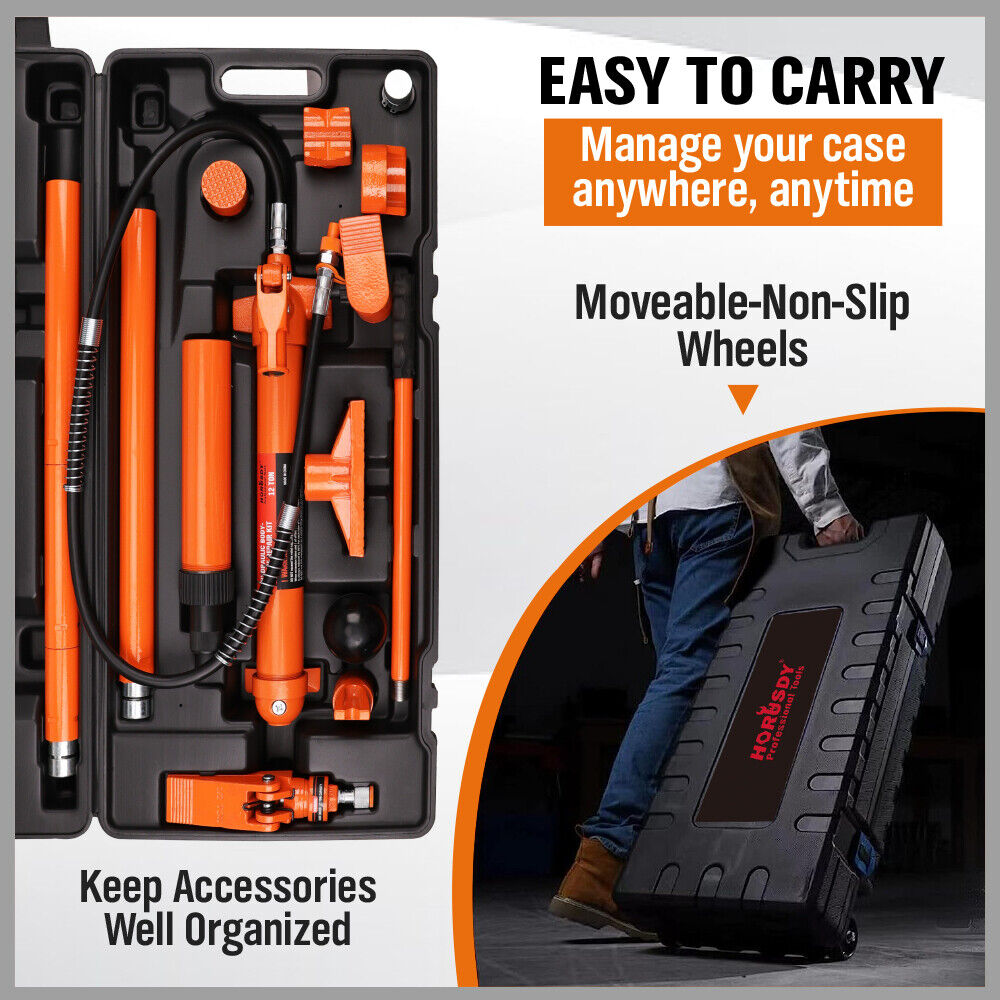

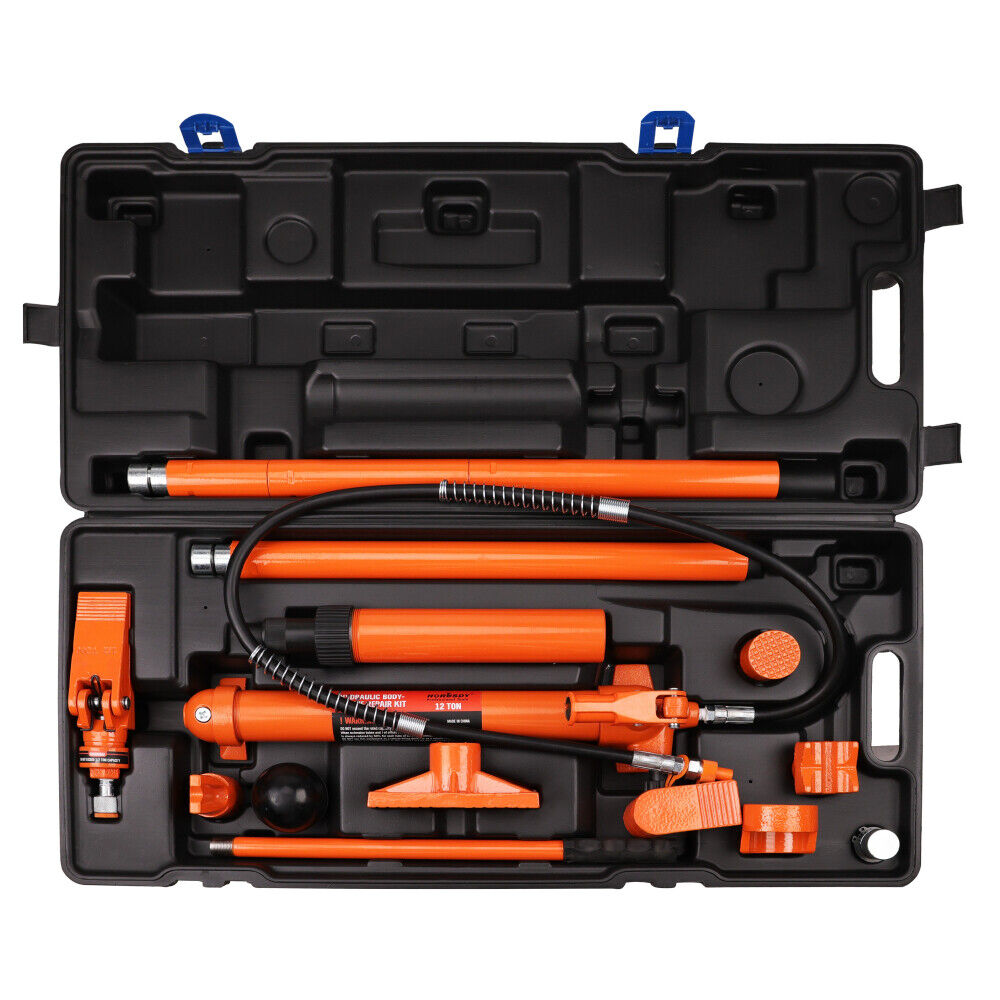

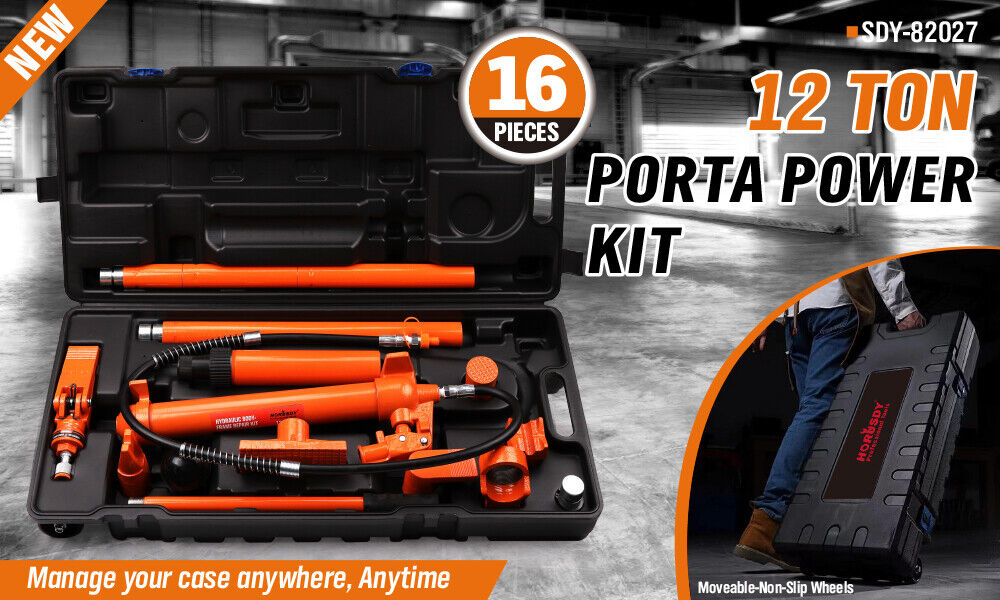

Compact blow-mould carry case with moulded insert keeps all components secure during transport and storage
Pre-filled with hydraulic oil — ready to use straight out of the box
Compatible with most standard hydraulic ram accessories via universal fittings
Overload pressure relief valve prevents damage to components during use

Overview

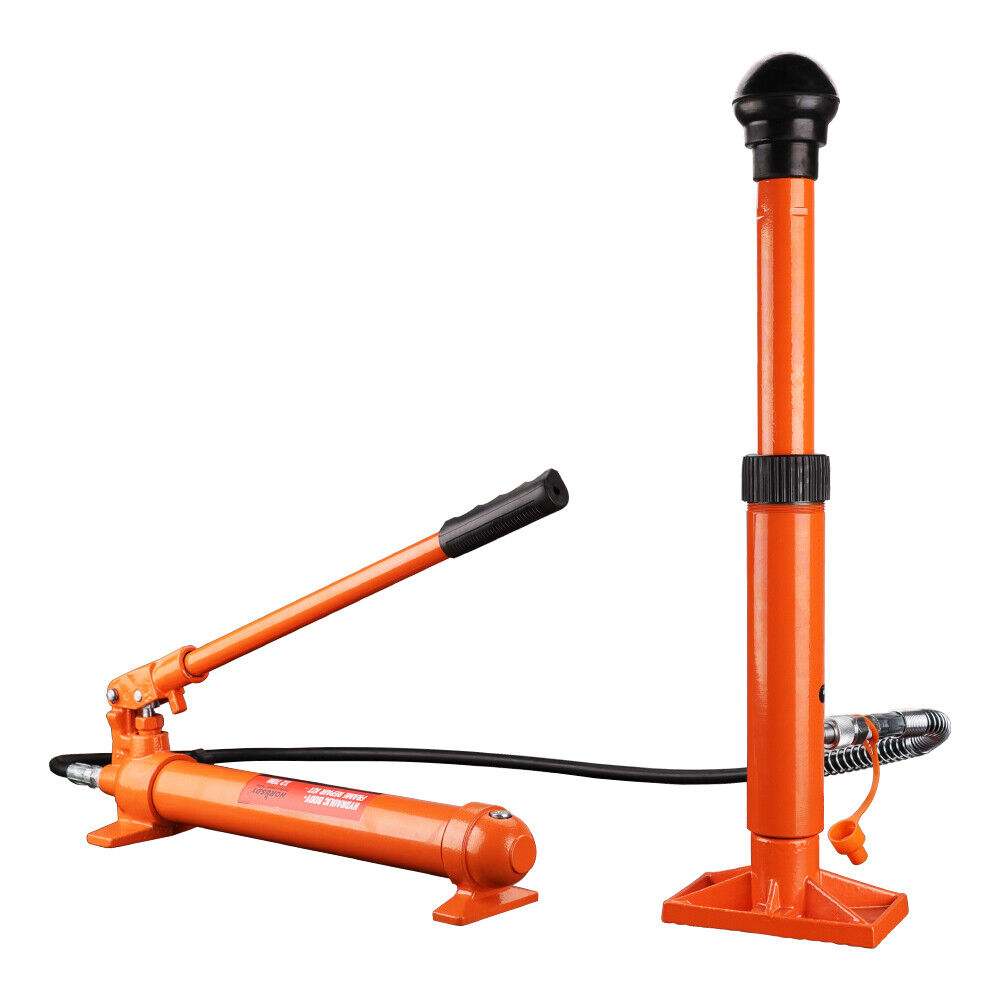

The X-Bull 12-Tonne Porta Power Kit delivers serious hydraulic muscle in a portable, self-contained package — purpose-built for automotive body repair, panel straightening, and structural realignment. At the heart of the kit is a 12-tonne (120 kN) hydraulic ram paired with a single-acting hand pump, connected via a high-pressure 1.8 m braided oil hose with quick-release couplings. The heavy-duty steel construction and heat-treated ram cylinder ensure the kit stands up to repeated use under demanding workshop and field conditions, while the compact carrying case keeps every attachment organised and ready to deploy.

Whether you're a 4WD owner straightening chassis rails after a bush bash, a caravanner realigning a bent drawbar at a remote campsite, or a home mechanic tackling panel and frame repairs in the shed, this kit gives you the leverage to do the job right without the cost of a panel beater. The comprehensive 10-piece attachment set — including toe rams, extension tubes, spreader plates, U-saddle, and base plate — means you can push, spread, bend, and straighten across a wide range of repair scenarios. It's the essential recovery and repair companion for serious Australian off-roaders and travelling caravanners who venture far from the nearest workshop.

Key Features

12-tonne (120 kN) hydraulic ram with heat-treated steel cylinder for maximum durability
Single-acting hand pump with 1.8 m high-pressure braided oil hose and quick-release couplings
Comprehensive 10-piece attachment set: toe rams, extension tubes, spreader plates, U-saddle, and base plate
Compact blow-mould carry case keeps all components securely stored and organised for transport
Dual push/pull capability for versatile panel straightening, frame realignment, and body repair

Common questions

Is 12 tonnes more than panel work needs?

The rating is what the ram can push, not what you should aim at a guard. Most panel jobs want gentle pressure spread over a plate, and a big ram working well below its limit moves slowly and predictably. That controllability is the real reason to buy capacity you rarely use.

Can I use it to hold a vehicle up?

No. A single-acting ram on a hand pump pushes and holds under pressure — it is not a stand, and hydraulics can lose pressure without warning. Use it to spread, straighten and align, then put the vehicle on rated axle stands before anybody puts a hand underneath it.

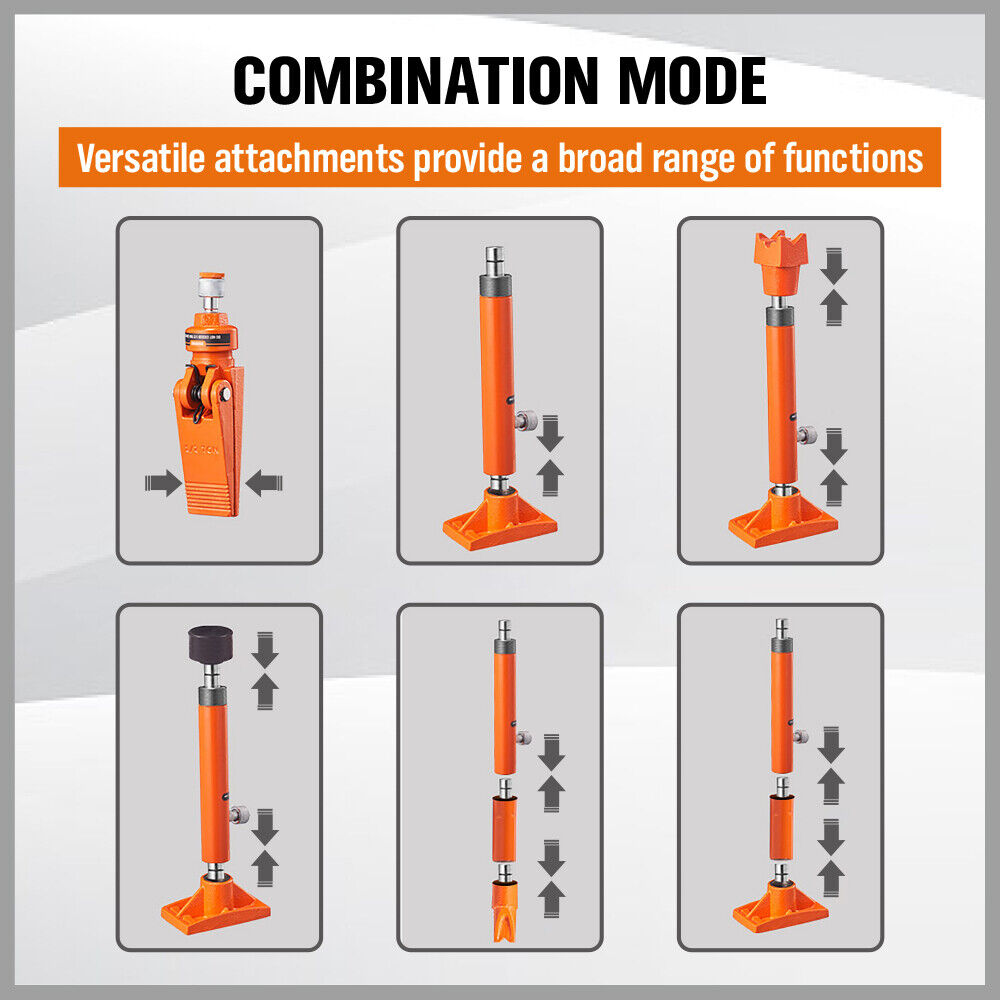

What do the attachments change?

The shape of the job, not the force available. Toe rams reach into a tight seam, spreaders open a crushed panel, extension tubes cross a wide bay. Plan the stack before you pump — a long assembly under load wants to skew sideways, and that is when things fly.

Delivery, returns & warranty

Shipping & Returns

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

12-month manufacturer warranty against defects in materials and workmanship.

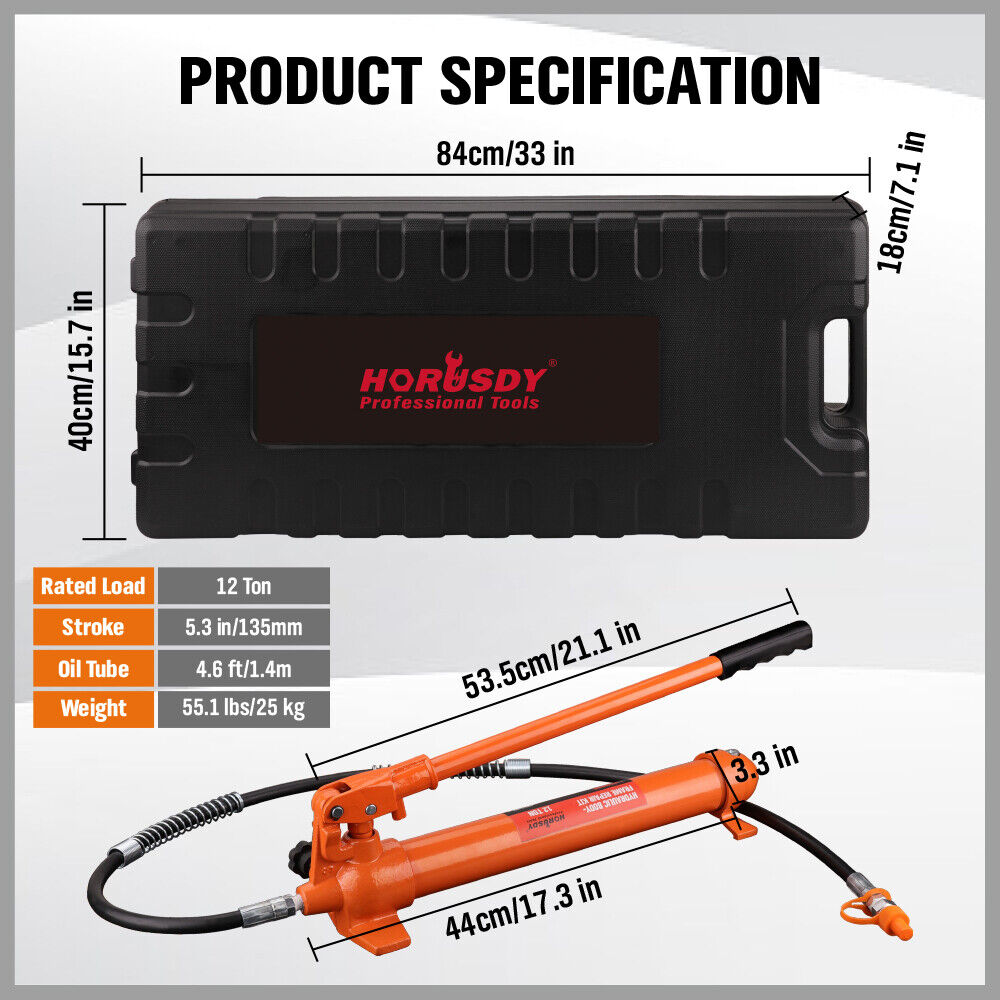

Specifications

Brand	X-Bull
SKU	V465-82027
Maximum Capacity	12 Tonnes (120 kN)
Pump Type	Single-acting hydraulic hand pump
Hose Length	1.8 m high-pressure braided oil hose
Hose Connection	Quick-release screw couplings
Ram Cylinder Material	Heat-treated steel with chrome-plated piston rod
Number of Pieces	10-piece attachment set
Attachments Included	Toe rams, extension tubes, spreader plates, U-saddle, base plate, return spring
Pressure Relief Valve	Yes — built-in overload protection
Oil Pre-filled	Yes — ready to use
Case Type	Blow-mould carry case with moulded insert
Application	Automotive body repair, panel straightening, frame and chassis realignment
Country of Origin	China
Warranty	12 months
