Key features
- Marine-grade SS316 stainless steel construction — exceptional corrosion resistance for saltwater, salt spray, and harsh coastal Australian conditions
- Reliable connection point for marine rigging, anchoring, and load-bearing applications
- Suitable for use in Australian saltwater and freshwater conditions — coastal, inland and offshore
- Built to withstand UV, salt spray, dust and corrosion that punish marine and outdoor hardware
- Backed by Frank Marine's Australian wholesale distribution network — replacement parts available
- Pairs with other Frank Marine fittings for a coordinated marine hardware setup
- Suitable for permanent installations and DIY upgrades on tinnies, runabouts, caravans and trailers
Common questions
When is a dee the right shape?
When the load runs in one direction along the shackle and nothing else is sharing the pin. The narrow body keeps everything in line and resists twisting, which is why it suits chain, a single strop or a rigging termination. Add a second line and you want a bow.
Will the pin come loose?
A screw pin will back out under vibration or a rolling load, and that is how shackles disappear overboard. On anything left set up, mouse the pin with stainless seizing wire, or step up to a captive bolt version. Finger tight then a nudge is the right feel.
How do I stop it seizing shut?
Anti-seize or lanolin on the thread when you assemble it, and never wind it up with a spanner for the sake of it. Stainless galls when threads are driven hard, and a galled pin means cutting the shackle off. Snug by hand is enough for the loads this handles.
Specifications
| Brand | Frank Marine |
|---|---|
| SKU / Model Number | 20004 |
| EAN / Barcode | 9346898003367 |

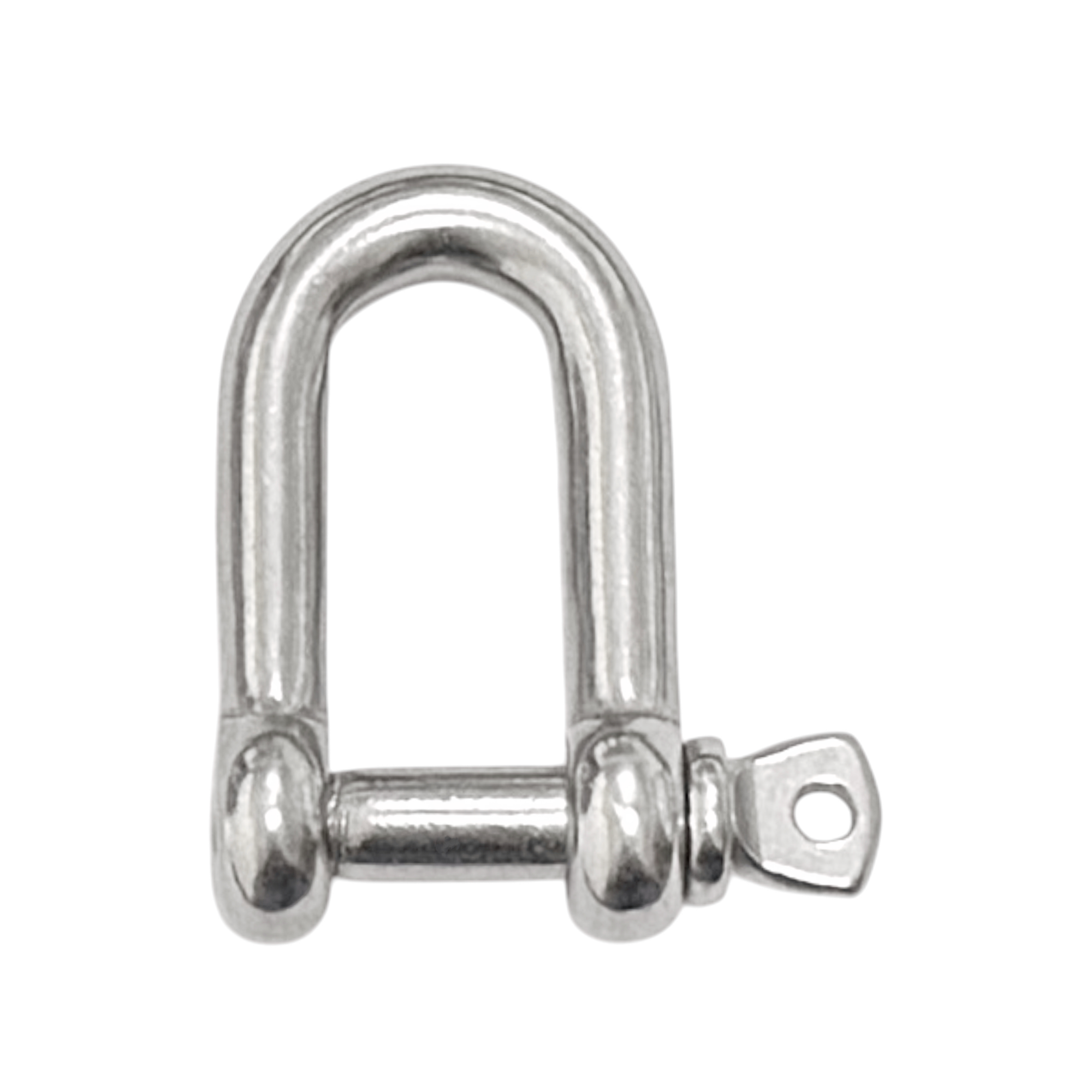

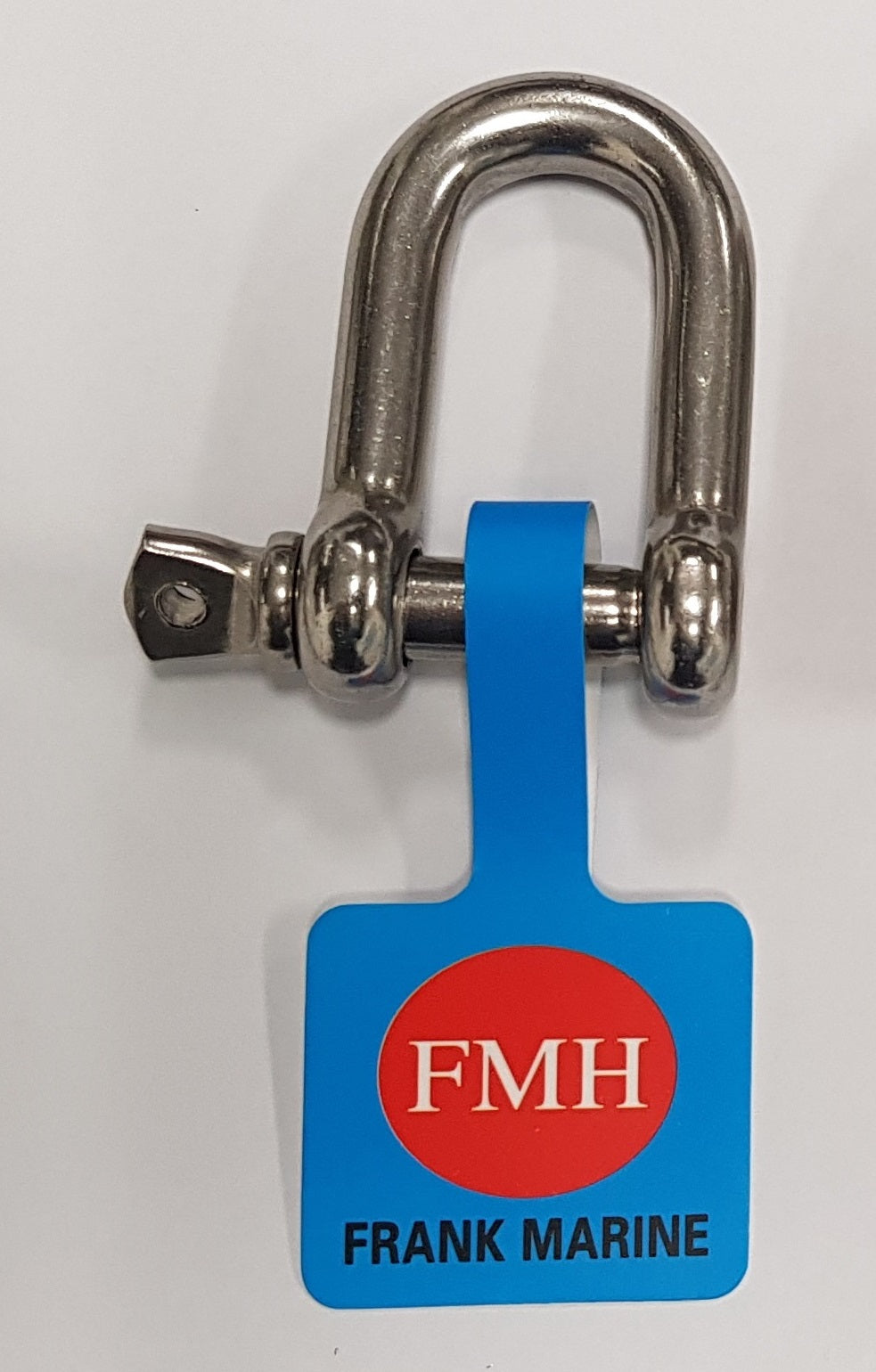

| Product Type | Dee Shackle |
| Material | Marine-grade SS316 stainless steel |
| Approx. Weight (incl. packaging) | 20.0 kg |
| Suitable Environments | Saltwater and freshwater |
| Country of Origin | China |
| Warranty | 12 months manufacturer's warranty against defects in materials and workmanship |
