Unmatched Safety and Convenience

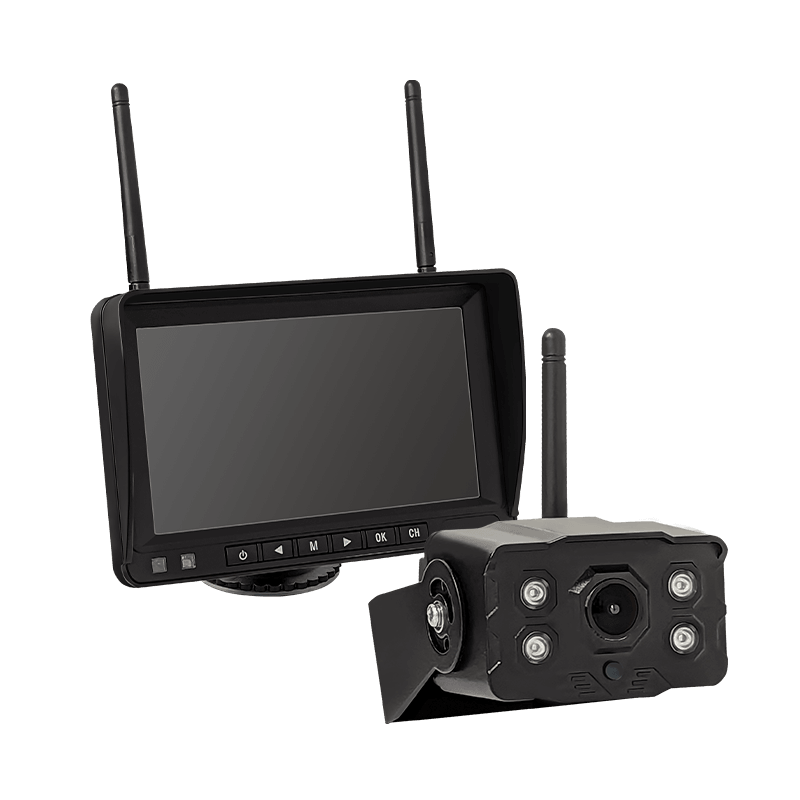

Introducing the Sphere wireless reversing camera range, designed to make your RV reversing experience safer and more convenient than ever before. Featuring a 7-inch digital wireless monitor, this camera system provides a crystal-clear view of your surroundings in real time, giving you the confidence to navigate any tight spot or challenging driving situation.

Capture Every Moment with Integrated DVR

The integrated DVR function means you can now record your trips by simply inserting an SD card into the monitor. This feature ensures that you never miss a moment and helps you keep track of any incidents or accidents that may occur while you're on the road.

Customizable Multi-Camera System

The Sphere Wireless Reversing Camera system supports up to four cameras, allowing you to install multiple cameras on your RV. This feature ensures that you can always see what's happening around your vehicle and avoid any potential collisions. Additionally, the system offers multiple viewing options, including single, split-screen, and quad viewing options. This flexibility allows you to customize your view and select the best option for your specific driving needs.

Monitor Specifications:

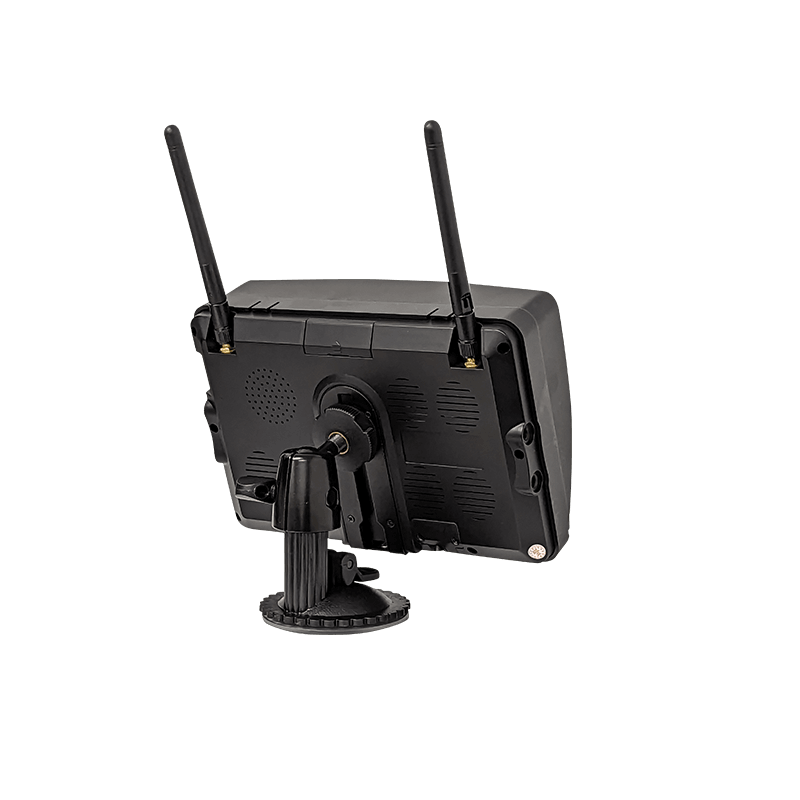

• 7-inch digital wireless monitor
• DVR function – Insert an SD card into the monitor and it will record the image from the paired cameras
• Supports up to 4 cameras
• Multiple Viewing Options - Single/Split Screen/Quad
• Operating frequency: 2400-2483.5MHZ
• Transmitted Power:18db
• Resolution: 1280 (H) X 1024 (V)
• Power Supply: DC12-36V
• Power consumption: <500mA
• Operating temperature: -20 ° C ~ 70° C
• Storage temperature: -30 ° C ~ 80° C

Camera Specifications:

• View Angle: 127° [H] 170° [D]
• Waterproof Rating: IP69
• Minimum illumination: 0.5lux
• Power Supply: DC12V-36V
• Operating frequency: 2400-2483.5MHZ
• Operating Temperature -20 ° C ~ + 70° C / RH 95%Max
• Storage Temperature -30° C ~ + 80° C / RH 95% Max
