Manan Caravan Roof Vent Hatch 355mm with 12V Fan and LED Light

$173.26

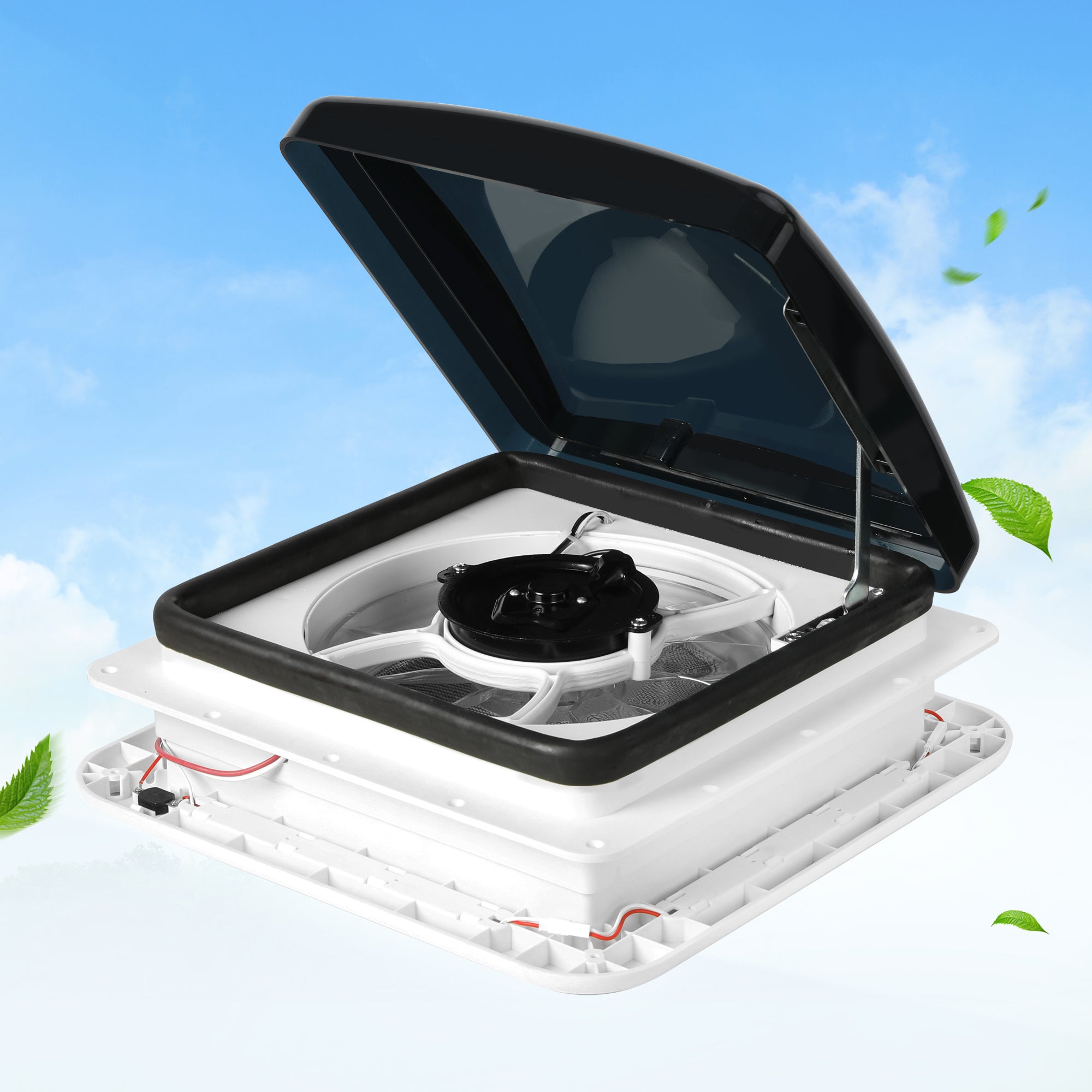

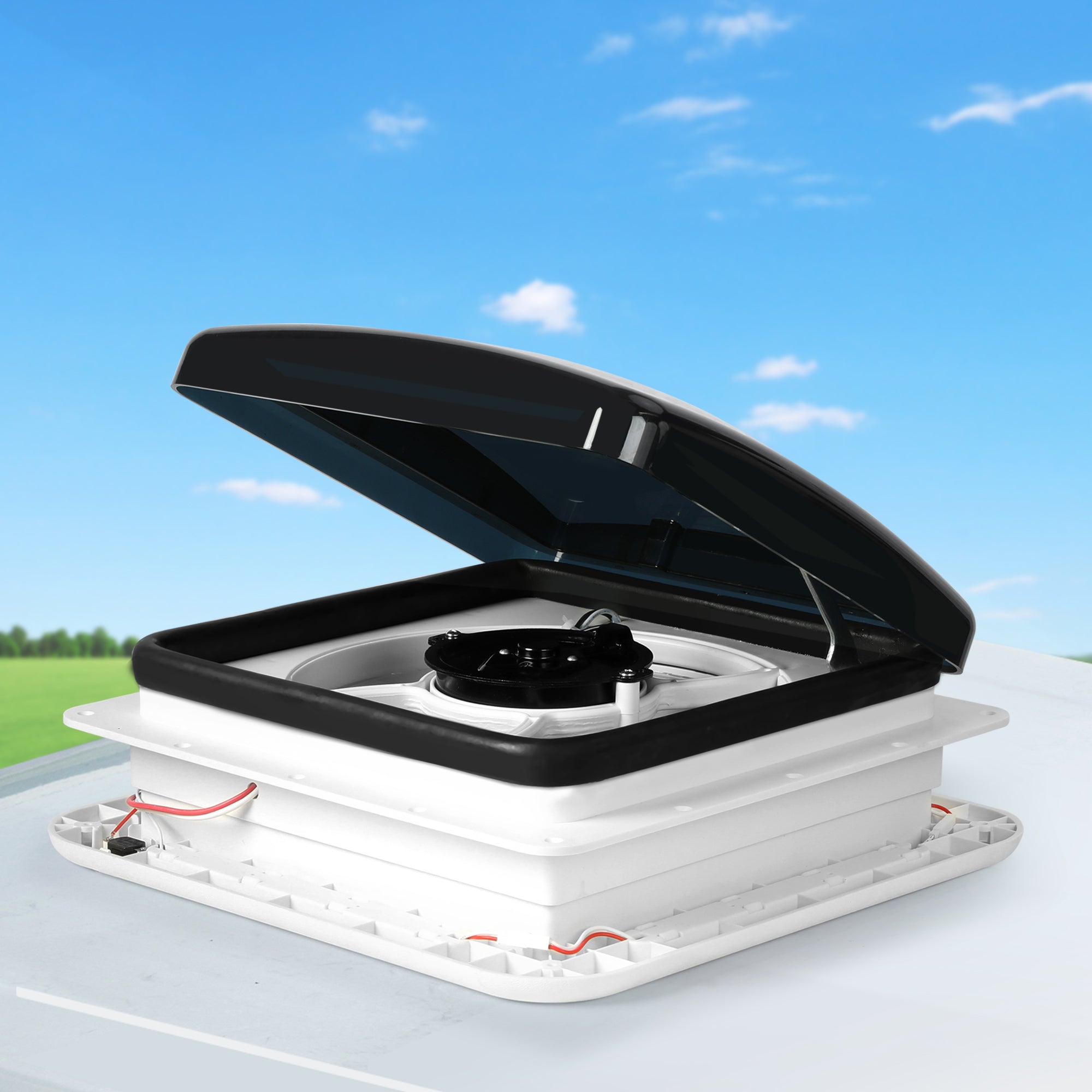

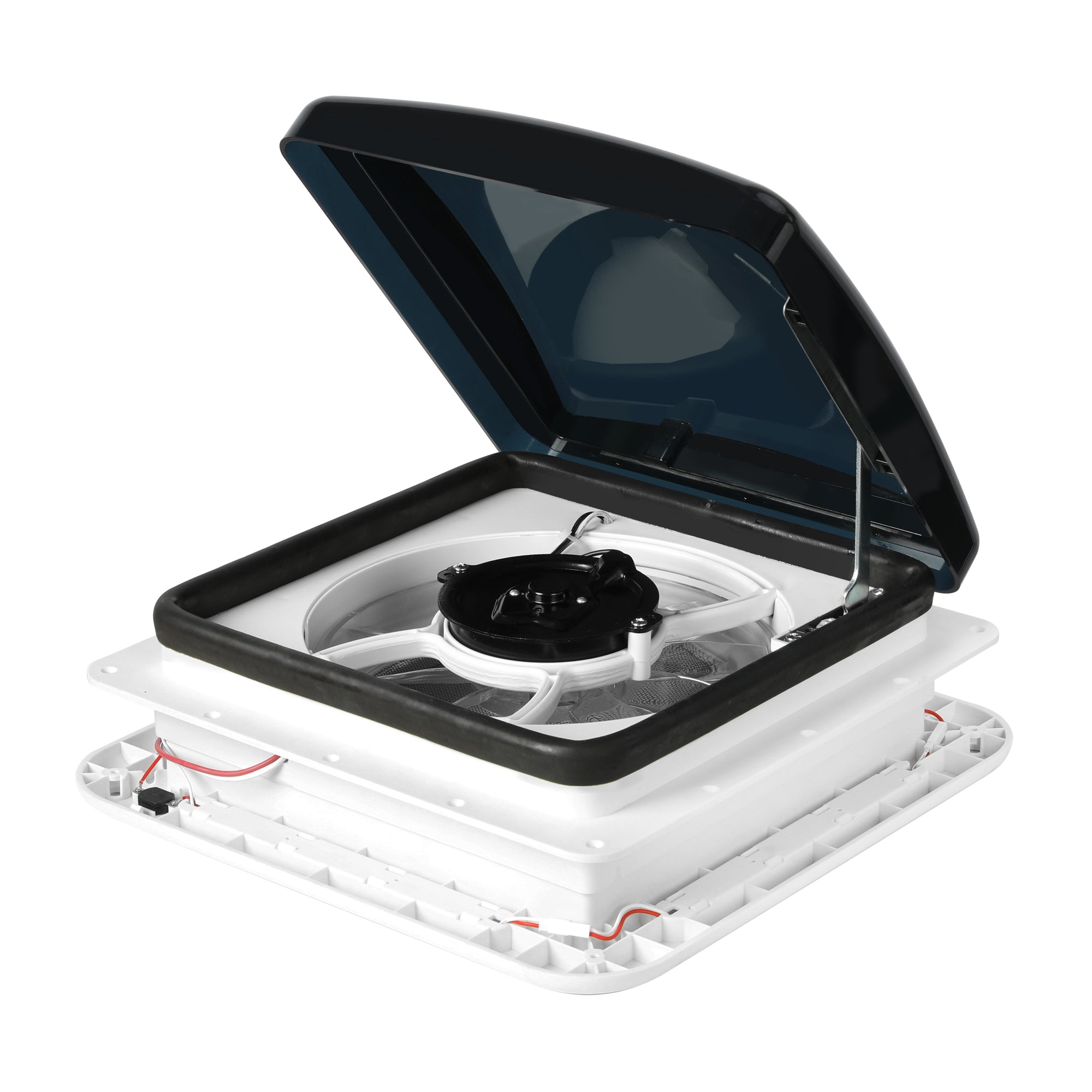

The Manan CAR1077 Caravan Roof Vent Hatch delivers powerful 12V DC ventilation and integrated LED lighting in a single, weatherproof rooftop unit. Measuring a standard 355 × 355 mm (14 × 14 inch) footprint, it fits most caravan, motorhome, and trailer roof cutouts straight out of the box. The reversible 3-speed fan actively draws fresh air in or expels stale, humid air out — making it ideal for shower rooms, sleeping areas, or any enclosed space that needs a reliable airflow solution on the road. A built-in 4-LED light bar provides warm interior illumination without the need for a separate fitting, keeping your install clean and your roof real estate free.

Built for Australian conditions, the CAR1077 suits full-time travellers, grey nomads, and weekend 4WD adventurers who need dependable ventilation in everything from coastal humidity to the dry heat of the outback. The stainless steel flyscreen keeps insects out while maintaining airflow, and the waterproof design means the fan can remain running even during light rain — a practical feature when you're camped up and can't predict the weather. Whether you're retrofitting an older van, kitting out a DIY camper trailer, or upgrading a tired OEM vent in your RV or motorhome, this unit offers a straightforward drop-in replacement that improves comfort and air quality wherever the road takes you.

Key Features

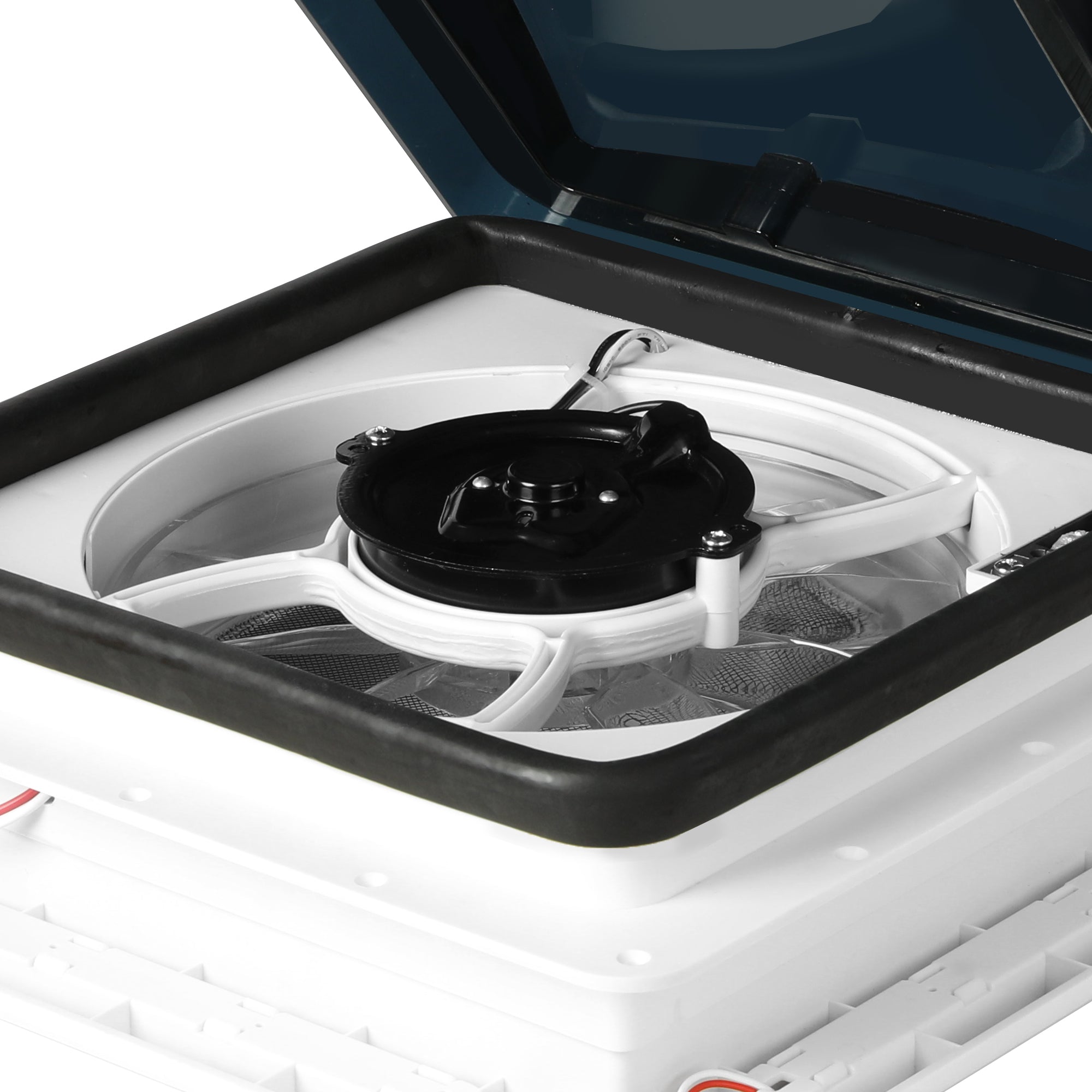

12V DC reversible fan with 3 selectable speed settings for intake or exhaust airflow
Built-in 4-LED light bar provides interior cabin lighting — no separate fitting required
Standard 355 × 355 mm footprint suits most caravan, RV, and trailer roof cutouts

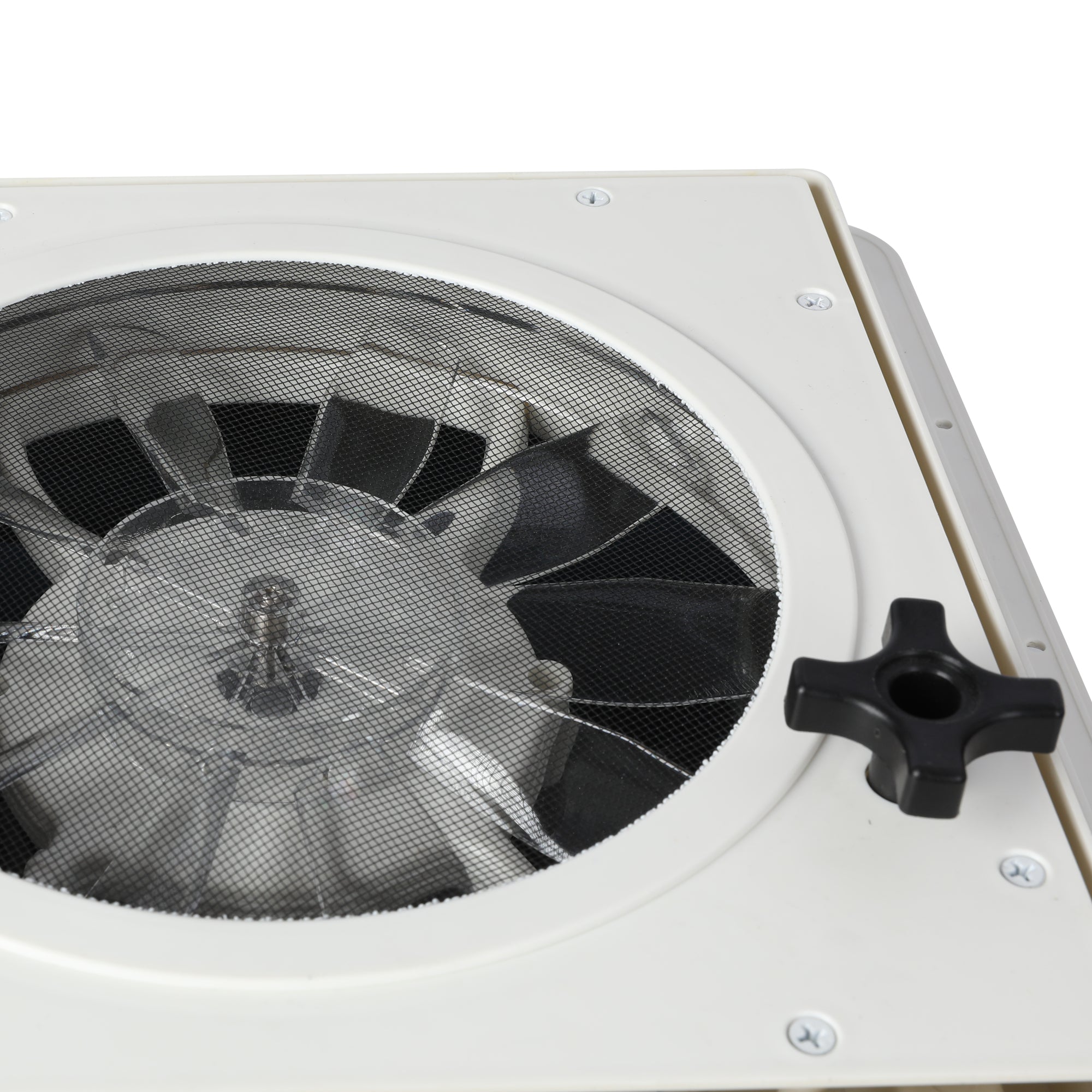

Stainless steel flyscreen keeps insects out while maintaining continuous airflow
Waterproof construction allows fan operation during rain without shutting down

Features

+

12V DC powered fan compatible with standard caravan and RV 12-volt systems
Reversible airflow — switch between intake (fresh air in) and exhaust (stale air out) modes

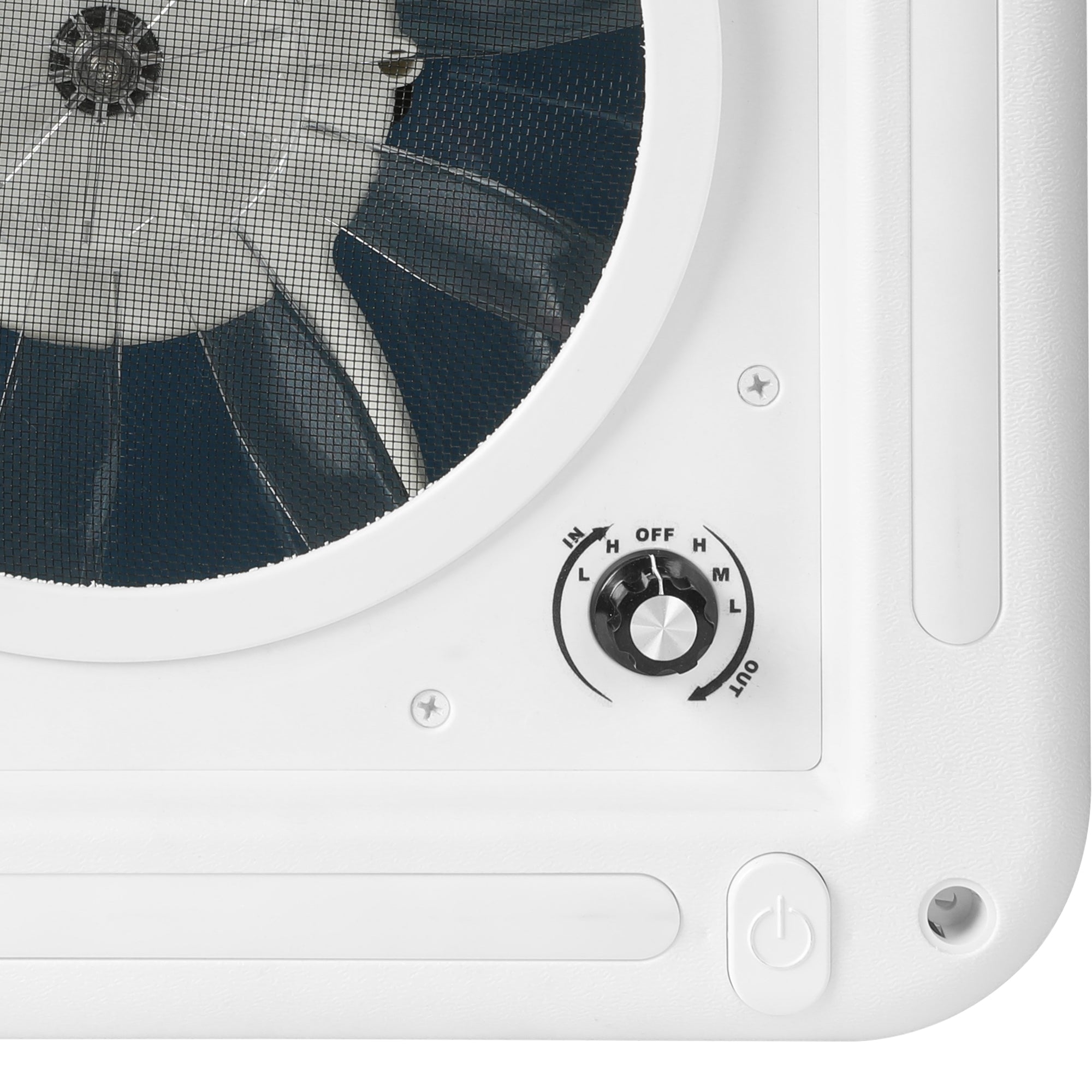

3-speed fan control for precise ventilation adjustment to suit conditions
Built-in 4-LED light bar delivers warm interior illumination integrated into the vent unit
Standard 355 × 355 mm (14 × 14 inch) roof cutout size for easy drop-in installation
Stainless steel flyscreen prevents insect entry while maintaining full airflow capacity
Waterproof housing and lid design permits fan use during light rain
Suitable for caravan shower rooms, sleeping quarters, kitchens, and utility areas

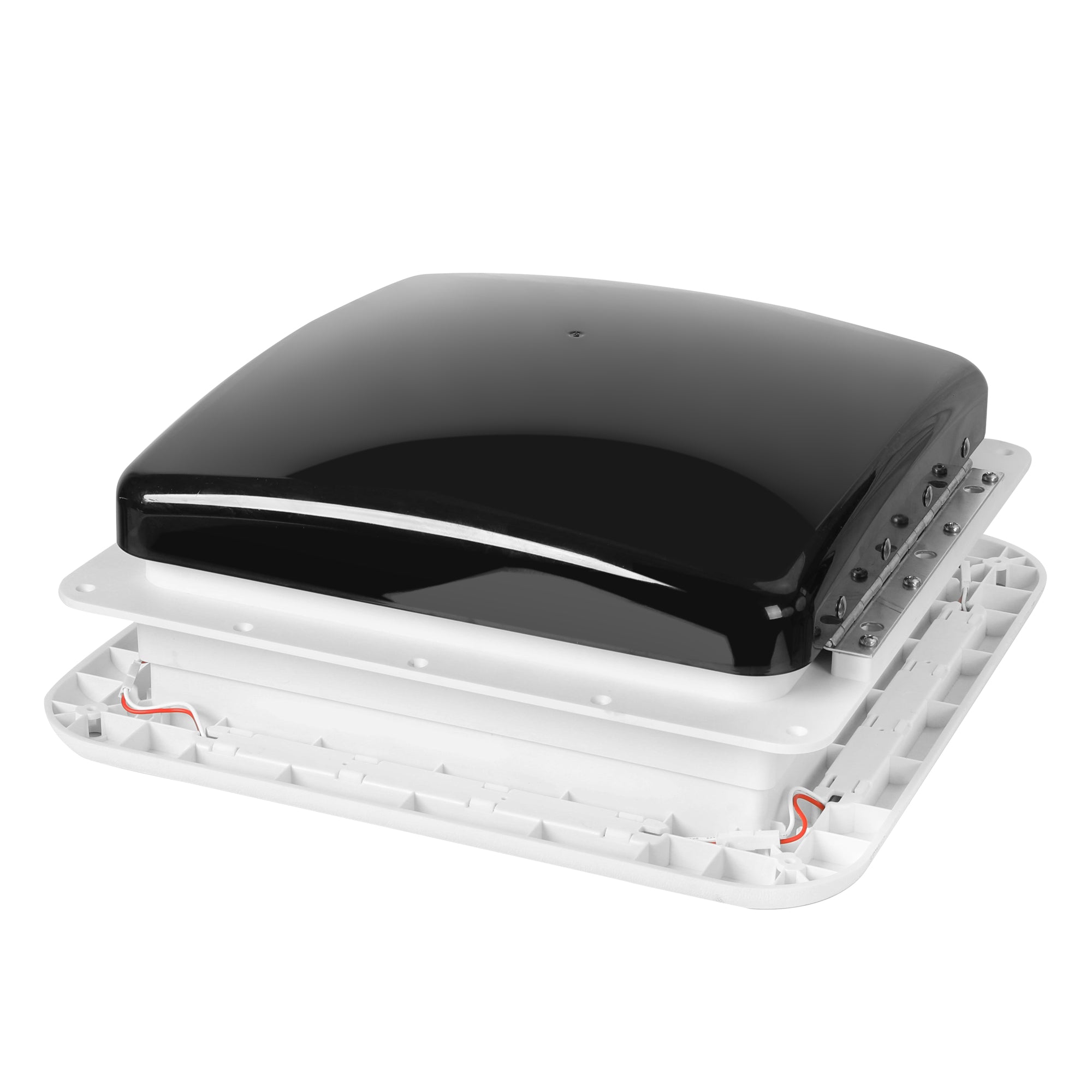

White UV-stabilised ABS lid with hinged opening for ventilation when stationary
Suitable for caravans, motorhomes, camper trailers, RVs, and 4WD canopies

Specifications

+

Model	CAR1077
Brand	Manan
Roof Cutout Size	355 × 355 mm (14 × 14 inch)

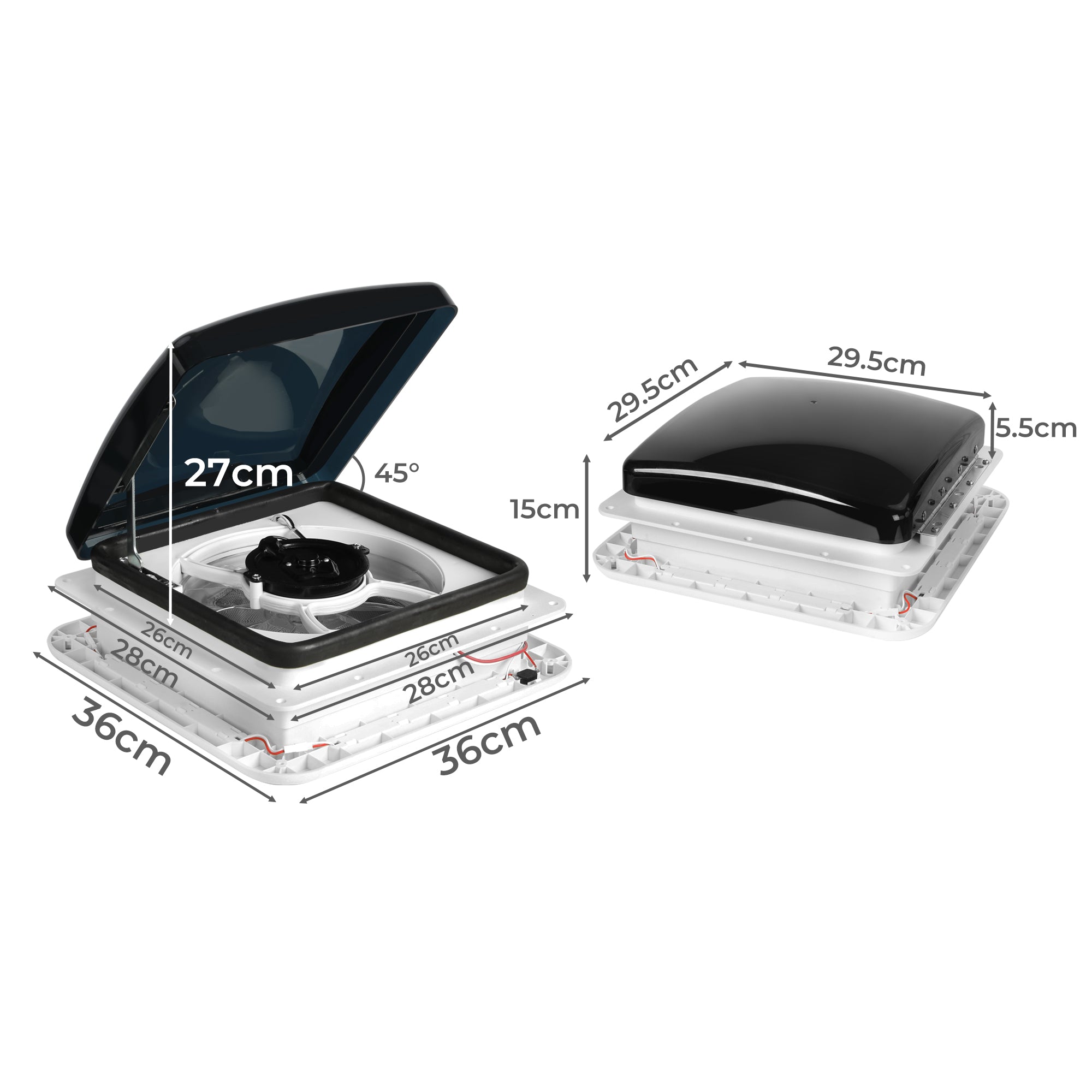

Overall Unit Dimensions	Approximately 400 × 400 mm (including flange)
Fan Voltage	12V DC
Fan Speeds	3 speeds (Low / Medium / High)
Airflow Direction	Reversible — intake or exhaust
Integrated Lighting	4 × LED light bar (built-in)
Flyscreen Material	Stainless steel mesh
Lid Material	UV-stabilised ABS plastic (white)
Waterproof Rating	Weatherproof — operable in light rain with lid closed
Mounting	Roof surface mount with sealant flange
Application	Caravan, motorhome, RV, camper trailer, 4WD canopy
Power Source	12V DC (corded electric)

Shipping & Returns

+

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

12-month manufacturer warranty against defects in materials and workmanship.

Common questions about Manan Caravan Roof Vent Hatch 355mm with 12V Fan and LED Light

Will it fit my existing roof hole?

If your old vent uses the standard 355 x 355 mm cutout, yes, and that is the size on most Australian vans. Measure the hole itself rather than the old flange, because the flange sits proud of the cutout by a fair margin and will mislead you.

Intake or exhaust, which way should I run it?

Exhaust in the shower and over the kitchen, pulling steam and cooking smells straight out. Intake at night in still weather, pushing cooler air in while you crack a window at the far end of the van. Being able to reverse it is what earns its keep.

Can I run it in the rain?

With the lid closed, yes, and that is how you clear shower steam on a wet afternoon. Airflow with the lid down is a fraction of what you get with it raised, so expect it to take considerably longer to shift the humidity out of the van.
