Key features
- 14,500LBS (6,575kg) maximum line pull on a single straight line

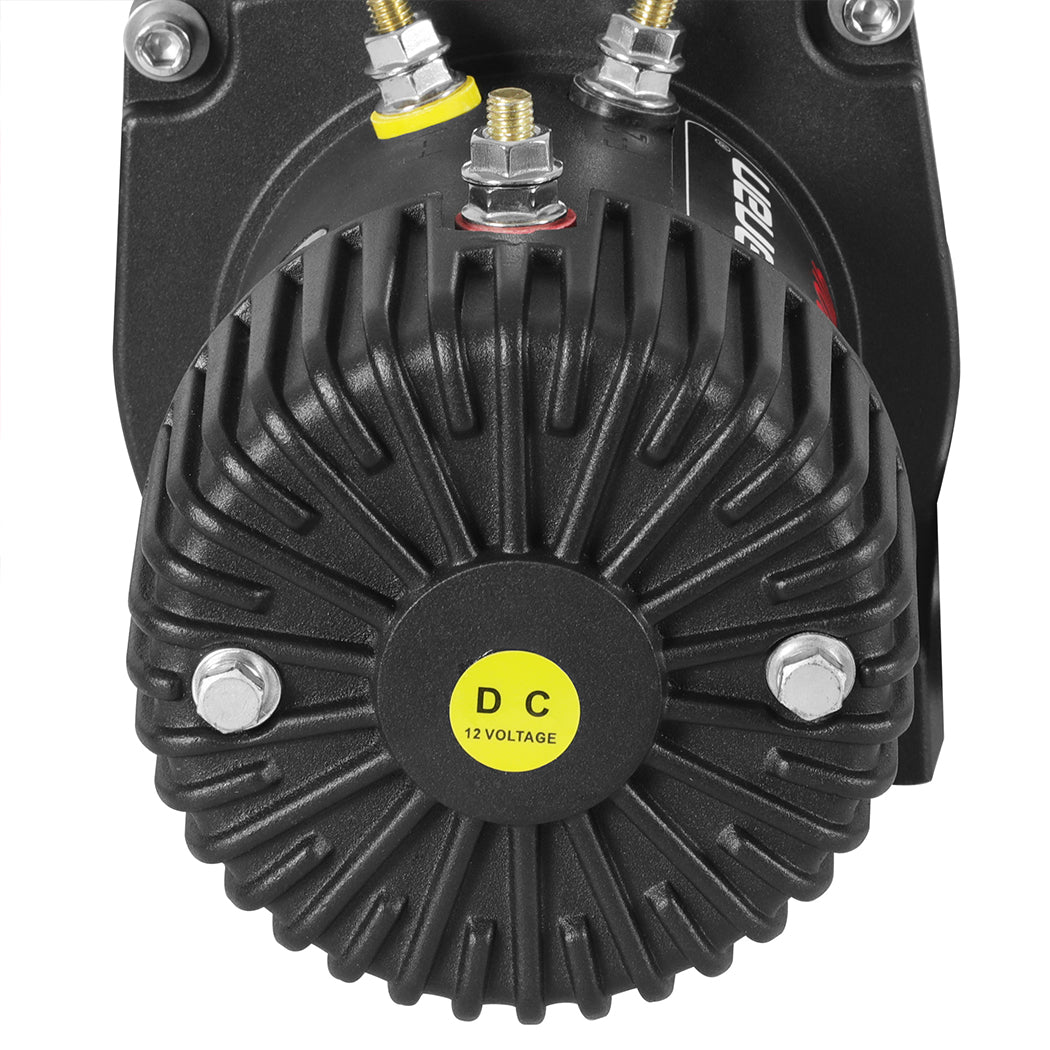

- High-torque 6.6kW series-wound 12V electric motor rated for continuous duty cycles
- Three-stage planetary gear system with 265:1 gear ratio for controlled, powerful extraction
- 28-metre galvanised steel wire rope, 10mm diameter, with a rated breaking strength exceeding the winch capacity

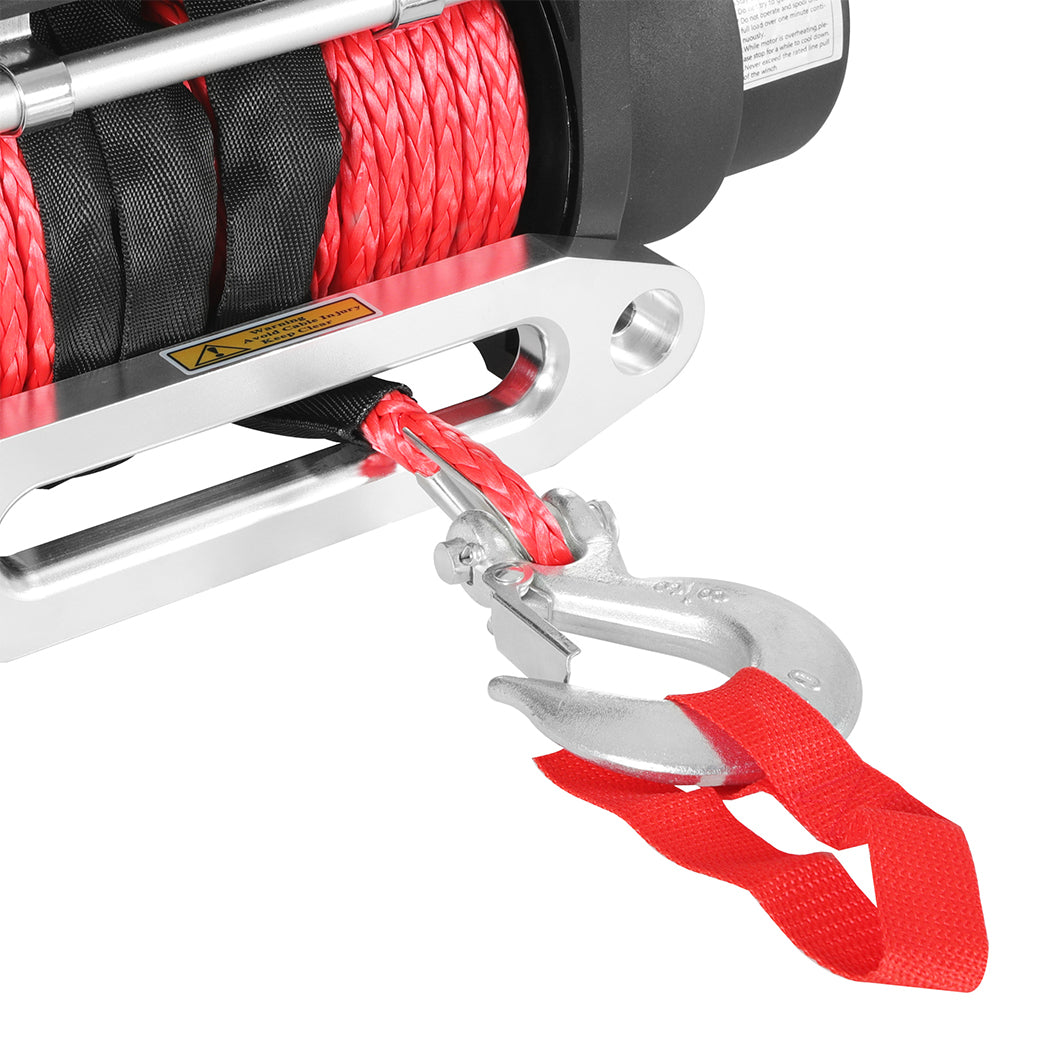

- Hawse fairlead with smooth aluminium frame for efficient cable feed and reduced wear
- Automatic load-holding brake engages instantly on power cut to prevent load rollback
- Wireless remote control handset for operation up to 15 metres from the vehicle — keeps operator clear of the rope
- 4.5-metre wired remote control included as reliable backup
- IP67-rated sealed motor housing resists water ingress, mud, and dust — suited to Australian off-road conditions
- Dynamic braking system for precise stopping and load control during recovery operations
Overview
The Manan 14500LB (6,575kg) 12V Electric Winch delivers serious pulling power for 4WD recovery, caravan setup, and off-road adventure. Powered by a high-torque 6.6kW series-wound motor drawing from your vehicle's 12V system, it handles loads up to 14,500LBS across a 28-metre galvanised steel wire rope — giving you the reach and grunt to tackle even the most demanding Australian terrain. The three-stage planetary gear system delivers a gear ratio of 265:1 for controlled, powerful extraction, while the automatic load-holding brake locks the load in place the moment you stop winching, preventing dangerous rollback.

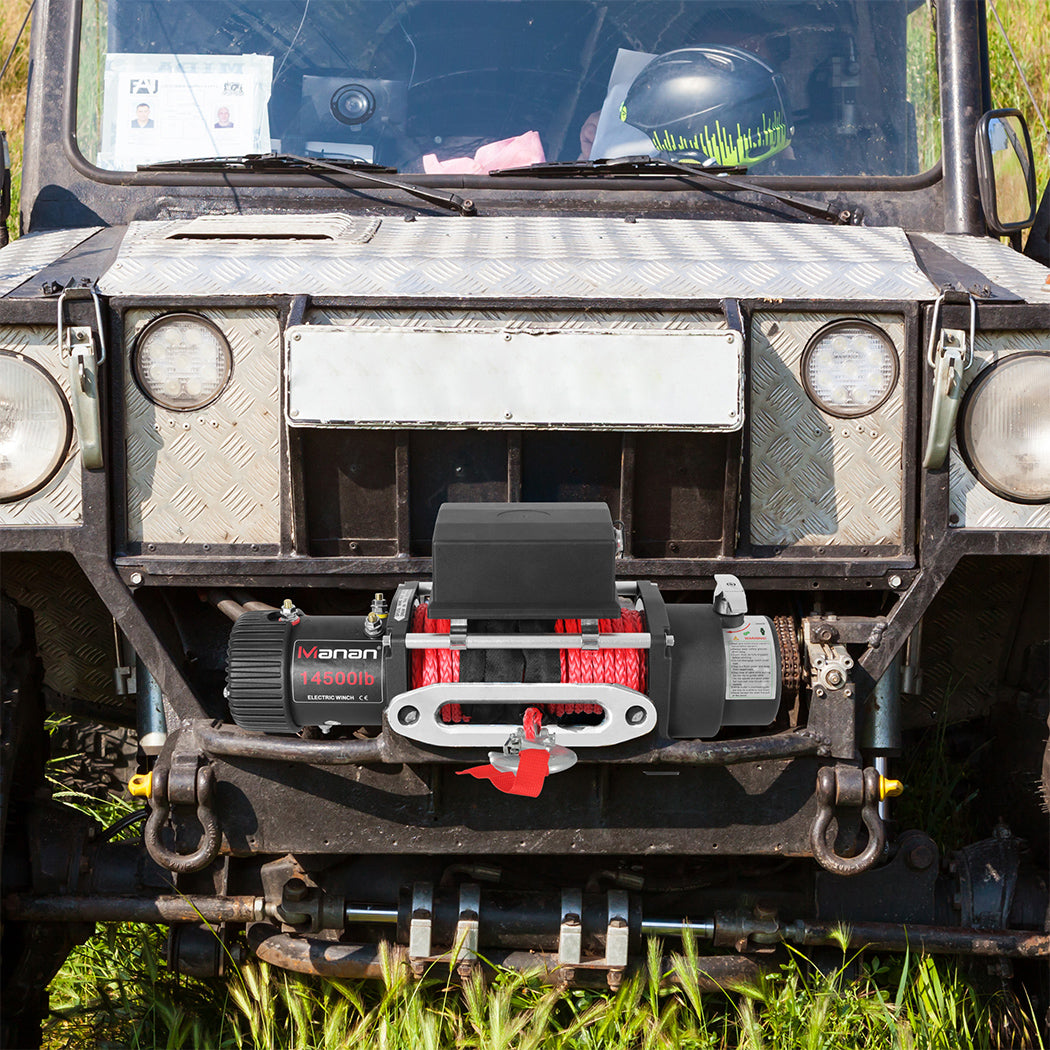

Designed for Australian caravanners, 4WD tourers, and off-road enthusiasts who venture beyond the bitumen, this winch suits bull bars on dual-cab utes, patrol wagons, and heavy-duty SUVs. Whether you're self-recovering from a bog on a Cape York track, repositioning a loaded caravan on a steep site, or assisting a fellow traveller on a remote outback run, the wireless handheld remote keeps you safely clear of the cable while you operate. A 4.5-metre wired remote is also included for reliable backup control, and the IP67-rated sealed motor ensures the unit shrugs off water, mud, and dust — right at home in harsh Australian conditions.
Key Features
- 14,500LBS (6,575kg) rated pulling capacity with 265:1 three-stage planetary gear ratio
- 6.6kW series-wound 12V motor with IP67-rated weatherproof sealed housing
- 28m galvanised steel wire rope with hawse fairlead for smooth cable layering

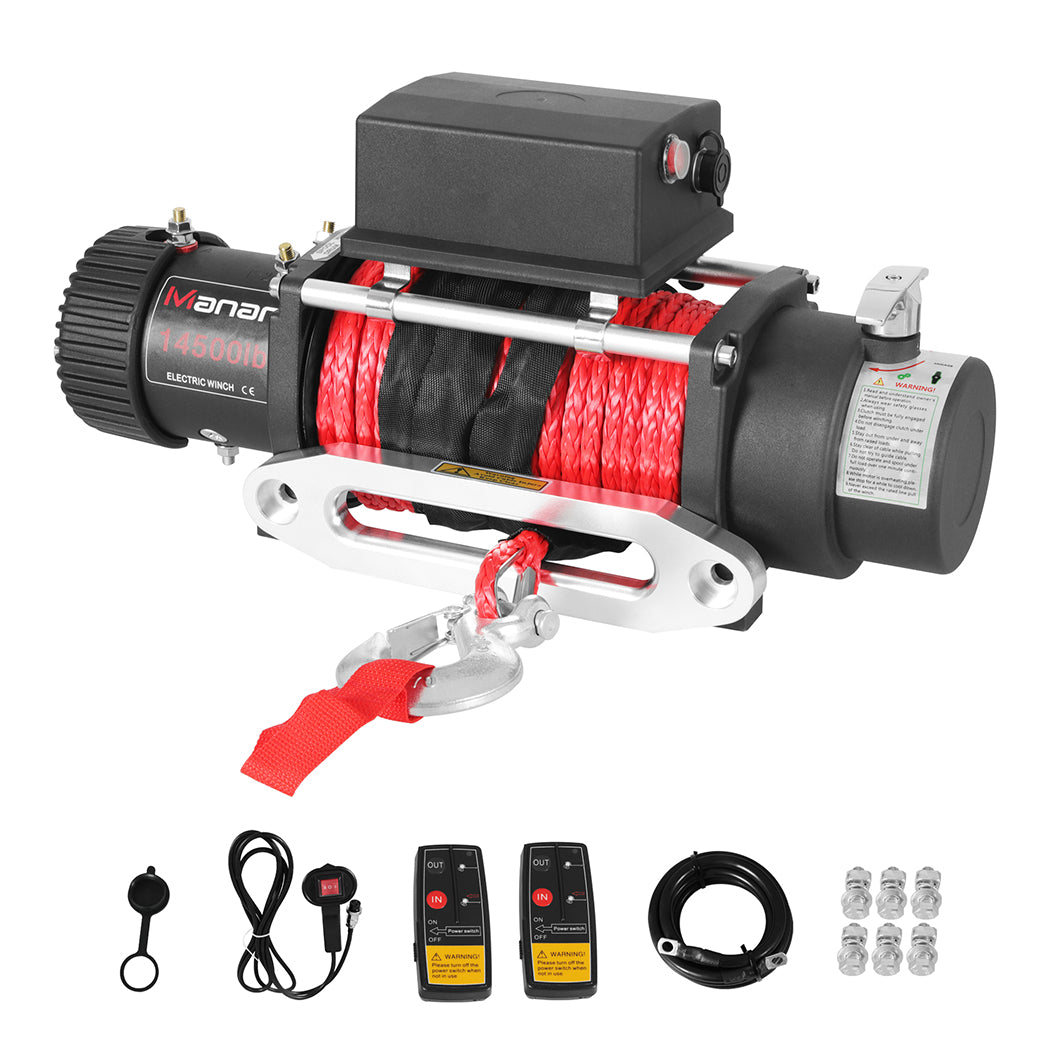

- Wireless handheld remote plus 4.5m wired remote included for flexible operation
- Automatic load-holding brake prevents rollback and locks load when winching stops
Common questions
Do I get the full 6,575kg on every pull?
Only on the bottom wrap of a bare drum. Every layer of rope that builds up increases the effective drum diameter and drops your pulling power. Spool most of the rope out for a heavy pull, or run a snatch block to double your line and get back onto the low layers.
Will my standard battery run it?
A 6.6kW motor is a huge draw on a 12V system, and a tired cranking battery is the usual reason a winch feels gutless. Run the engine while you winch, keep the terminals and earth strap clean, and plan on heavy cable and a healthy battery if you pull often.
Can I keep winching until the vehicle is out?
No. The motor heats quickly under sustained load, so work in short pulls with rests between them. Use the wireless handset so you can stand clear of the rope, lay a dampener over the line, and cut the load first by digging out and dropping tyre pressures.
Delivery, returns & warranty
Shipping & Returns
Shipping
Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:
- Our warehouse in Bendigo, Victoria
- Partner supplier warehouses on the East Coast
- Partner supplier warehouses on the West Coast
This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.
Important Shipping Notes:
- We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
- Depot pickup options may be available at reduced rates (contact us to discuss)
- Off-mainland deliveries require additional shipping fees (custom quoted)
- Missed deliveries may incur a redelivery fee set by the courier
- All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex
Returns
As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.
You can return items if:
- The product is faulty or not of merchantable quality
- The product is not fit for its intended purpose
- The product does not match the description
- You can present proof of purchase
For change of mind returns:
- Item must be in original condition with tags attached
- Must be returned within 30 days of purchase
- Original proof of purchase required
- Return shipping is at customer's expense
- Original delivery charges are non-refundable unless due to our error
Refunds will be processed within 10 business days of receiving and inspecting the return.
For full details, please refer to our:
Warranty Details
+
Warranty Details
+
- 12-month manufacturer warranty against defects in materials and workmanship.
Specifications
| Model | CAR1006-14500 |
|---|---|
| Brand | Manan |
| Rated Line Pull | 14,500LBS / 6,575kg |
| Motor Type | Series-wound, 12V DC |
| Motor Power | 6.6kW (8.8HP) |
| Gear Type | 3-stage planetary gear |
| Gear Ratio | 265:1 |
| Wire Rope Length | 28 metres |
| Wire Rope Diameter | 10mm galvanised steel |
| Fairlead Type | Hawse fairlead (aluminium) |
| Remote Control | Wireless handheld + 4.5m wired remote (both included) |
| Wireless Range | Up to 15 metres |
| Ingress Protection | IP67 (motor and control box) |
| Voltage | 12V DC |
| Mounting Pattern | Standard 10-bolt universal mounting plate |
-
