Overview
The Deutsch DT Series 2-pin 117-piece connector kit delivers industry-proven waterproof electrical connections purpose-built for the harsh demands of automotive, marine, caravan, and off-road 4WD applications. Built to the globally recognised DT connector standard originally engineered by TE Connectivity Deutsch, each plug and socket features a robust thermoplastic shell rated to IP67, sealing against dust, moisture, mud, and water immersion — critical when tackling Australian conditions from coastal salt air to outback red dust. The kit bundles 117 individual components including DT04-2P male plugs, DT06-2S female sockets, solid wedgelocks, and gold-plated stamped contacts with integral silicone seals, all rated for continuous operation between -40 °C and +125 °C and up to 13 amps per contact at 12–24 V DC.
Whether you're wiring auxiliary lights, a dual-battery system, electric brakes, a water pump, or any accessory on a caravan, camper trailer, motorhome, or 4WD, this kit gives you everything needed to create neat, vibration-resistant, pull-proof connections that won't corrode or loosen on corrugated outback tracks. The positive-latch design locks the plug and socket together until deliberately released, preventing accidental disconnection from vibration or snagged cables — a common failure point on touring rigs. With 117 components across plugs, sockets, contacts, seals, and wedgelocks all packed together, this is the ideal starter or top-up kit for DIY vehicle electricians, camper-trailer builders, and anyone fitting aftermarket 12V accessories to a tow vehicle or RV.
Key Features
- IP67-rated waterproof shell — sealed against dust, mud, and water immersion for reliable 12V connections in all Australian conditions

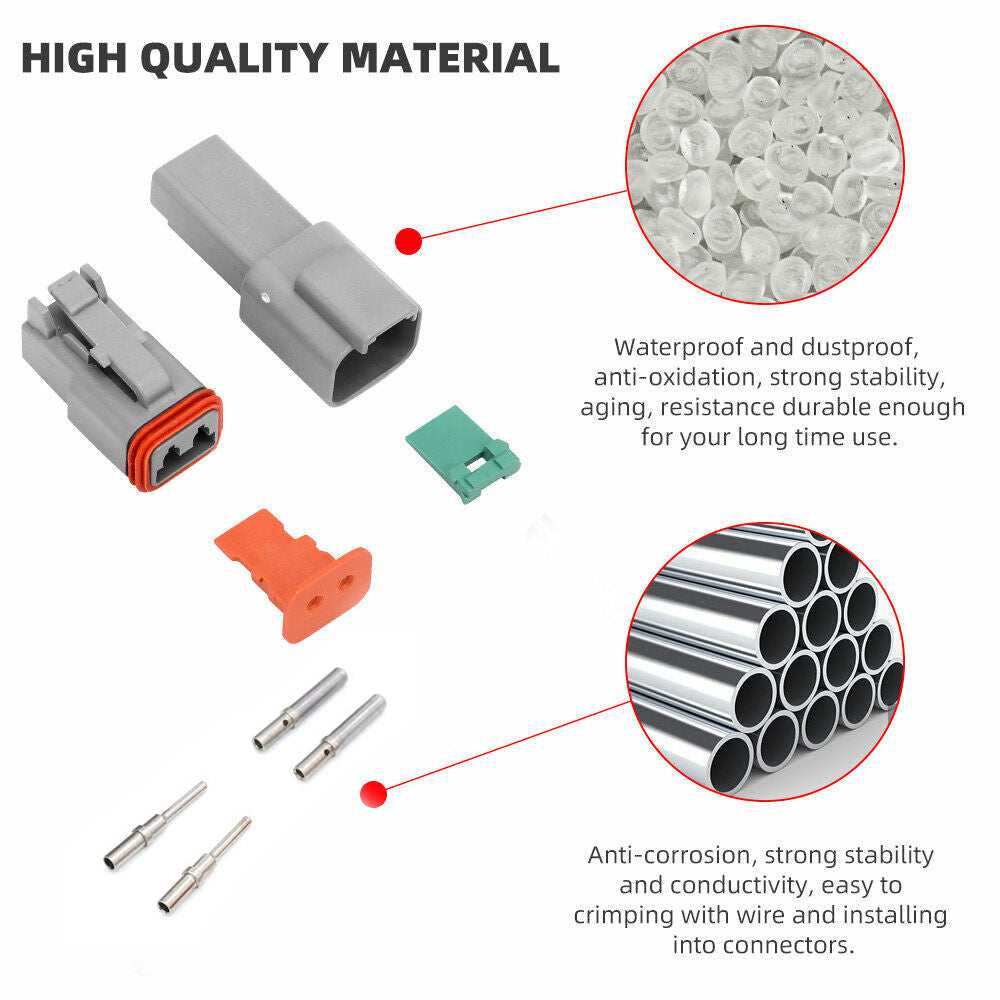

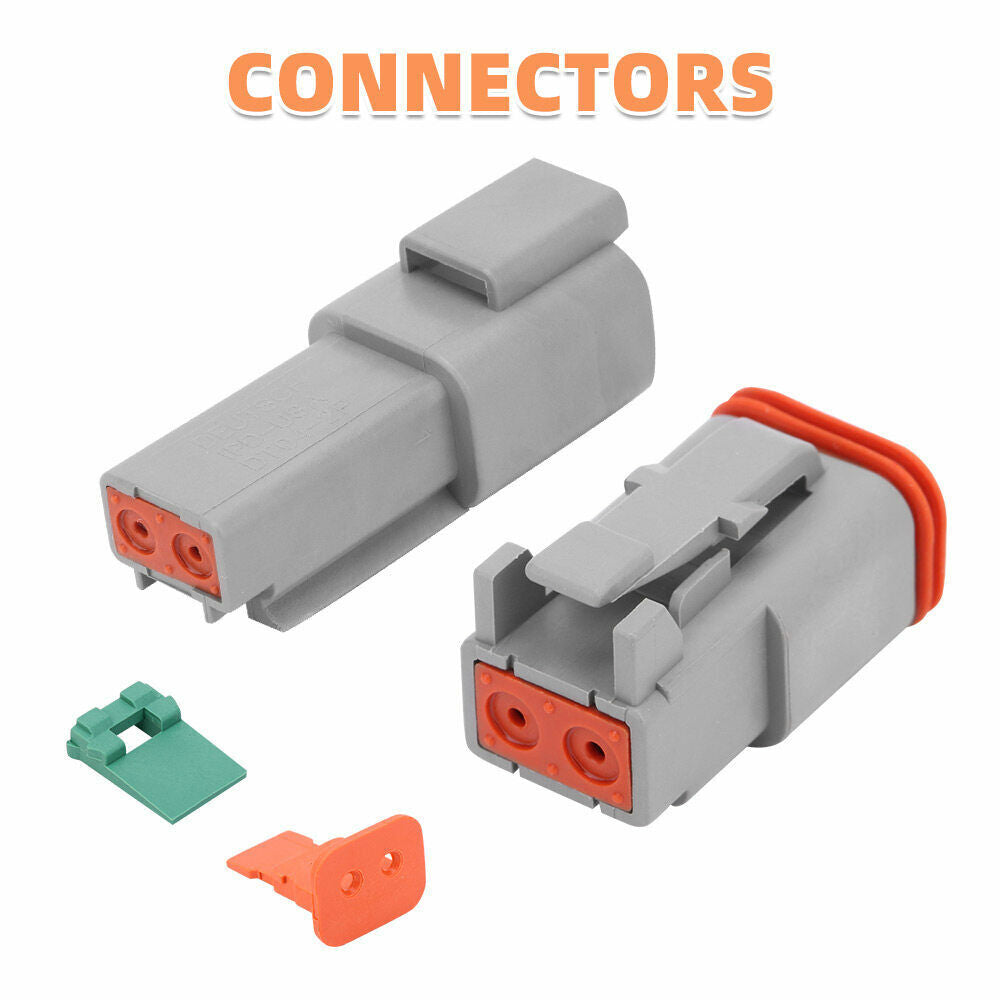

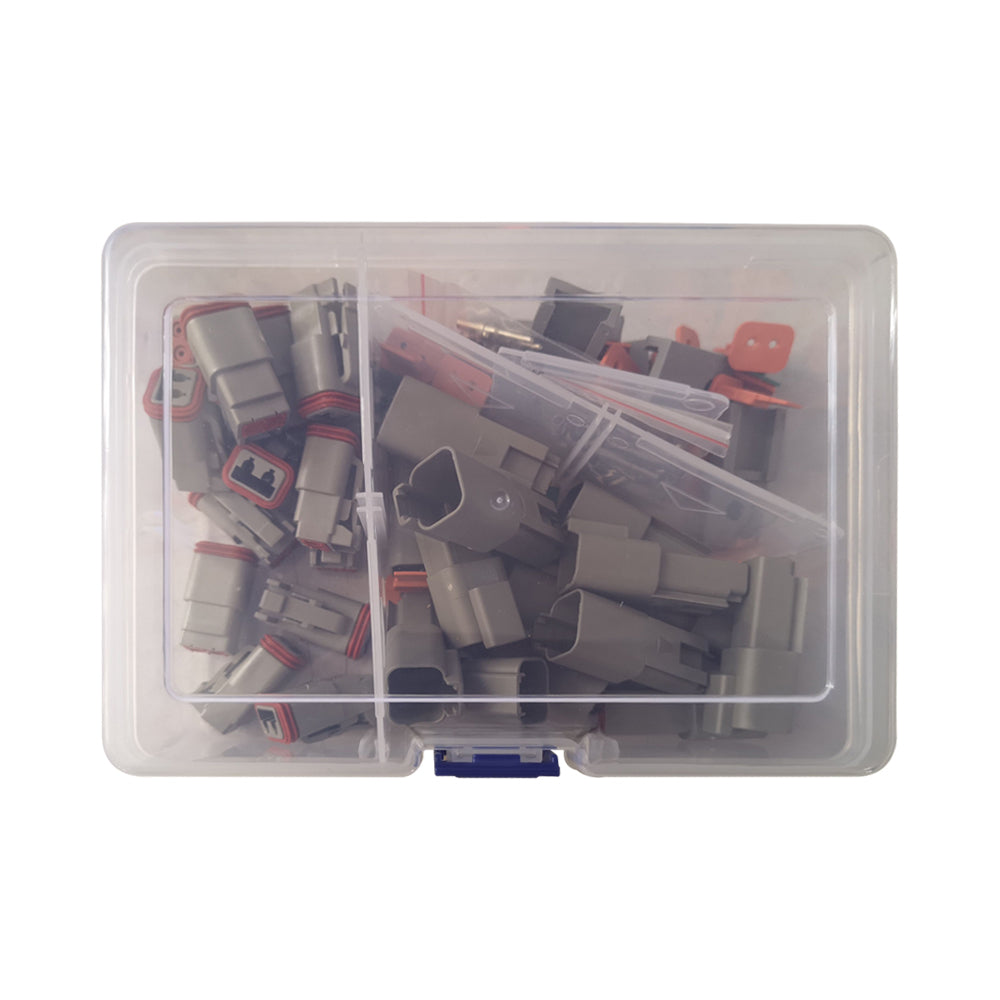

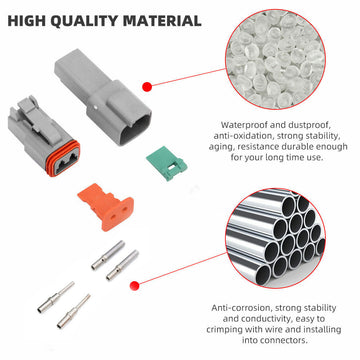

- 117-piece kit includes DT04-2P male plugs, DT06-2S female sockets, wedgelocks, gold-plated contacts, and silicone wire seals
- Positive-latch locking mechanism prevents accidental disconnection from vibration on corrugated outback roads
- Rated -40 °C to +125 °C operating temperature and up to 13 A per contact at 12–24 V DC
- Compatible with DT Series accessories and industry-standard Deutsch tooling for a secure, professional crimp termination
Common questions
Do I need a special tool, or can I crimp these with pliers?
A proper Deutsch-style crimper, yes. These contacts rely on a controlled crimp profile to grip and seal, and pliers give you a joint that passes a tug test in the shed then fails on corrugations months later. The tool is not in the kit.
Is IP67 enough for a connector that gets dunked at the boat ramp?
For a ramp dunking, yes, provided you seal both ends. The rating assumes the wedgelock is clicked fully home and no cavity is left open. Sloppy crimps and an unsealed wire entry undo it faster than any amount of water pressure ever will.
Is 117 pieces more than one vehicle build needs?
Usually, and that is the point. These get used a few at a time across a build, so a kit in the drawer means you are not driving to town mid-job. Two-pin handles lights, sensors and switches, but anything multi-circuit needs a larger DT series.
Delivery, returns & warranty
Shipping & Returns
Shipping
Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:
- Our warehouse in Bendigo, Victoria
- Partner supplier warehouses on the East Coast
- Partner supplier warehouses on the West Coast
This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.
Important Shipping Notes:
- We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
- Depot pickup options may be available at reduced rates (contact us to discuss)
- Off-mainland deliveries require additional shipping fees (custom quoted)
- Missed deliveries may incur a redelivery fee set by the courier
- All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex
Returns
As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.
You can return items if:
- The product is faulty or not of merchantable quality
- The product is not fit for its intended purpose
- The product does not match the description
- You can present proof of purchase
For change of mind returns:
- Item must be in original condition with tags attached
- Must be returned within 30 days of purchase
- Original proof of purchase required
- Return shipping is at customer's expense
- Original delivery charges are non-refundable unless due to our error
Refunds will be processed within 10 business days of receiving and inspecting the return.
For full details, please refer to our:
Warranty Details
+
Warranty Details
+
Customer reviews
No reviews for the Deutsch DT Series 2-pin connector kit, 117 pieces, waterproof IP67 yet. Be the first.
Specifications
| Kit Part Count | 117 pieces |
|---|---|
| Connector Series | Deutsch DT Series (2-way / 2-pin) |

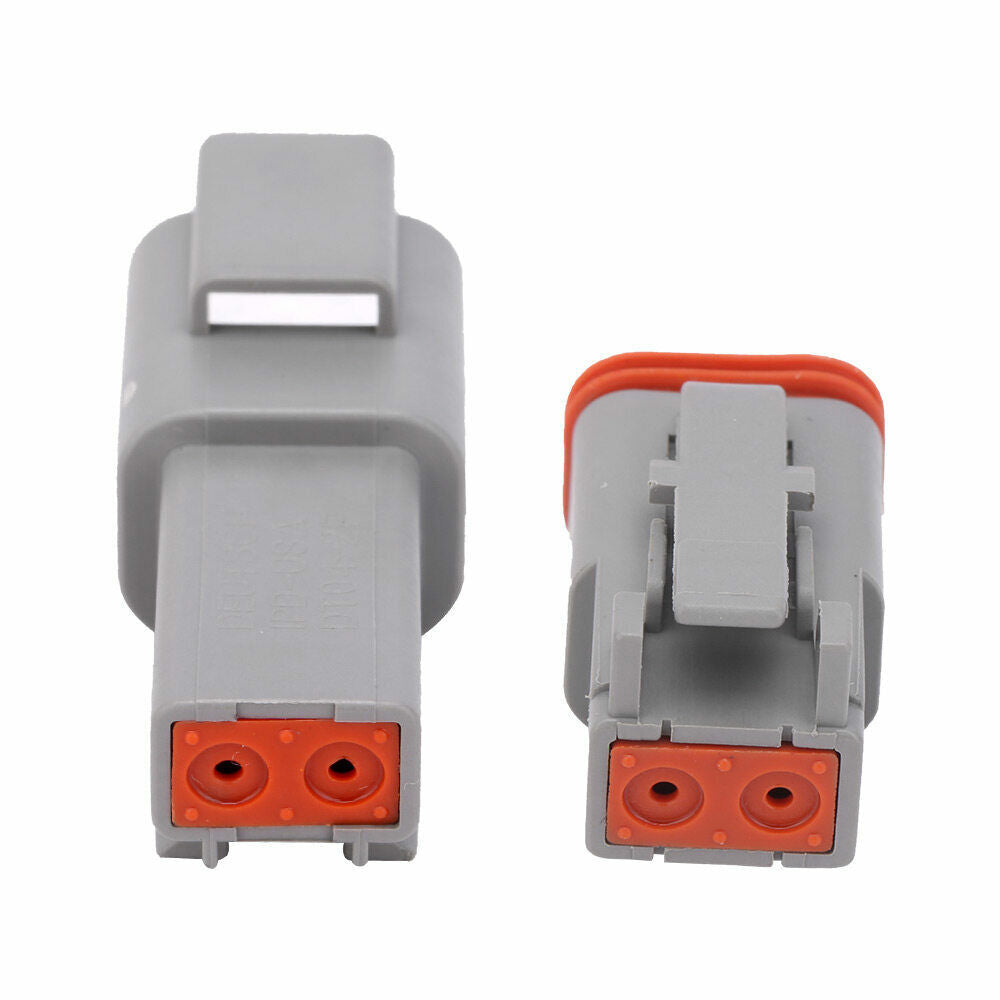

| Male Plug Part No. | DT04-2P |
| Female Socket Part No. | DT06-2S |
| Ingress Protection Rating | IP67 (dust-tight, waterproof to 1 m immersion) |
| Operating Temperature | -40 °C to +125 °C |
| Current Rating (per contact) | 13 A continuous |
| Voltage Rating | 12 V – 24 V DC (up to 1,000 V AC dielectric) |
| Contact Material | Gold-plated stamped copper alloy |
| Shell Material | Glass-filled thermoplastic (black) |
| Wire Seal Range | 0.8 mm² – 2.0 mm² (AWG 20 – 14) |
| Contact Termination | Crimp (Deutsch crimp tool required) |

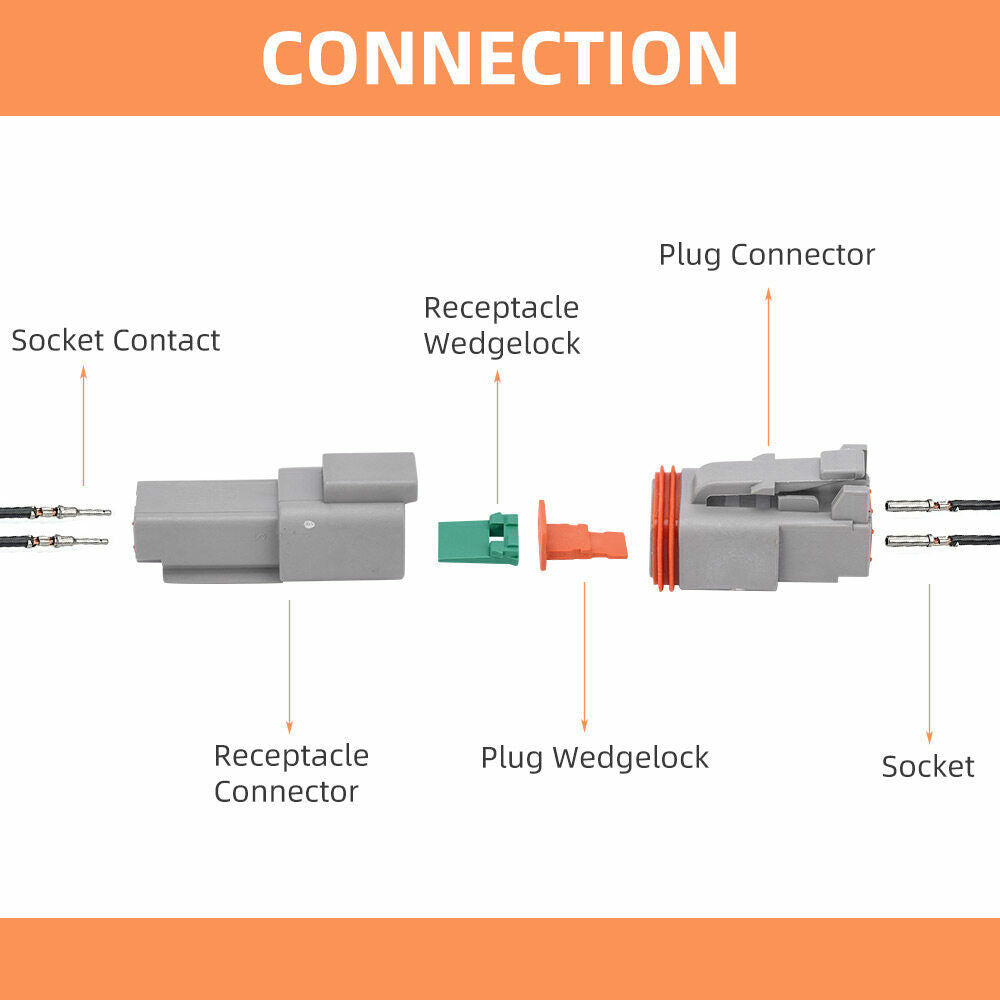

| Locking Mechanism | Positive-latch with wedgelock secondary lock |
| Applications | Automotive, caravan, camper trailer, 4WD, marine, RV, motorhome |
| Kit Contents | DT04-2P plugs, DT06-2S sockets, wedgelocks, gold contacts, silicone wire seals |
