Key features

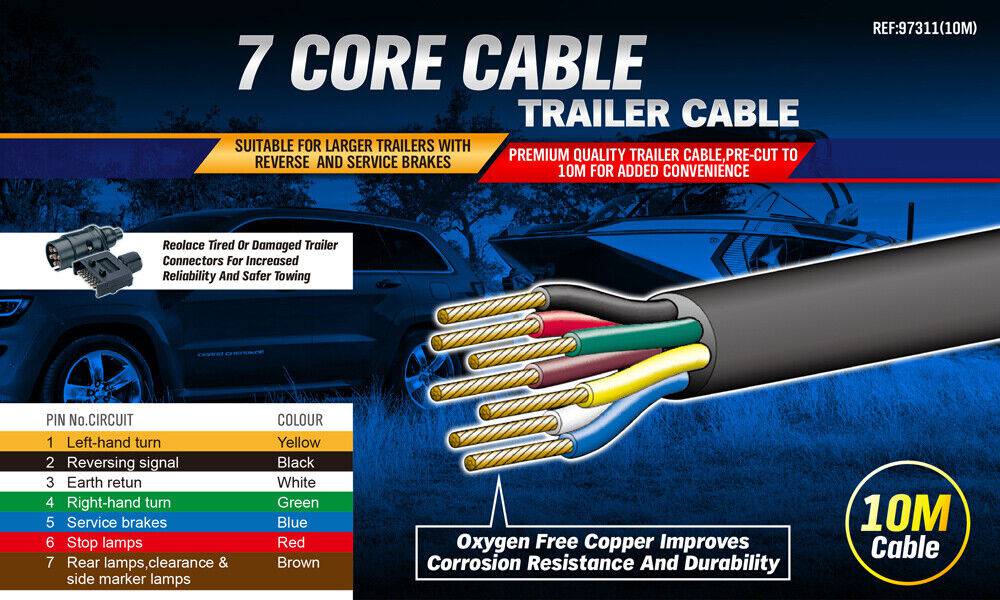

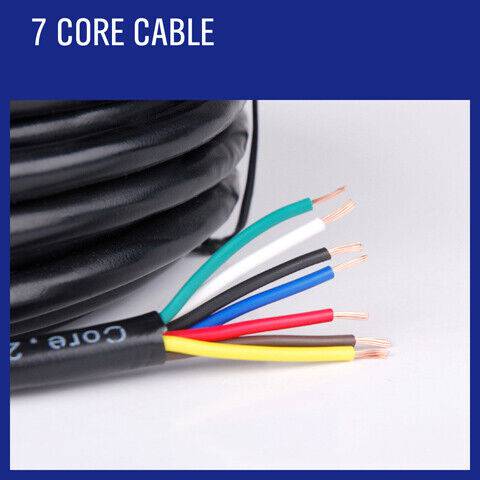

- 7 individually colour-coded conductors — Black, Red, Green, Yellow, Blue, White, Brown for standard Australian trailer wiring
- V90-rated PVC outer sheath rated to 90°C for high-temperature and UV resistance in Australian conditions
- Heavy-duty PVC insulation on each core provides mechanical protection and prevents chafing

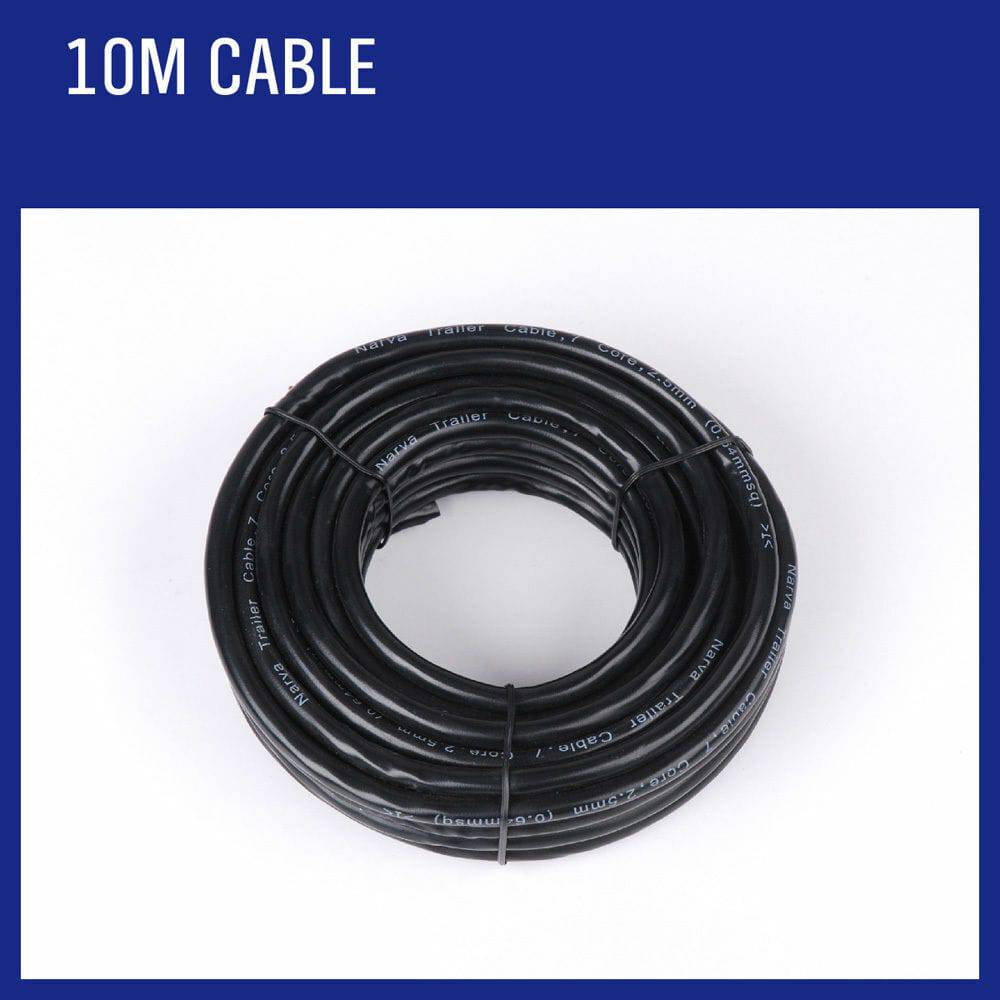

- 10-metre coil length suitable for full-length caravan and trailer harness rewires without splicing

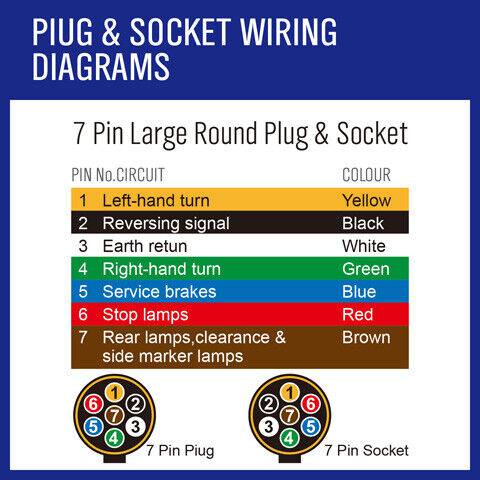

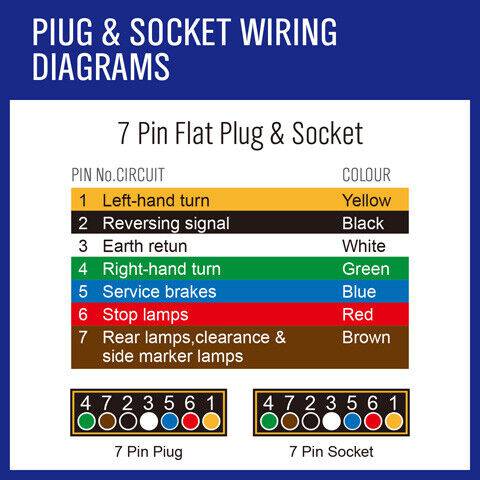

- Compatible with 7-pin flat and 7-pin round trailer plug configurations used across Australian vehicles
- Oxygen-free copper conductors for low resistance and superior conductivity across all lighting and signal circuits
- Suitable for use in automotive, marine, caravan, horse float, truck, and boat trailer applications
- Designed for DIY installation — cores follow Australian standard colour-coding for indicators, brakes, tail, reverse, and auxiliary
- Flexible PVC sheath maintains pliability in cold conditions, reducing cracking risk when coiled during storage
- Meets Australian V90 wiring standard for use in road-registered trailers and caravans
Overview
The Offroad Living 10M 7 Core Trailer Cable is a heavy-duty wiring solution built to Australian electrical standards, featuring a V90-rated PVC outer sheath for superior heat, oil, and abrasion resistance. Each of the seven individually colour-coded copper conductors is insulated and bundled within a robust black PVC jacket, ensuring reliable electrical continuity across every trailer lighting and signalling circuit — from indicators and brake lights to tail lights, reverse, and auxiliary functions. The 10-metre coil provides enough length to neatly run wiring from your tow vehicle to even the longest caravans or trailers without the need for joins or extensions.
Designed for Australian caravanners, 4WD tourers, boat owners, and tradespeople who demand dependable connections on the road and off it, this trailer cable suits everything from family camper trailers and off-road caravans to horse floats, enclosed car trailers, and work trucks. Whether you're rewiring a tired harness before a big lap of Australia, setting up a new trailer build, or replacing a damaged section on your camper trailer before heading bush, the 10M coil gives you flexibility to cut exactly what you need. Compatible with standard 7-pin flat and round trailer plug configurations widely used across Australia.
Key Features
- 7 individual colour-coded copper conductors for easy, error-free circuit identification
- V90-rated PVC outer sheath — resistant to heat, oil, UV, and abrasion in harsh Australian conditions
- 10-metre coil length — sufficient for full trailer rewires without joins or extensions
- Compatible with 7-pin flat and round trailer plugs standard across Australian caravans and trailers
- Dual-layer PVC insulation on each core for added mechanical protection and electrical reliability
Common questions
Is 10 metres enough for a full trailer rewire?
For a box trailer or a small boat trailer, yes, with a bit spare. On a long tandem caravan you will be splicing before you reach the tail lights, and every splice in a wet underbody is a future fault. Measure the run first, then add slack.
Can I run electric brakes through one of these cores?
Not on this one. At around 5A per core it suits lighting and signalling circuits, which is what the seven cores are laid out for. Electric brakes and battery charging want their own heavier cable run, sized for the load and the distance.
What kills trailer wiring fastest in Australia?
Water sitting in a join, not the cable itself. Salt at the ramp and bulldust on the tracks both work their way into crimps. Run the cable inside a chassis rail where you can, seal every join with heatshrink, and keep the plug off the ground.
Delivery, returns & warranty
Shipping & Returns
Shipping
Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:
- Our warehouse in Bendigo, Victoria
- Partner supplier warehouses on the East Coast
- Partner supplier warehouses on the West Coast
This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.
Important Shipping Notes:
- We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
- Depot pickup options may be available at reduced rates (contact us to discuss)
- Off-mainland deliveries require additional shipping fees (custom quoted)
- Missed deliveries may incur a redelivery fee set by the courier
- All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex
Returns
As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.
You can return items if:
- The product is faulty or not of merchantable quality
- The product is not fit for its intended purpose
- The product does not match the description
- You can present proof of purchase
For change of mind returns:
- Item must be in original condition with tags attached
- Must be returned within 30 days of purchase
- Original proof of purchase required
- Return shipping is at customer's expense
- Original delivery charges are non-refundable unless due to our error
Refunds will be processed within 10 business days of receiving and inspecting the return.
For full details, please refer to our:
Warranty Details
+
Warranty Details
+
- 12-month manufacturer warranty against defects in materials and workmanship.
Specifications
| Cable Length | 10 metres |
|---|---|
| Number of Cores | 7 |
| Insulation Rating | V90 PVC (rated to 90°C) |
| Conductor Material | Copper (oxygen-free) |
| Outer Sheath Material | V90 PVC — UV, oil, and heat resistant |
| Conductor Colours | Black, Red, Green, Yellow, Blue, White, Brown |
| Conductor Cross Section | Approx. 0.64 mm² per core |
| Current Rating (per core) | Up to 5A (per standard 2.5mm 7-core spec) |
| Compatible Connectors | 7-pin flat, 7-pin round trailer plugs |
| Applications | Caravan, trailer, boat, horse float, truck, automotive |
| Format | Coil |
| Sheath Colour | Black |
| Standard | V90 Australian wiring standard |
| SKU | V465-97311 |
| Brand | Off Road Living |
